  • 640 x 512 thermal camera, 8-14 μm, 50 Hz, GigE

Rendered illustration: the actual product may differ in appearance.

Infrared cameras

640 x 512 thermal camera, 8-14 μm, 50 Hz, GigE (LS-IRC-0045)

Model LS-IRC-0045

  • Resolution640x512
  • SensorUncooled VOx Detector
  • InterfaceGigE
  • Speed50 fps
  • Lens mountC-mount
  • Pixel size17 μm
$6,100.00

Ships in 3-4 weeks

2.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

640 x 512 thermal camera, 8-14 μm, 50 Hz, GigE (LS-IRC-0045)LS-IRC-0045

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Thermal camera for non-contact temperature measurement and process monitoring. Uncooled VOx detector; 640 x 512 pixels of 17 μm; up to 50 Hz; GigE interface; C-mount lens mount; spectral range 8000-14000 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-IRC-0045
Spectral range8000-14000 nm
NETD<50 mk(F1.0, 30 °C)
Response Time<10 ms
Image ProcessingSupports Brightness, Sharpness, Gamma Correction
FOV88.5° × 73.2°

Optics

Lens focal length6.3 ¹
M.O.D0.6m
Aperture1.0

Sensor and imaging

Max. frame rate50 fps
Resolution640x512
Pixel size17 μm
Sensor typeUncooled VOx Detector
Pixel formatMono 16/32, YUV422

Interfaces and I/O

Data interfaceGigE
Digital I/OOpto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Light

Pseudo-color ModeWhite Hot, Black Hot, Fusion 1, Rainbow,Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot

Environment and compliance

CertificationGigE Vision,GenICam
Temperature range-20 °C -150 °C /0 °C -550 °C
Temperature AccuracyMax (±2 °C / ±2% of reading)
Temperature DistanceUp to 5 m (@target size 0.1 × 0.1 m2)
Operating temperature-20- 50°C(Working) -30~70 °C(Storage)

Computing

Operating systemWindows/Linux

Electrical

Power supplyDC 9-24 V
Power consumption12 V @2.8 W

Mechanical

Lens mountC-Mount

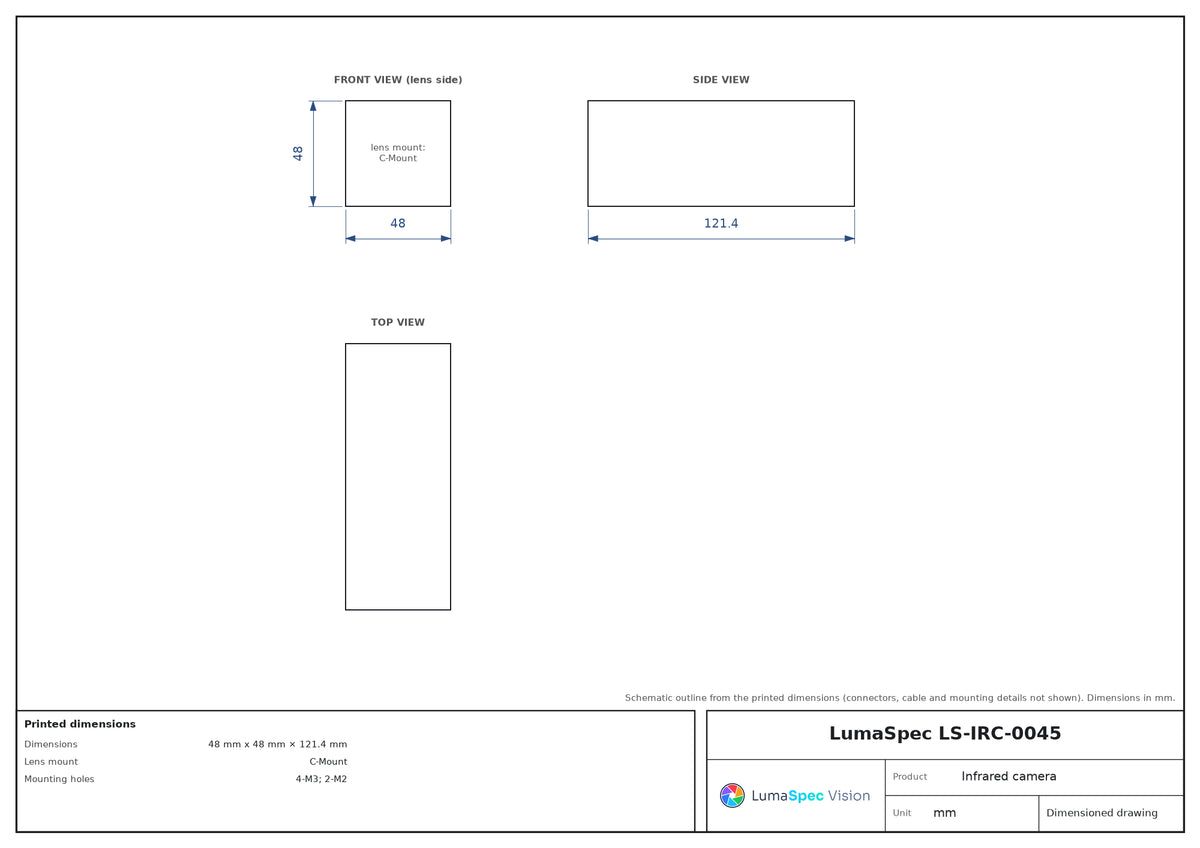

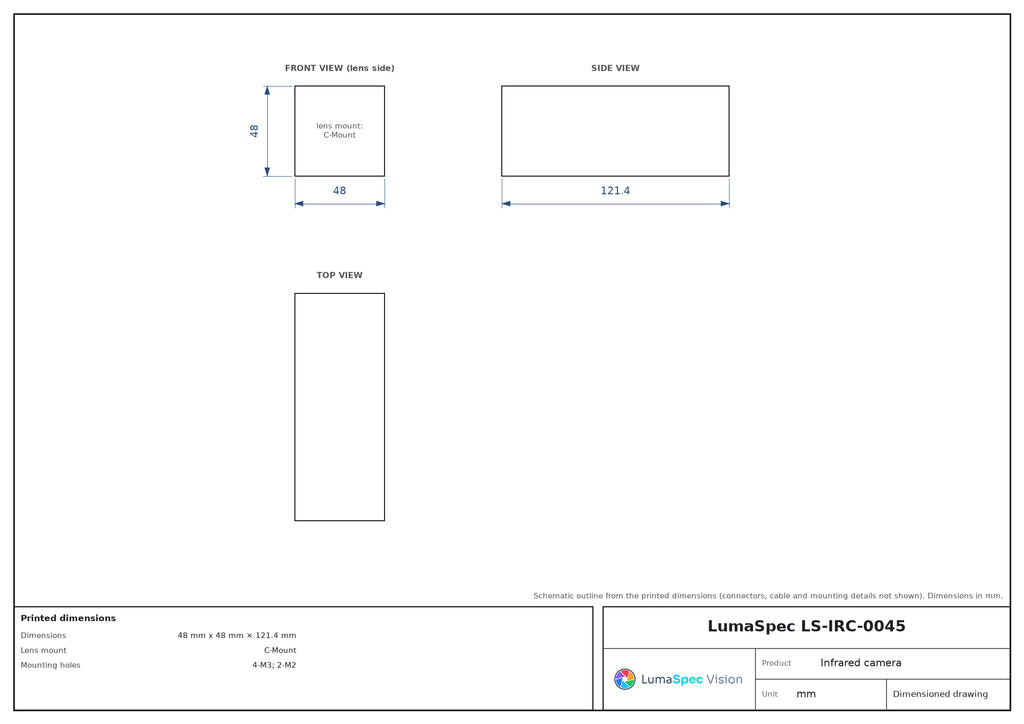

Dimensions48 mm x 48 mm × 121.4 mm
Weight370g
Mounting holes4-M3; 2-M2
