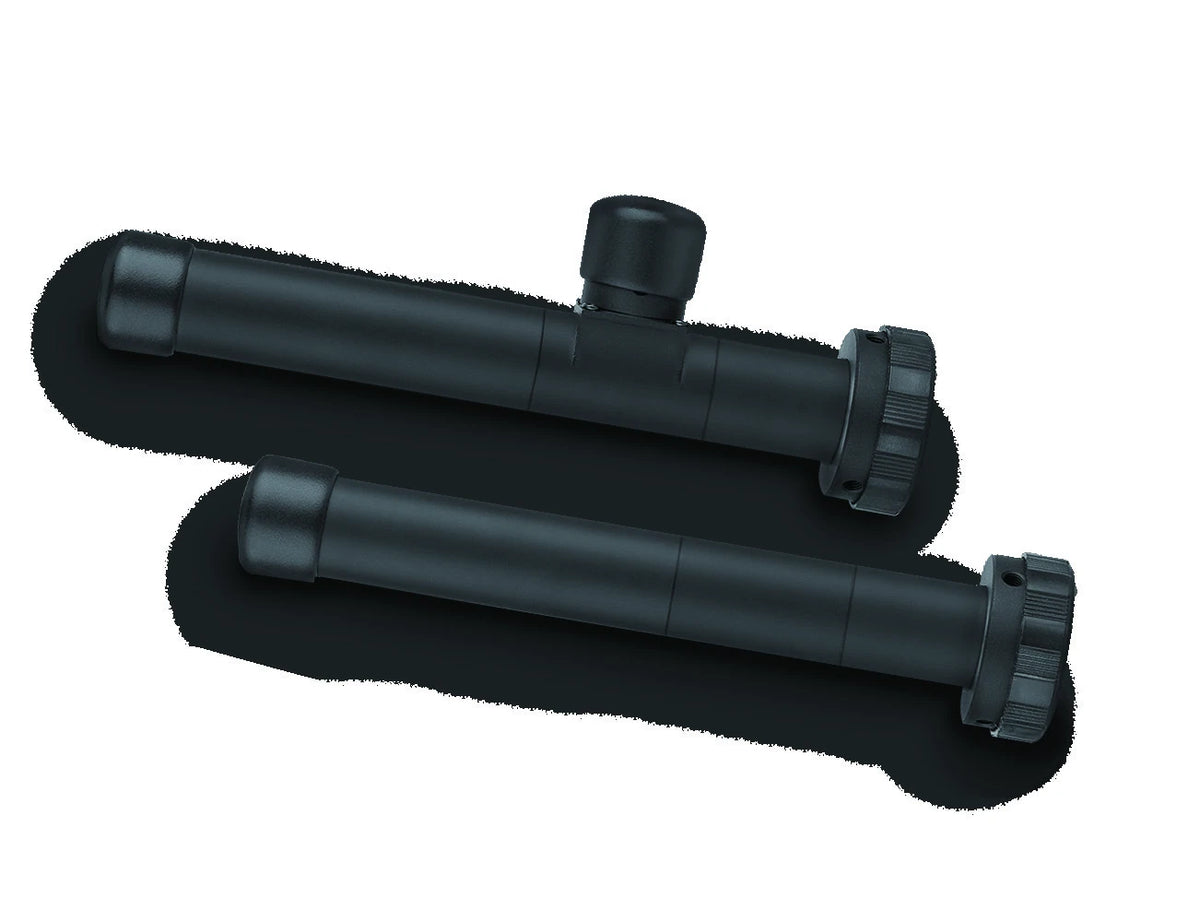

Standard / fixed magnification telecentric lens, 1x, WD 250 mm, 1/3", C-mount (LS-TCL-2941)
  • Standard / fixed magnification telecentric lens, 1x, WD 250 mm, 1/3", C-mount (LS-TCL-2941)

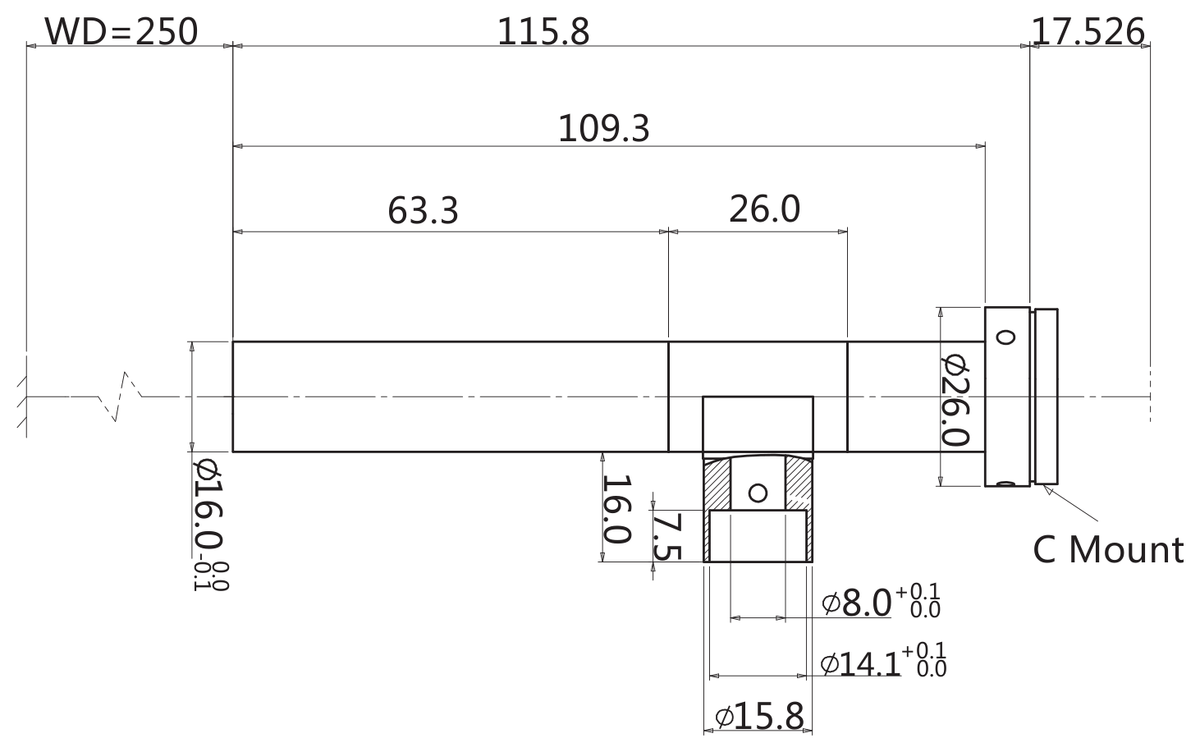

  • LS-TCL-2941 dimensions (mm)

Telecentric lenses

Standard / fixed magnification telecentric lens, 1x, WD 250 mm, 1/3", C-mount (LS-TCL-2941)

Model LS-TCL-2941

  • Magnification1.0x
  • MountC-mount
  • Sensor1/3"
  • Working distance250 mm
  • Aperture20
  • Resolution13.4
$1,329.00

Ships in 2-3 weeks

0.51 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Standard / fixed magnification telecentric lens, 1x, WD 250 mm, 1/3", C-mount (LS-TCL-2941)LS-TCL-2941

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-2941: magnification 1.0x, working distance 250 mm, NA 0.025, depth of field 1.6 mm, sensor format 1/3".

LS-TCL-S93 series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2941
NA0.025

Optics

Working distance (mm)250
Aperture (F/#)20
Depth of field (mm)1.6
Coaxial lightYes
IrisNo
Magnification (x)1.0
Field of view with ICX445 (4.86x3.62 sensor) (mm x mm)4.9x3.6
Field of view with 9M021/22/24 (4.8x3.6 sensor) (mm x mm)4.8x3.6

Sensor and imaging

Sensor format1/3"
Max sensor size (dia. mm)6.0
Resolution (μm)13.4

Mechanical

MountC
Length (mm)115.8
Shipping weight0.51 kg

Engineering data

Field of view with the LS-TCL-2941

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 6 mmCovers sensors up to 1/3"
Magnification1×
Working distance250 mmDepth of field 1.6 mm
Total length115.8 mm
NA0.025
Field of view (width × height) by sensor format
Sensor format1×
1/3"4.8 × 3.6 mm4.8 × 3.6 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

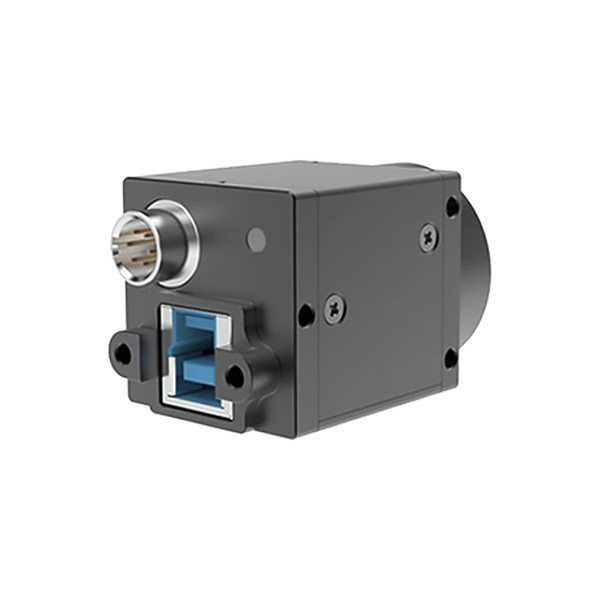

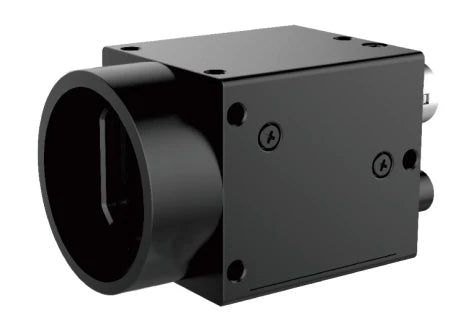

Cameras this lens fits

3.2 mm sensor diagonal; this lens covers up to 6 mm

6 mm sensor diagonal; this lens covers up to 6 mm

3.2 mm sensor diagonal; this lens covers up to 6 mm

3.2 mm sensor diagonal; this lens covers up to 6 mm

3.2 mm sensor diagonal; this lens covers up to 6 mm

3.8 mm sensor diagonal; this lens covers up to 6 mm

Adapters

For CS-mount cameras
