Standard / fixed magnification telecentric lens (VWL), 3x, WD 110 mm, 1/2", C-Mount (LS-VWL30-110AT)
  • Standard / fixed magnification telecentric lens (VWL), 3x, WD 110 mm, 1/2", C-Mount (LS-VWL30-110AT)

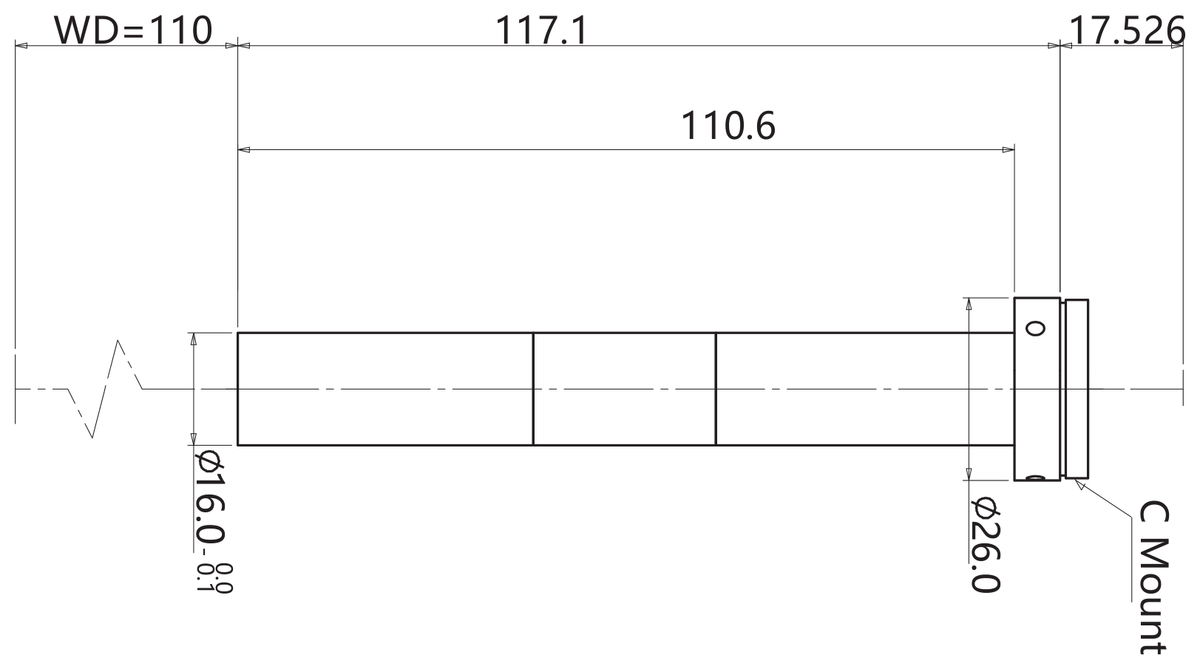

  • LS-TCL-2962 dimensions (mm)

Telecentric lenses

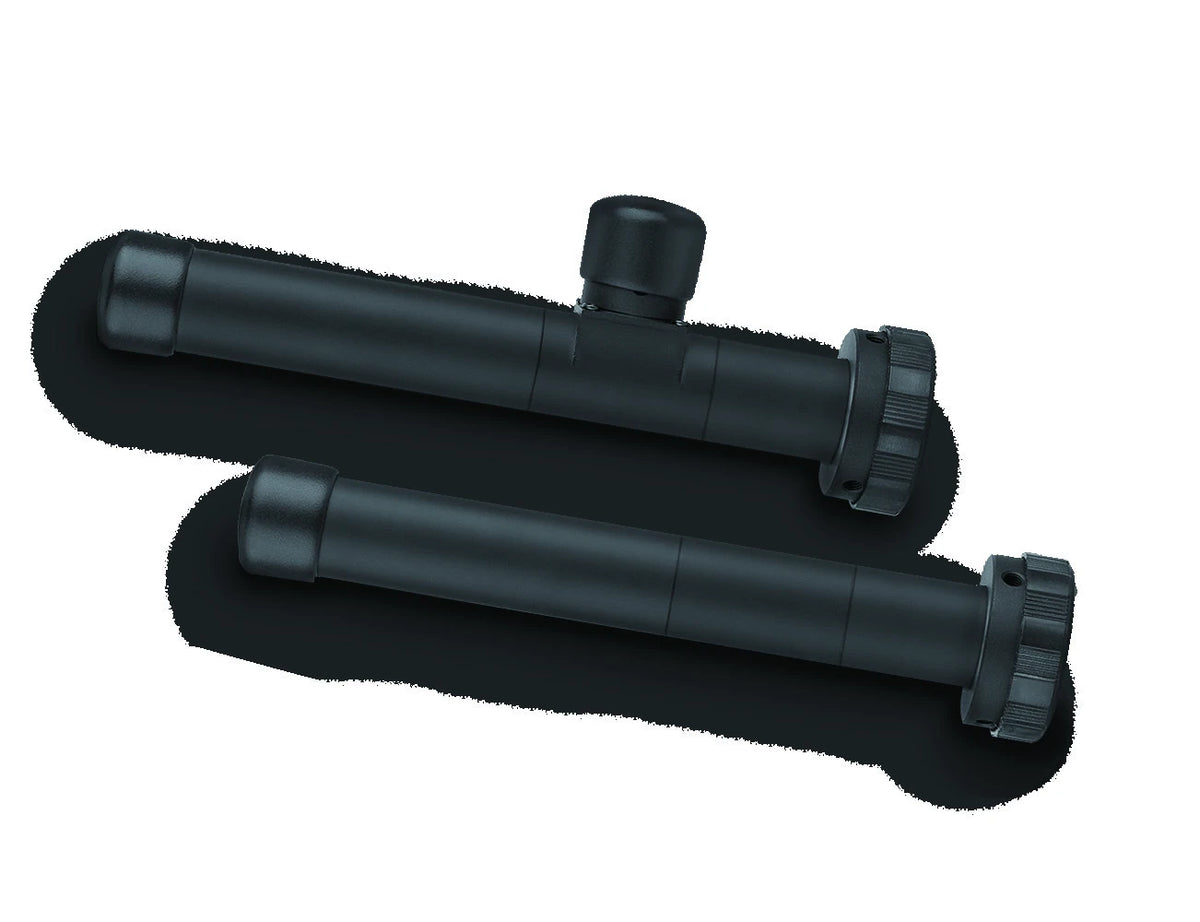

Standard / fixed magnification telecentric lens, 3x, WD 110 mm, 1/2", C-Mount (LS-TCL-2962)

Model LS-TCL-2962

  • Magnification3.0x
  • MountC-mount
  • Sensor1/2"
  • Working distance110 mm
  • Aperture34.2
  • Resolution7.8
$1,239.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.48 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Standard / fixed magnification telecentric lens, 3x, WD 110 mm, 1/2", C-Mount (LS-TCL-2962)LS-TCL-2962

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-S93 series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2962
NA0.043

Optics

Working distance (mm)110
Aperture (F/#)34.2
Depth of field (mm)0.3
Coaxial lightNo
IrisNo
Magnification (x)3.0
Field of view with 9M001 (6.66x5.33 sensor) (mm x mm)2.2x1.8
Field of view with ICX267/205 (6.47x4.84 sensor) (mm x mm)2.2x1.6

Sensor and imaging

Max sensor size (dia. mm)8.0(1/2")
Resolution (μm)7.8
Sensor format1/2"

Mechanical

MountC
Length (mm)117.1
Shipping weight0.48 kg

Other models in the Standard / fixed magnification telecentric lens (LS-TCL-S93) series

See all 51 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2944 1.5x, WD 110 mm, 1/3", C-Mount $1,229.00 5 in stock View
LS-TCL-2945 1.5x, WD 110 mm, 1/3", C-Mount $1,229.00 2 in stock View
LS-TCL-2952 2x, WD 110 mm, 1/2", C-Mount $1,239.00 2 in stock View
LS-TCL-2953 2x, WD 110 mm, 1/2", C-Mount $1,239.00 3 in stock View
LS-TCL-2954 2x, WD 150 mm, 1/2", C-Mount $1,239.00 5 in stock View
LS-TCL-2955 2x, WD 150 mm, 1/2", C-Mount $1,239.00 3 in stock View
LS-TCL-2956 2x, WD 250 mm, 1/2", C-Mount $1,239.00 3 in stock View
LS-TCL-2957 2x, WD 250 mm, 1/3", C-Mount $1,239.00 5 in stock View
LS-TCL-2950 2x, WD 65 mm, 1/2", C-Mount $1,239.00 2 in stock View
LS-TCL-2951 2x, WD 65 mm, 1/2", C-Mount $1,239.00 2 in stock View
LS-TCL-2958 2.5x, WD 110 mm, 1/2", C-Mount $1,239.00 4 in stock View
LS-TCL-2959 2.5x, WD 110 mm, 1/2", C-Mount $1,239.00 3 in stock View
LS-TCL-2963 3x, WD 110 mm, 1/2", C-Mount $1,239.00 3 in stock View
LS-TCL-2964 3x, WD 150 mm, 1/2", C-Mount $1,239.00 5 in stock View
LS-TCL-2965 3x, WD 150 mm, 1/2", C-Mount $1,239.00 3 in stock View
LS-TCL-2960 3x, WD 65 mm, 1/2", C-Mount $1,239.00 2 in stock View
LS-TCL-2961 3x, WD 65 mm, 1/2", C-Mount $1,239.00 4 in stock View
LS-TCL-2949 1.5x, WD 250 mm, 1/3", C-Mount $1,269.00 4 in stock View
LS-TCL-2946 1.5x, WD 150 mm, 1/2", C-Mount $1,309.00 2 in stock View
LS-TCL-2947 1.5x, WD 150 mm, 1/2", C-Mount $1,309.00 3 in stock View
LS-TCL-2948 1.5x, WD 250 mm, 1/2", C-Mount $1,309.00 5 in stock View
LS-TCL-2942 1.5x, WD 65 mm, 1/2", C-Mount $1,309.00 3 in stock View
LS-TCL-2943 1.5x, WD 65 mm, 1/2", C-Mount $1,309.00 4 in stock View
LS-TCL-2941 1x, WD 250 mm, 1/3", C-Mount $1,329.00 5 in stock View
