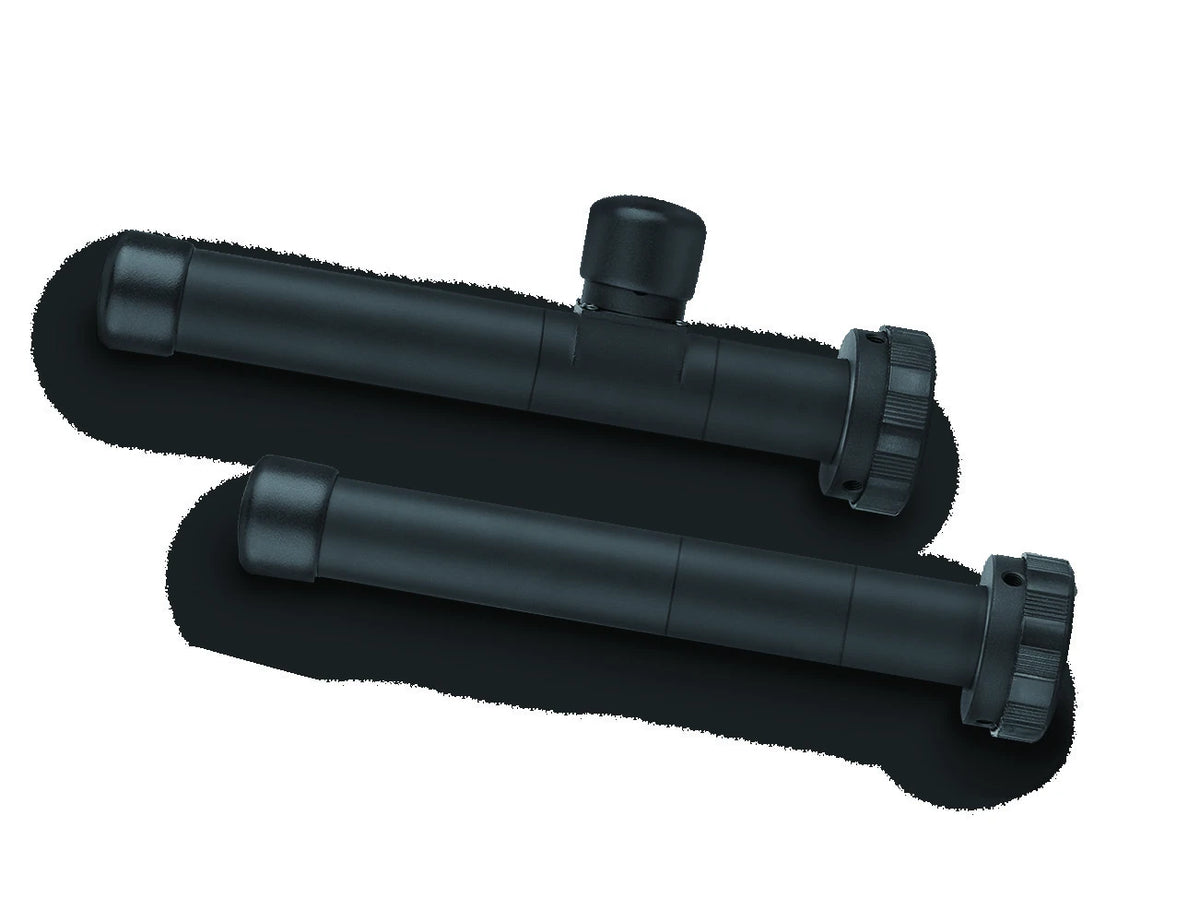

Standard / fixed magnification telecentric lens, 2x, WD 250 mm, 1/2", C-Mount (LS-TCL-2956)
  • Standard / fixed magnification telecentric lens, 2x, WD 250 mm, 1/2", C-Mount (LS-TCL-2956)

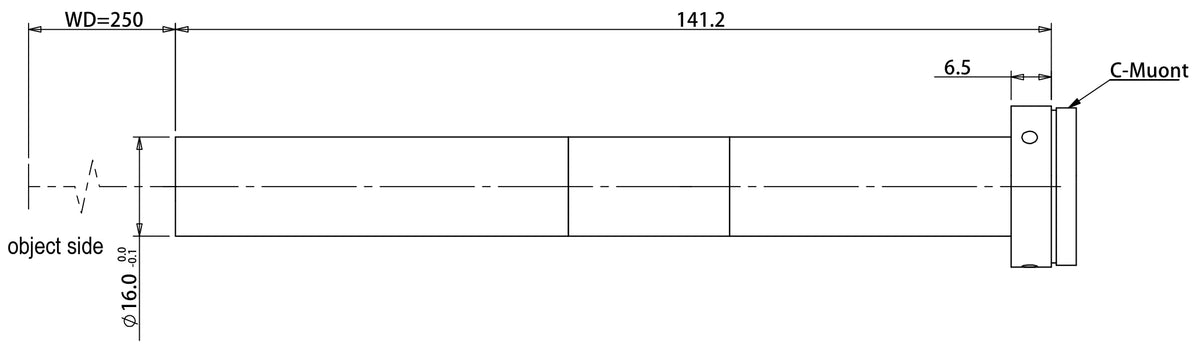

  • LS-TCL-2956 dimensions (mm)

Telecentric lenses

Standard / fixed magnification telecentric lens, 2x, WD 250 mm, 1/2", C-Mount (LS-TCL-2956)

Model LS-TCL-2956

  • Magnification2.0x
  • MountC-mount
  • Sensor1/2"
  • Working distance250 mm
  • Aperture40
  • Resolution13.4
$1,239.00

Ships in 2-3 weeks

0.49 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Standard / fixed magnification telecentric lens, 2x, WD 250 mm, 1/2", C-Mount (LS-TCL-2956)LS-TCL-2956

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-S93 series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2956
NA0.025

Optics

Working distance (mm)250
Aperture (F/#)40
Depth of field (mm)0.8
Coaxial lightNo
IrisNo
Magnification (x)2.0
Field of view with 9M001 (6.66x5.33 sensor) (mm x mm)3.3x2.7
Field of view with ICX267/205 (6.47x4.84 sensor) (mm x mm)3.2x2.4

Sensor and imaging

Max sensor size (dia. mm)8.0(1/2")
Resolution (μm)13.4
Sensor format1/2"

Mechanical

MountC
Length (mm)141.2
Shipping weight0.49 kg
