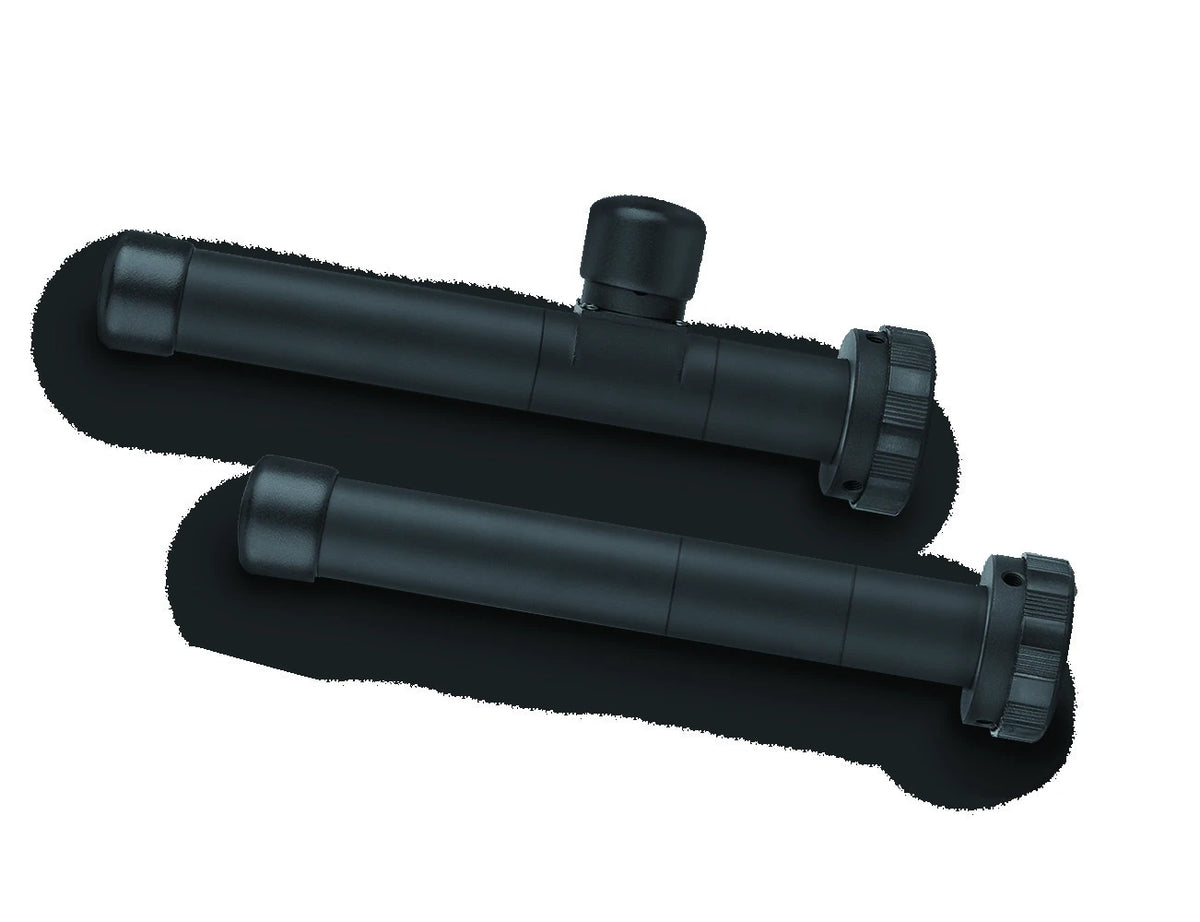

Standard / fixed magnification telecentric lens, 0.8x, WD 150 mm, 1/3", C-Mount (LS-TCL-2932)
  • Standard / fixed magnification telecentric lens, 0.8x, WD 150 mm, 1/3", C-Mount (LS-TCL-2932)

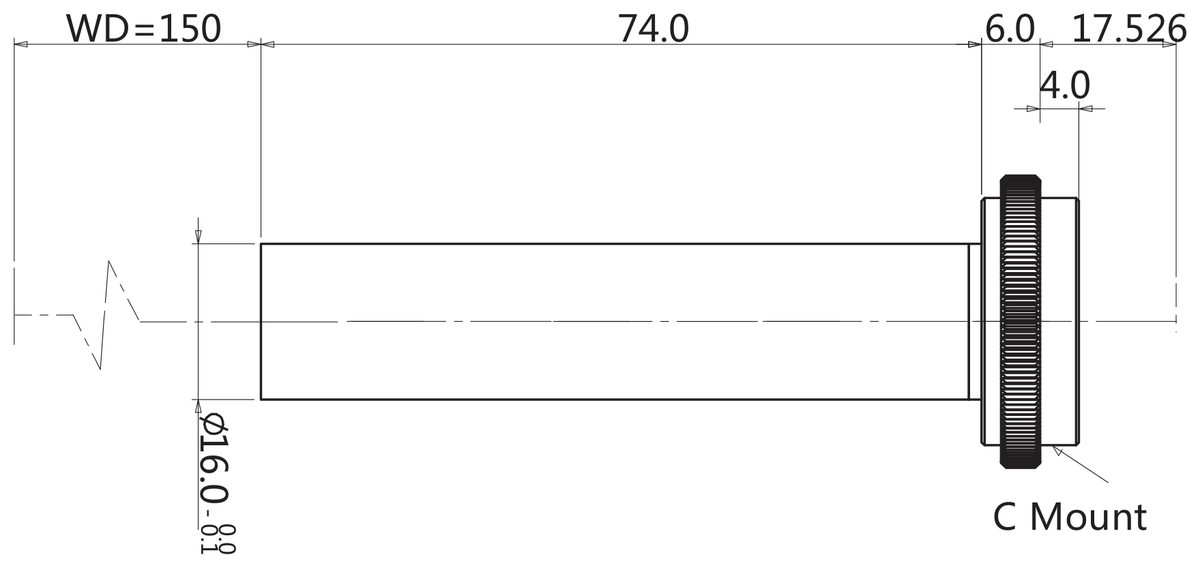

  • LS-TCL-2932 dimensions (mm)

Telecentric lenses

Standard / fixed magnification telecentric lens, 0.8x, WD 150 mm, 1/3", C-Mount (LS-TCL-2932)

Model LS-TCL-2932

  • Magnification0.8x
  • MountC-mount
  • Sensor1/3"
  • Working distance150 mm
  • Aperture13.6
  • Resolution11.5
$1,369.00

Ships in 2-3 weeks

0.53 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Standard / fixed magnification telecentric lens, 0.8x, WD 150 mm, 1/3", C-Mount (LS-TCL-2932)LS-TCL-2932

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-S93 series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2932
NA0.0293

Optics

Working distance (mm)150
Aperture (F/#)13.6
Depth of field (mm)1.7
Coaxial lightNo
IrisNo
Magnification (x)0.8
Field of view with ICX445 (4.86x3.62 sensor) (mm x mm)6.1x4.5
Field of view with 9M021/22/24 (4.8x3.6 sensor) (mm x mm)6.0x4.5

Sensor and imaging

Max sensor size (dia. mm)6.0(1/3")
Resolution (μm)11.5
Sensor format1/3"

Mechanical

MountC
Length (mm)80.0
Shipping weight0.53 kg

Other models in the Standard / fixed magnification telecentric lens (LS-TCL-S93) series

See all 51 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2963 3x, WD 110 mm, 1/2", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2964 3x, WD 150 mm, 1/2", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2965 3x, WD 150 mm, 1/2", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2960 3x, WD 65 mm, 1/2", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2961 3x, WD 65 mm, 1/2", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2949 1.5x, WD 250 mm, 1/3", C-Mount $1,269.00 Ships in 2-3 weeks View
LS-TCL-2946 1.5x, WD 150 mm, 1/2", C-Mount $1,309.00 Ships in 2-3 weeks View
LS-TCL-2947 1.5x, WD 150 mm, 1/2", C-Mount $1,309.00 Ships in 2-3 weeks View
LS-TCL-2948 1.5x, WD 250 mm, 1/2", C-Mount $1,309.00 Ships in 2-3 weeks View
LS-TCL-2942 1.5x, WD 65 mm, 1/2", C-Mount $1,309.00 Ships in 2-3 weeks View
LS-TCL-2943 1.5x, WD 65 mm, 1/2", C-Mount $1,309.00 Ships in 2-3 weeks View
LS-TCL-2941 1x, WD 250 mm, 1/3", C-Mount $1,329.00 Ships in 2-3 weeks View
LS-TCL-2936 1x, WD 113 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2937 1x, WD 113 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2938 1x, WD 150 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2939 1x, WD 150 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2940 1x, WD 250 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2934 1x, WD 65 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2935 1x, WD 65 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2926 0.6x, WD 65 mm, 1/1.8", C-Mount $1,439.00 Ships in 2-3 weeks View
LS-TCL-2927 0.6x, WD 65 mm, 1/1.8", C-Mount $1,439.00 Ships in 2-3 weeks View
LS-TCL-2930 0.8x, WD 130 mm, 1/2", C-Mount $1,439.00 Ships in 2-3 weeks View
LS-TCL-2931 0.8x, WD 130 mm, 1/2", C-Mount $1,439.00 Ships in 2-3 weeks View
LS-TCL-2933 0.8x, WD 250 mm, 1/2", C-Mount $1,439.00 Ships in 2-3 weeks View
