Telecentric lenses
0.036× telecentric lens, 2/3", C-mount (LS-TCL-0352)
Model LS-TCL-0352
- Magnification0.036×
- MountC-mount
- Sensor2/3"
- Working distance366 mm
- Resolution141 μm
$18,719.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 366 mm; depth of field 319.4 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0352 |
|---|---|
| FOV @ 1/1.8″ | 198.06 x 148.06 mm |
| Fov @ 1/2.0″ | 177.78 x 133.33 mm |
| Fov @ 1/2.5″ | 158.33 x 118.89 mm |
| FOV @ 1/2″ | 177.78 x 133.33 mm |
| Fov @ 1/3.0″ | 133.33 x 100.00 mm |
| FOV @ 2/3″ | 236.11 x 196.94 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.036× |
|---|---|
| Working distance | 366 mm |
| Depth of field | 319.4 mm |
| Distortion maximum (%) | < 0.9 |
| Distortion typical (%) | < 0.9 |
| Filter thread | No Filter Threads |
| Image size dimensions | 8.93 x 7.45 mm |
| Residual distortion (%) | < 0.01 |
| Telecentricity maximum | 0.22° |
| Telecentricity typical | < 0.18° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 141 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

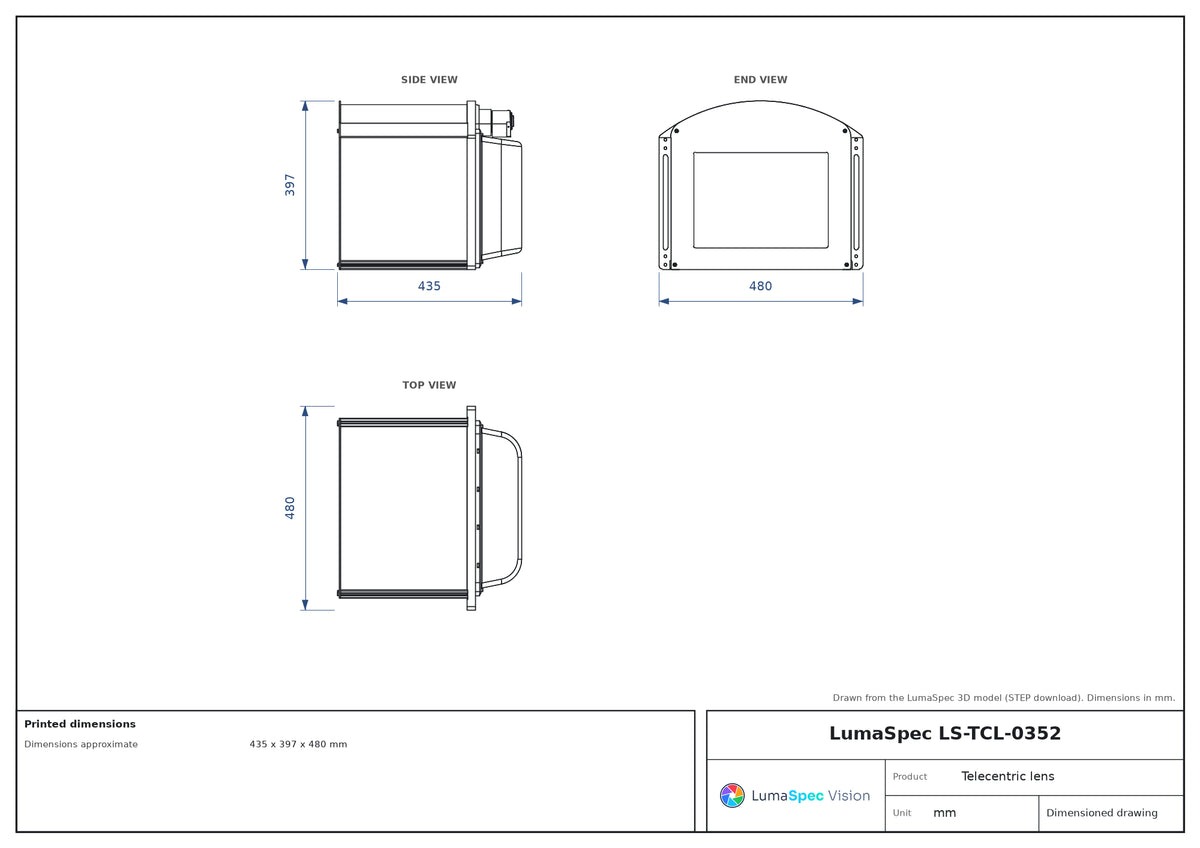

| Dimensions approximate | 435 x 397 x 480 mm |
| Weight | 12337 Grams |
