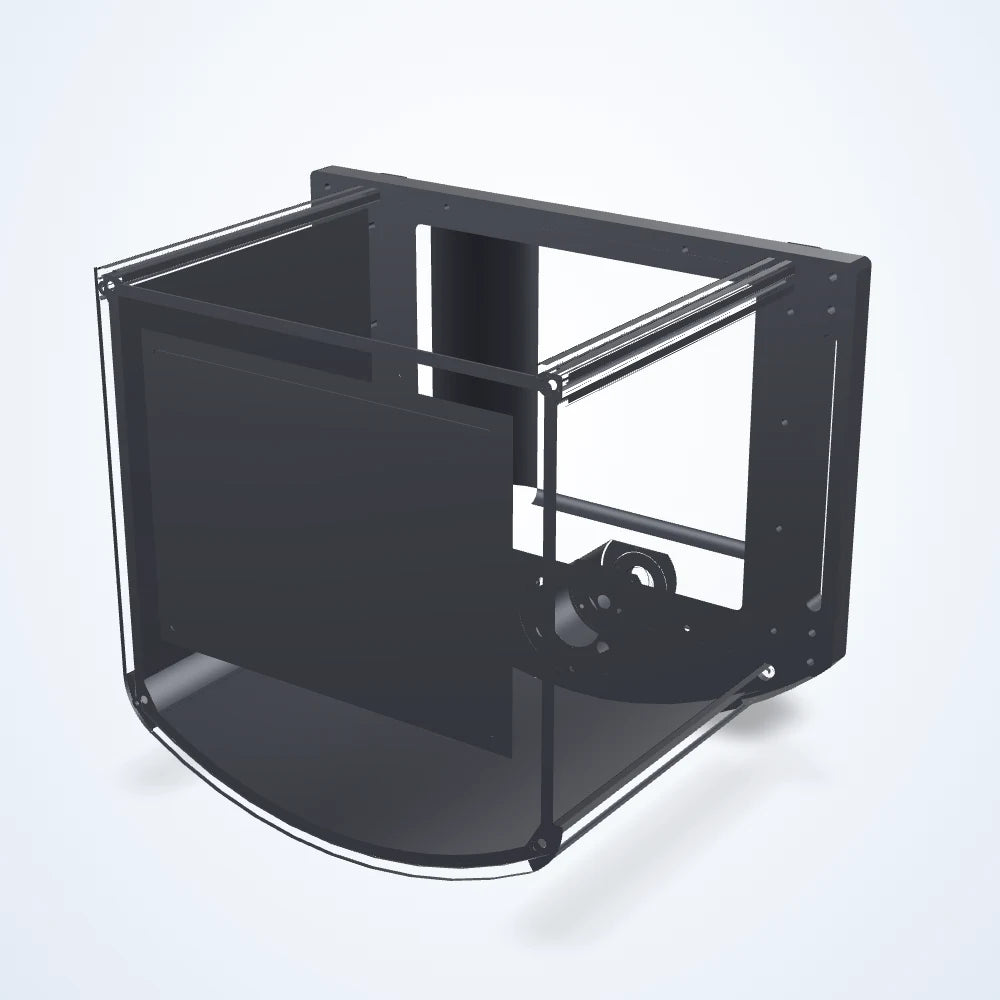

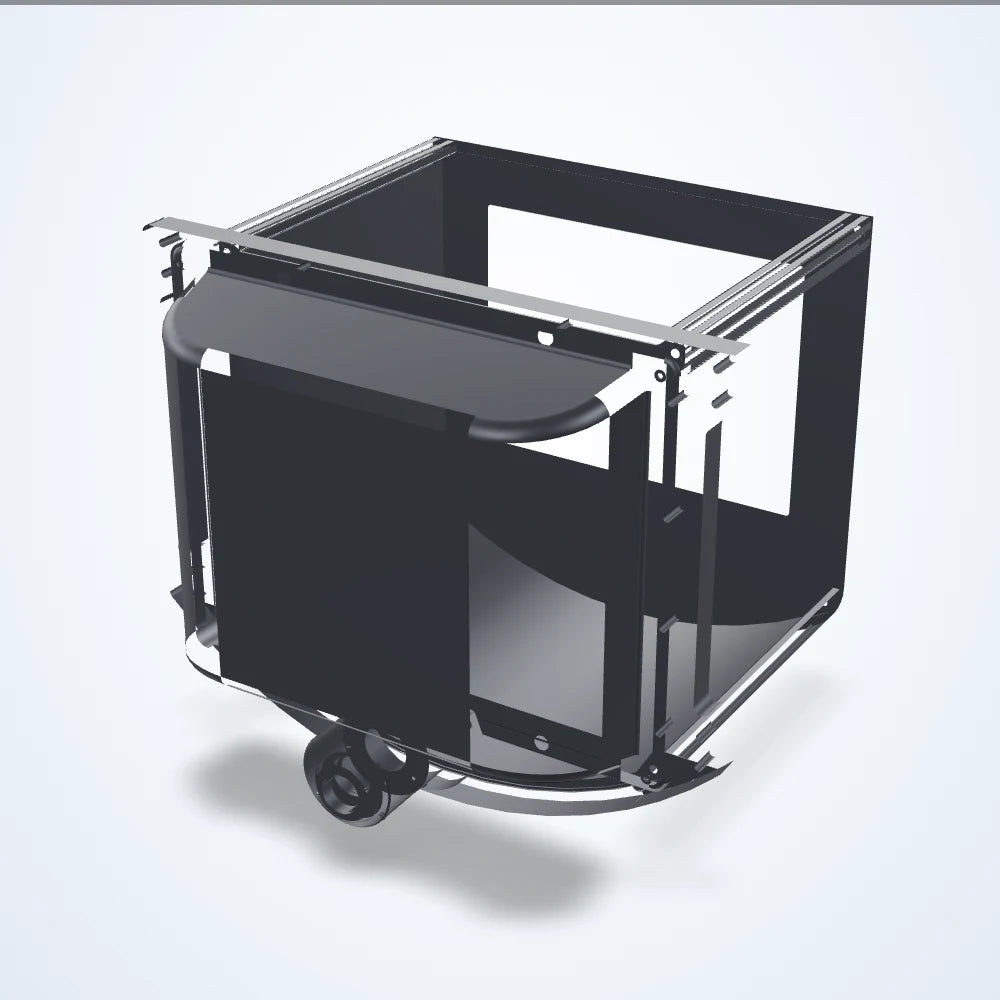

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.044× telecentric lens, 2/3", C-mount, WD 328 mm (LS-TCL-0351)
Model LS-TCL-0351
- Magnification0.044×
- MountC-mount
- Sensor2/3"
- Working distance328 mm
- Resolution115.9 μm
$13,639.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 328 mm; depth of field 215.8 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0351 |
|---|---|
| FOV @ 1/1.8″ | 162.79 x 121.69 mm |
| Fov @ 1/2.0″ | 146.12 x 109.59 mm |
| Fov @ 1/2.5″ | 130.14 x 97.72 mm |
| FOV @ 1/2″ | 146.12 x 109.59 mm |
| Fov @ 1/3.0″ | 109.59 x 82.19 mm |
| FOV @ 2/3″ | 194.06 x 161.87 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.044× |
|---|---|
| Working distance | 328 mm |
| Depth of field | 215.8 mm |
| Distortion maximum (%) | < 0.8 |
| Distortion typical (%) | < 0.8 |
| Filter thread | No Filter Threads |
| Image size dimensions | 8.93 x 7.45 mm |
| Residual distortion (%) | < 0.01 |
| Telecentricity maximum | 0.18° |
| Telecentricity typical | < 0.12° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 115.9 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

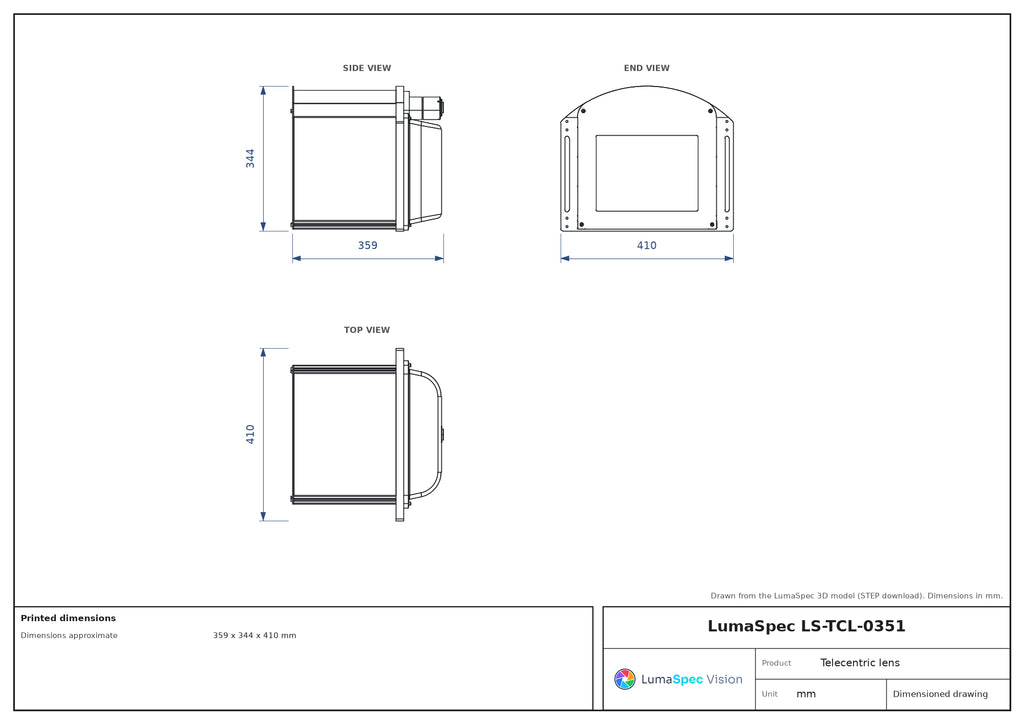

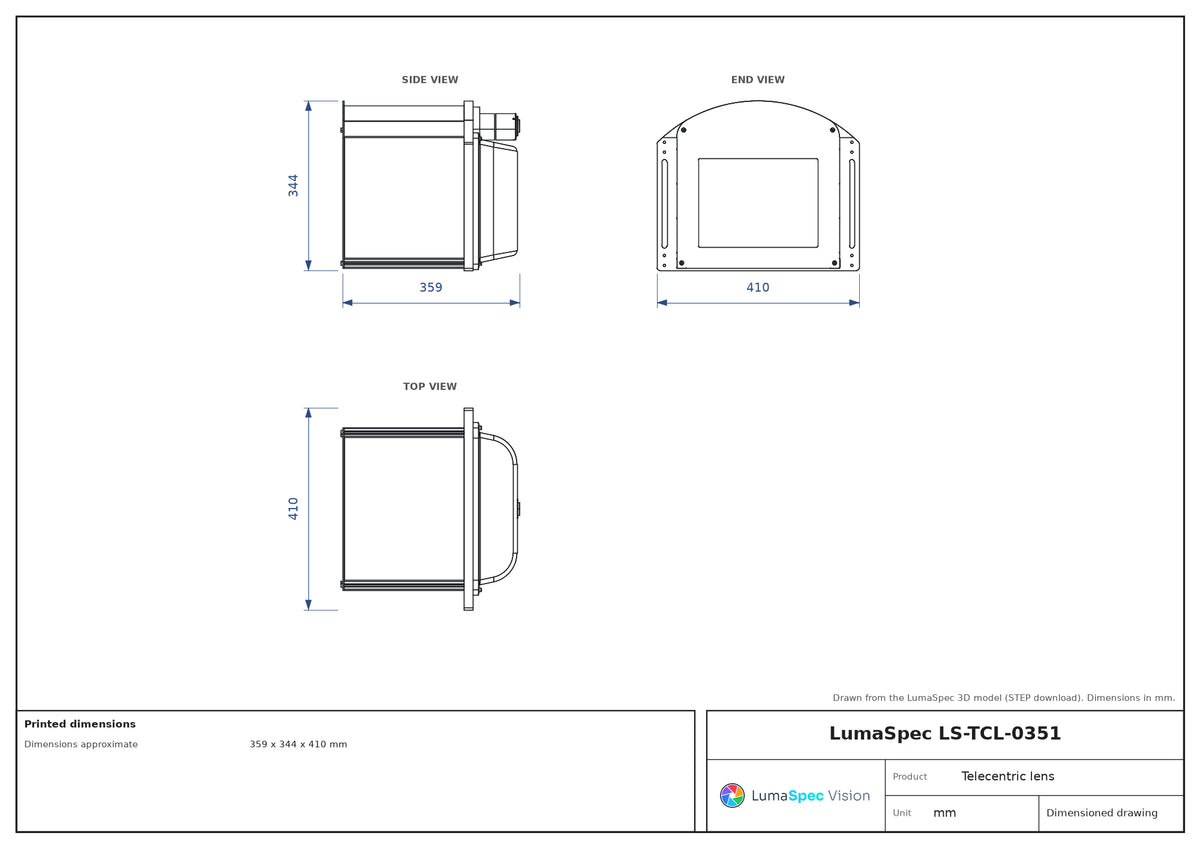

| Dimensions approximate | 359 x 344 x 410 mm |
| Weight | 8982 Grams |
