Telecentric lenses

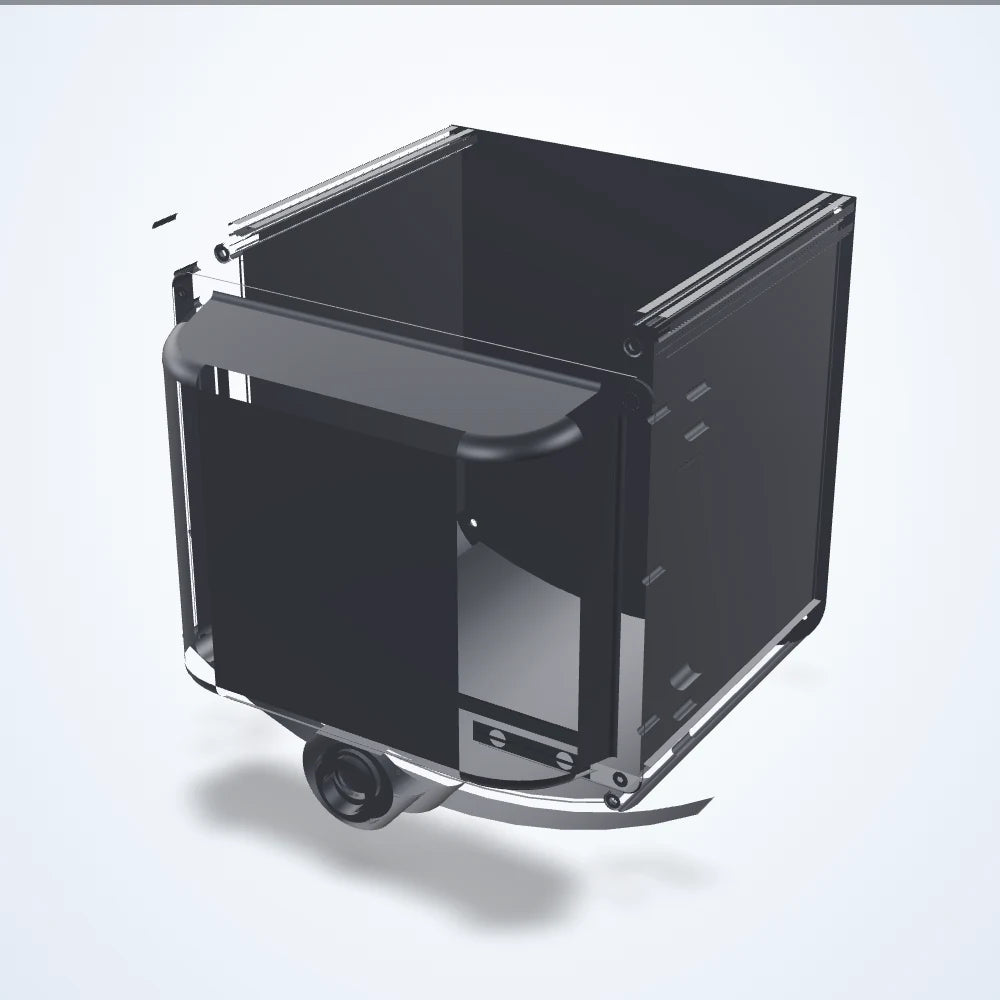

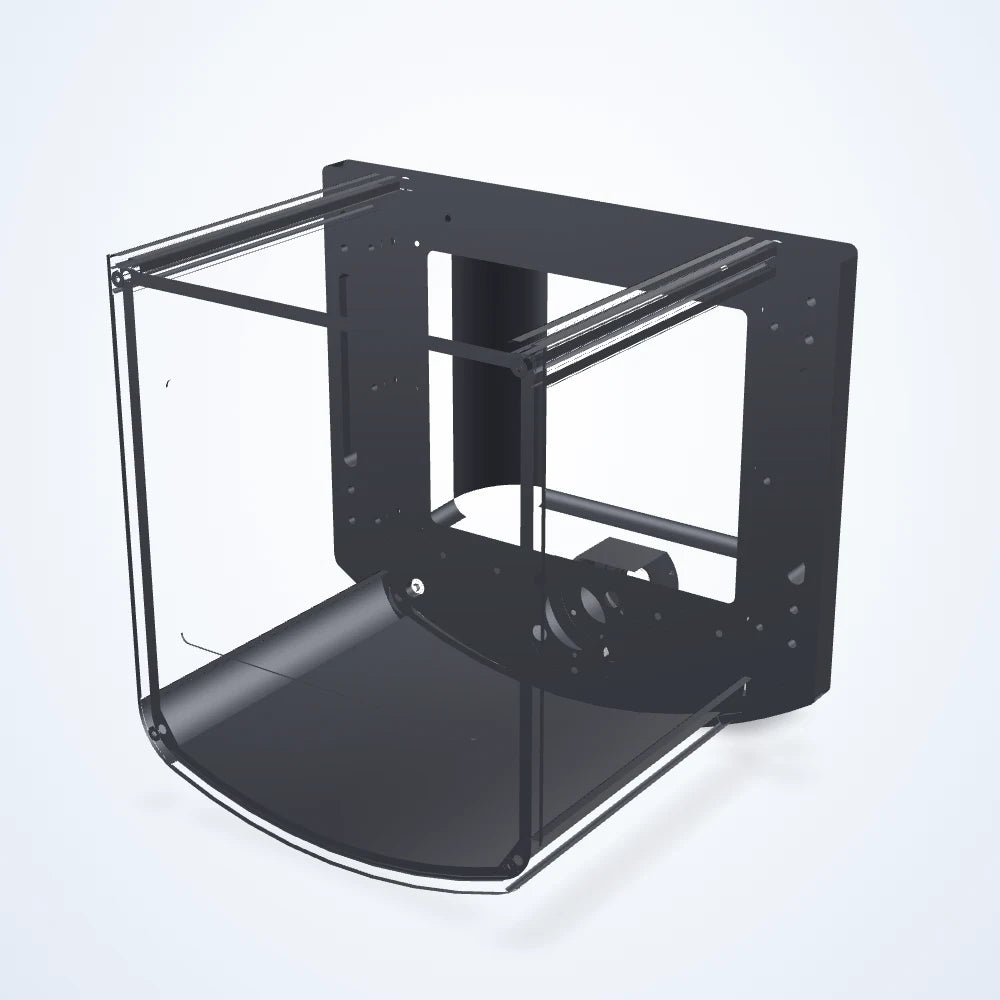

0.044× telecentric lens, 1/1.8", C-mount (LS-TCL-0347)
Model LS-TCL-0347
- Magnification0.044×
- MountC-mount
- Sensor1/1.8"
- Working distance217.4 mm
- Resolution115.3 μm
$13,639.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 217.4 mm; depth of field 213.8 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0347 |
|---|---|
| FOV @ 1/1.8″ | 162.05 x 121.14 mm |
| Fov @ 1/2.0″ | 145.45 x 109.09 mm |
| Fov @ 1/2.5″ | 129.55 x 97.27 mm |
| FOV @ 1/2″ | 145.45 x 109.09 mm |
| Fov @ 1/3.0″ | 109.09 x 81.82 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.044× |
|---|---|
| Working distance | 217.4 mm |
| Depth of field | 213.8 mm |
| Distortion maximum (%) | < 0.8 |
| Distortion typical (%) | < 0.8 |
| Filter thread | No Filter Threads |
| Image size dimensions | 7.48 x 5.6 mm |
| Residual distortion (%) | < 0.01 |
| Telecentricity maximum | 0.1° |
| Telecentricity typical | < 0.06° |
Sensor and imaging
| Sensor format | 1/1.8" |
|---|---|
| Resolution (pixel size) | 115.3 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

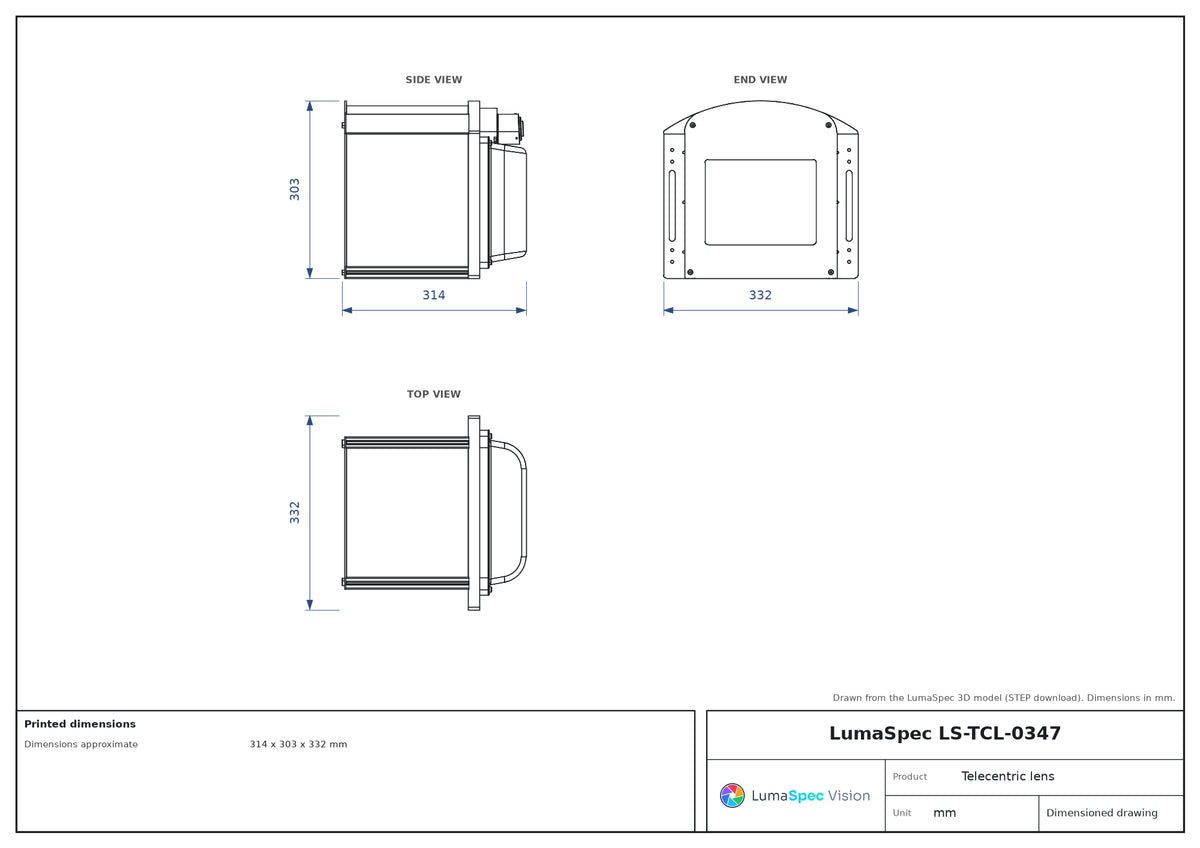

| Dimensions approximate | 314 x 303 x 332 mm |
| Weight | 7096 Grams |
