Telecentric lenses

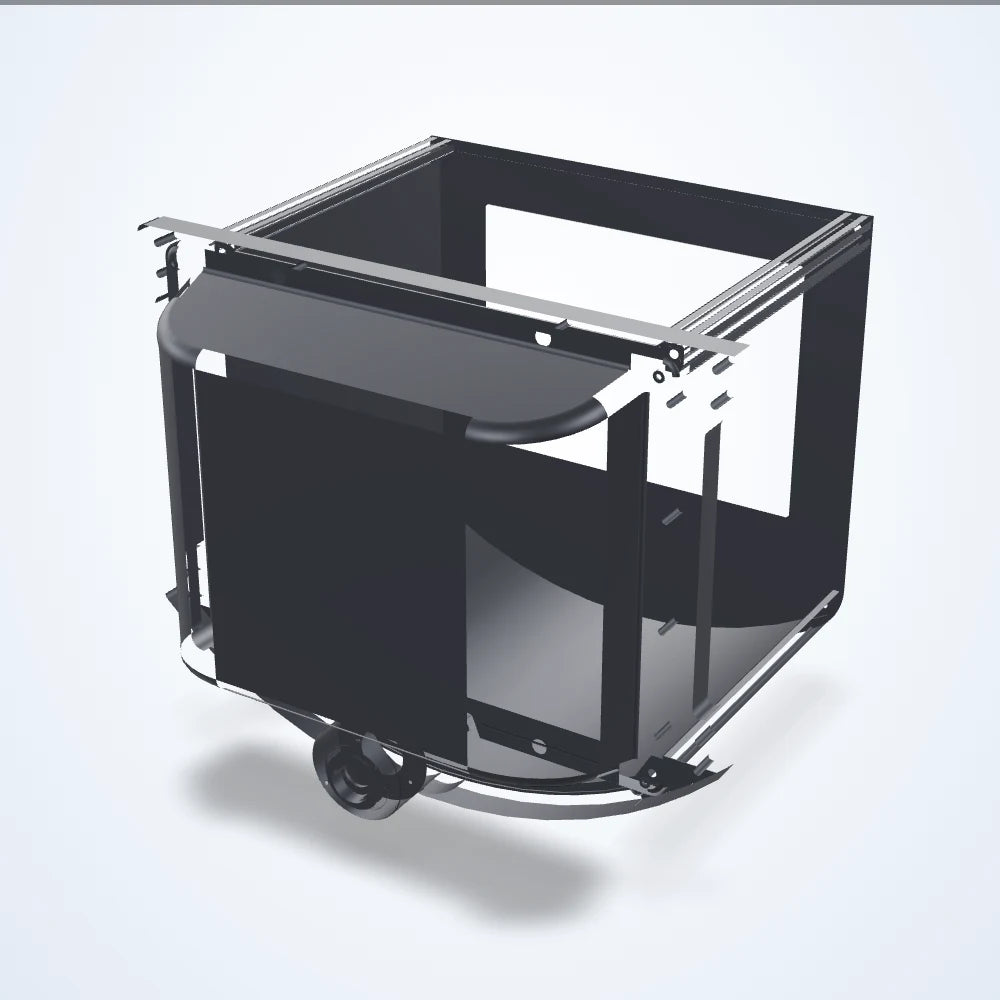

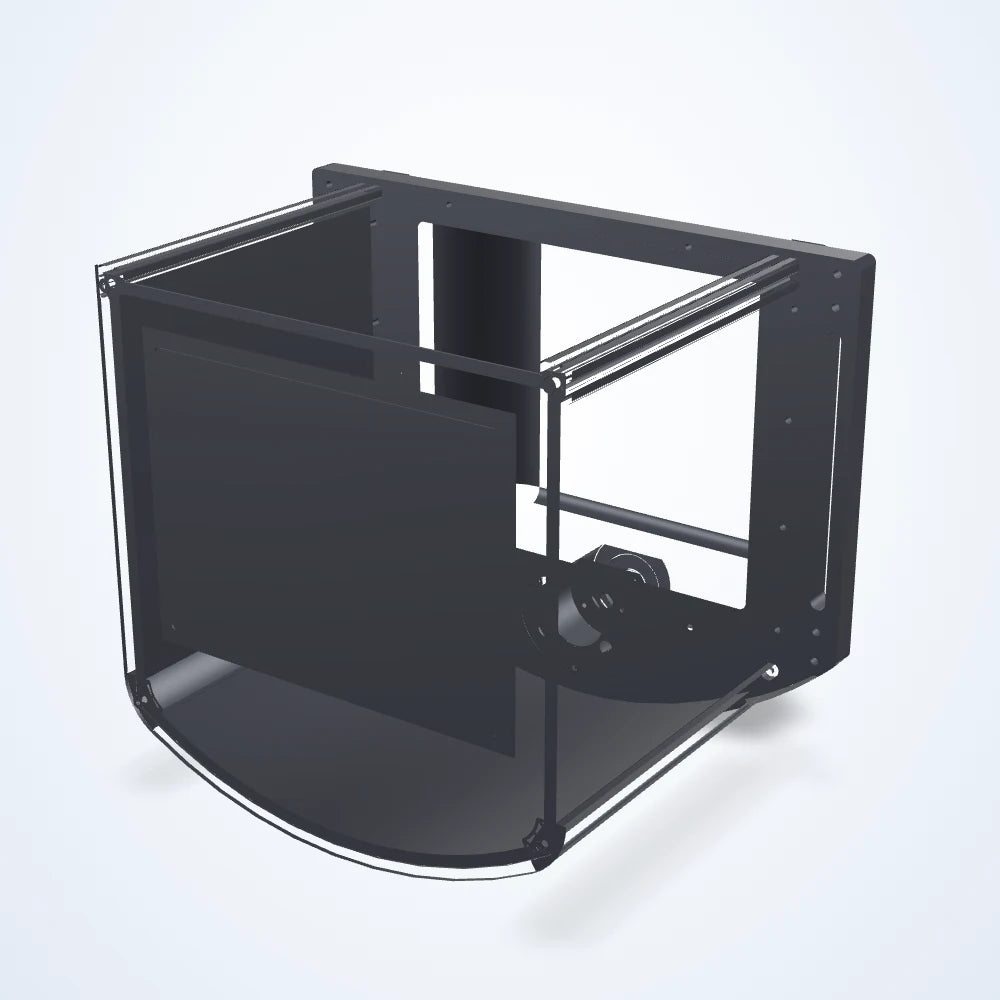

0.033× telecentric lens, 1/1.8", C-mount (LS-TCL-0348)
Model LS-TCL-0348
- Magnification0.033×
- MountC-mount
- Sensor1/1.8"
- Working distance328 mm
- Resolution154.3 μm
$13,639.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 328 mm; depth of field 382.5 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0348 |
|---|---|
| FOV @ 1/1.8″ | 200 x 162.01 mm |
| Fov @ 1/2.0″ | 194.53 x 145.90 mm |
| Fov @ 1/2.5″ | 173.25 x 130.09 mm |
| FOV @ 1/2″ | 194.53 x 145.90 mm |
| Fov @ 1/3.0″ | 145.90 x 109.42 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.033× |
|---|---|
| Working distance | 328 mm |
| Depth of field | 382.5 mm |
| Distortion maximum (%) | < 0.8 |
| Distortion typical (%) | < 0.8 |
| Filter thread | No Filter Threads |
| Image size dimensions | 7.48 x 5.6 mm |
| Residual distortion (%) | < 0.01 |
| Telecentricity maximum | 0.18° |
| Telecentricity typical | < 0.12° |
Sensor and imaging
| Sensor format | 1/1.8" |
|---|---|
| Resolution (pixel size) | 154.3 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

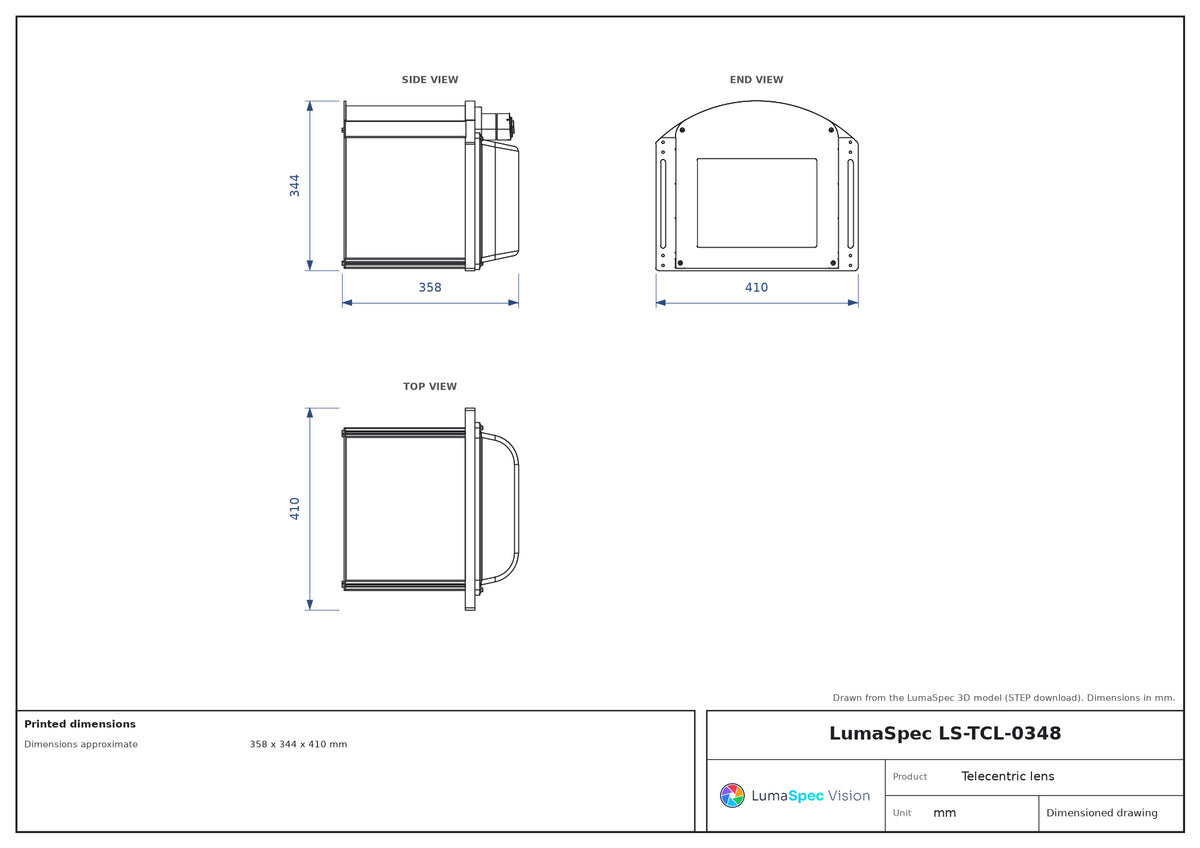

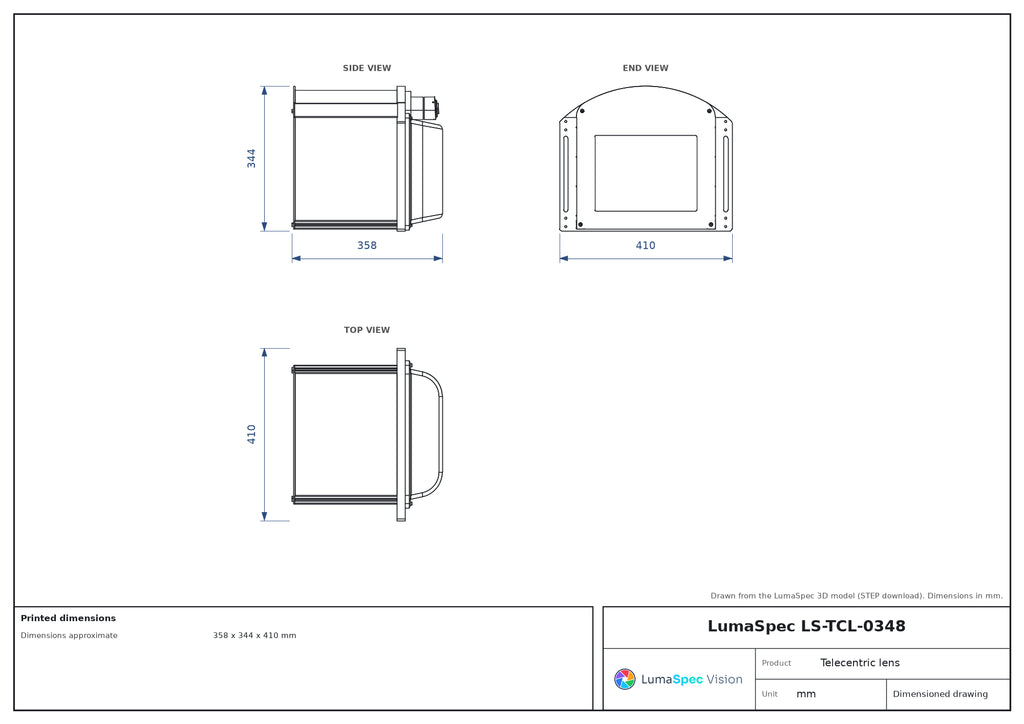

| Dimensions approximate | 358 x 344 x 410 mm |
| Weight | 8897 Grams |
