Thermal, SWIR & UV lenses

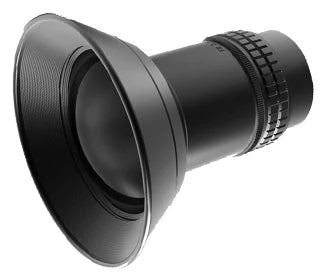

9.2 mm, 5 MP, C-mount UV Lens (LS-SUV920-5M)

Model LS-SUV920-5M

Focal length9.2 mm
MountC-mount
SensorLarge format
Working distance0.2 m to infinity
ApertureF3.6

$309.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.45 kg shipping weight

Volume pricing, Net 30 or a formal quote?

9.2 mm, 5 MP, C-mount UV Lens. 9.2 mm, 90° (image circle dia. it sits in our UV Lenses category). At a glance: working distance 0.2 m to infinity; focal length 9.2 mm; image format / field 90° (image circle dia. 18 mm); aperture F3.6; mount C mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SUV920-5M
Image format / field	90° (image circle dia. 18 mm)

Optics

Focal length	9.2 mm
Aperture	F3.6
Working distance	0.2 m to infinity
Distortion	≤2%
MTF	70 lp/mm > 0.3
Iris control	Manual
Focus control	Manual
Back focal length	13.5 mm

Light

Wavelength	254 ±20 nm

Environment and compliance

Operating temperature	-40 to 60 °C

Mechanical

Mount	C mount

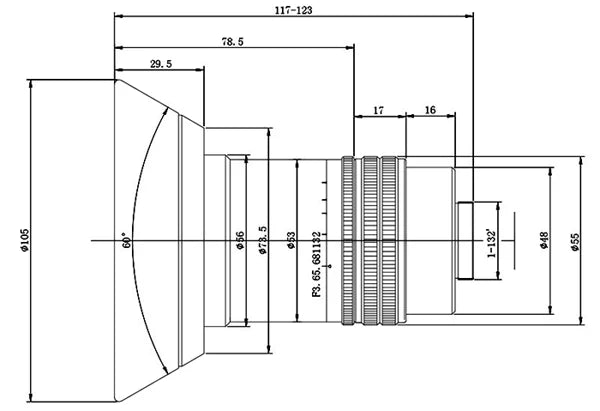

Size (from drawing)	dia. 105 (front) x 117-123 mm
Shipping weight (estimated)	0.45 kg
