Thermal, SWIR & UV lenses
35-39 mm, EF/C-mount UV Lens (LS-SUV008)
Model LS-SUV008
- Focal length35-39 mm
- MountEF-mount
- Sensor1/1.56"
- Working distance150 mm to 10 m
- ApertureF5.6
- ResolutionMegapixel
$419.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
35-39 mm, EF/C-mount UV Lens. 35-39 mm, image circle dia. it sits in our UV Lenses category). At a glance: working distance 150 mm to 10 m; focal length 35-39 mm; image format / field image circle dia. 10 mm; resolution Megapixel; aperture F5.6.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SUV008 |
|---|---|
| Image format / field | image circle dia. 10 mm |
| Filter (from drawing) | interchangeable filter slot |
Optics
| Focal length | 35-39 mm |
|---|---|
| Aperture | F5.6 |
| Working distance | 150 mm to 10 m |
| Distortion | ≤1.8% |
| MTF | 150 lp/mm > 0.3 |
| Iris control | Manual |
| Focus control | Motorized (electric) |
| Field of view | dia. 10 mm |
Sensor and imaging
| Resolution | Megapixel |
|---|
Light
| Wavelength | 250-380 nm |
|---|
Environment and compliance
| Operating temperature | -40 to 60 °C |
|---|
Mechanical
| Mount | Canon EF or C mount |
|---|---|

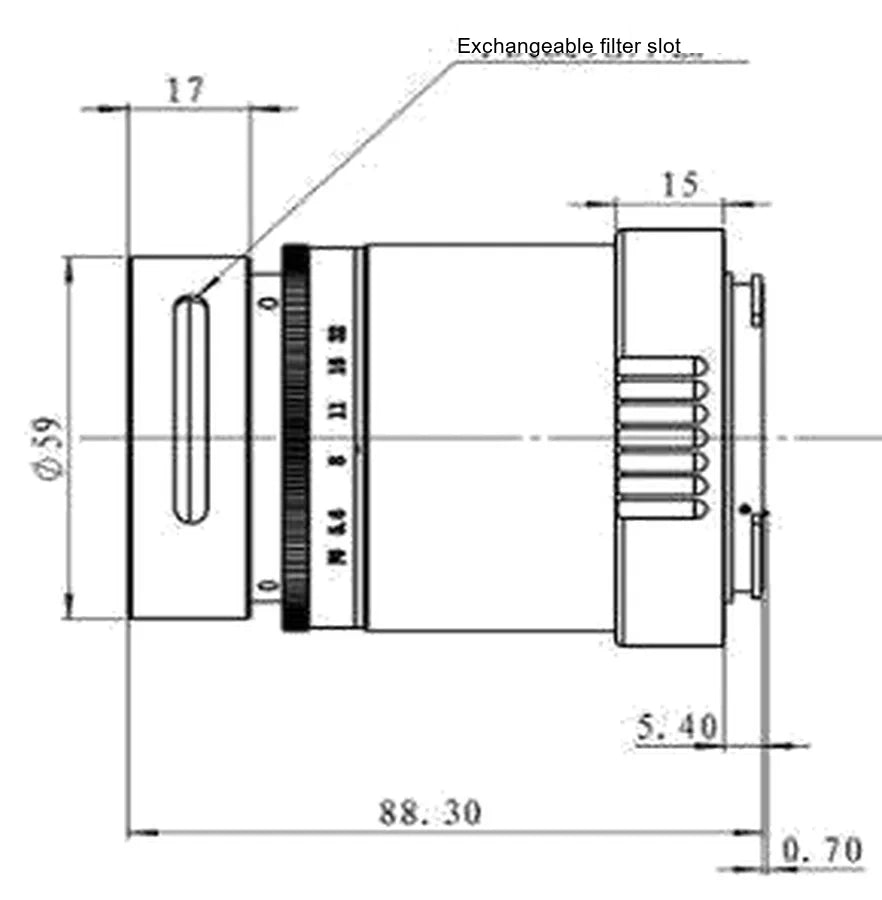

| Size (from drawing) | dia. 59 x 88.3 mm (rear mount housing dia. 68) |
| Shipping weight (estimated) | 0.45 kg |
