Thermal, SWIR & UV lenses

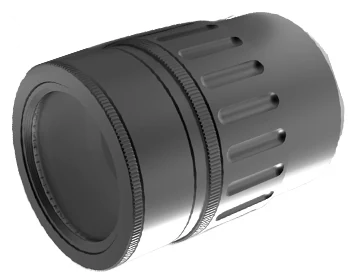

100 mm, F/C-mount UV Lens (LS-SUV003)
Model LS-SUV003
- Focal length100 mm
- MountF-mount
- Sensor1.1"
- Working distance300 mm to 10 m
- ApertureF2
- ResolutionMegapixel
$709.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
100 mm, F/C-mount UV Lens. 100 mm, image circle dia. it sits in our UV Lenses category). At a glance: working distance 300 mm to 10 m; focal length 100 mm; image format / field image circle dia. 18 mm; resolution Megapixel; aperture F2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SUV003 |
|---|---|
| Image format / field | image circle dia. 18 mm |
Optics
| Focal length | 100 mm |
|---|---|
| Aperture | F2 |
| Working distance | 300 mm to 10 m |
| Distortion | ≤2% |
| MTF | 60 lp/mm > 0.3 |
| Iris control | Manual |
| Focus control | Manual |

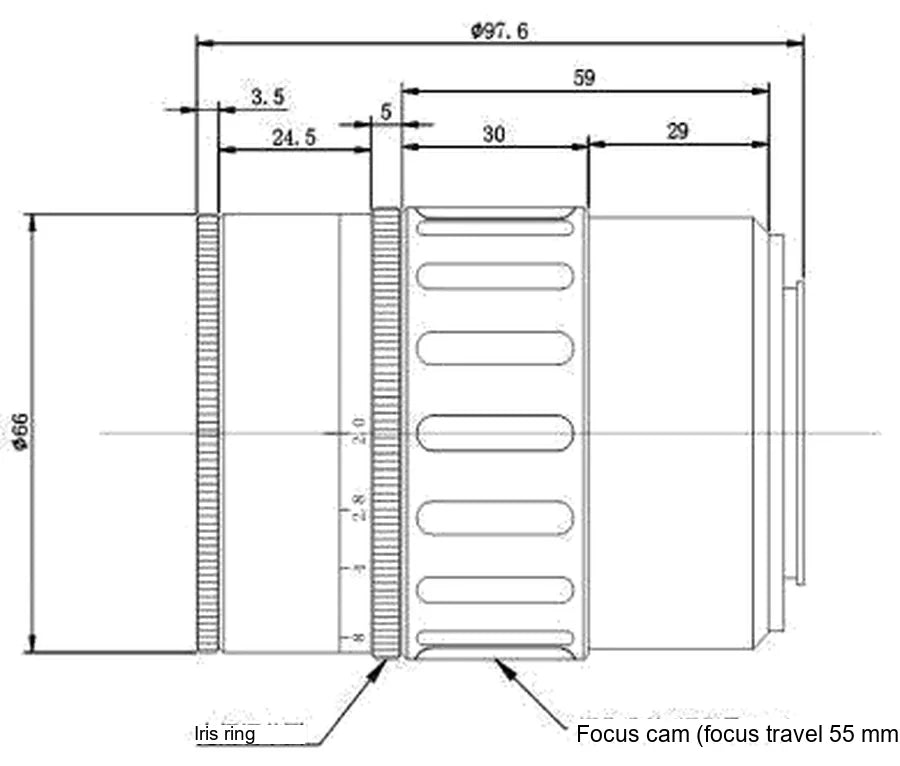

| Focus travel (from drawing) | 55 mm (focus cam) |
| Field of view | dia. 18 mm |
Sensor and imaging
| Resolution | Megapixel |
|---|
Light
| Wavelength | 250-380 nm |
|---|
Environment and compliance
| Operating temperature | -40 to 60 °C |
|---|
Mechanical
| Mount | Nikon F or C mount |
|---|---|
| Size (from drawing) | dia. 66 x 97.6 mm |
| Shipping weight (estimated) | 0.45 kg |
Other models in the UV lenses series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SUV920-5M | 9.2 mm, 5 MP, C-mount | $309.00 | 2 in stock | View |
| LS-SUV132C | 12 mm, 1/3", EF/C-mount | $319.00 | 5 in stock | View |
| LS-SUV008 | 35-39 mm, EF/C-mount | $419.00 | 4 in stock | View |
| LS-SUV110C | 47.6-50.3 mm, C-mount | $479.00 | 3 in stock | View |
| LS-SUV004 | 60 mm, 2", EF/C-mount | $529.00 | 2 in stock | View |
| LS-SUV108C | 80 mm, EF/C-mount | $619.00 | 3 in stock | View |
| LS-SUV80640 | 80-640 mm, EF/C-mount | $619.00 | 3 in stock | View |
