Thermal, SWIR & UV lenses

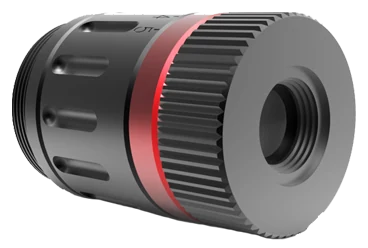

12 mm, 1/3", EF/C-mount UV Lens (LS-SWL-0273)
Model LS-SWL-0273
- Focal length12 mm
- MountEF-mount
- Sensor1/3"
- Working distance0.5 m to infinity
- ApertureF3.8
$499.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
12 mm, 1/3", EF/C-mount UV Lens. it sits in our UV Lenses category). At a glance: working distance 0.5 m to infinity; focal length 12 mm; image format / field 1/3"; aperture F3.8; mount Canon EF or C mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0273 |
|---|---|
| Image format / field | 1/3" |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture | F3.8 |
| Working distance | 0.5 m to infinity |
| Distortion | ≤2% |
| MTF | 300 lp/mm > 0.3 |
| Iris control | Manual |
| Focus control | Manual |
| Focus travel (from drawing) | 10 mm / 3 mm (unit focusing) |
Light
| Wavelength | 365 ±20 nm |
|---|
Environment and compliance
| Operating temperature | -40 to 60 °C |
|---|
Mechanical
| Mount | Canon EF or C mount |
|---|---|

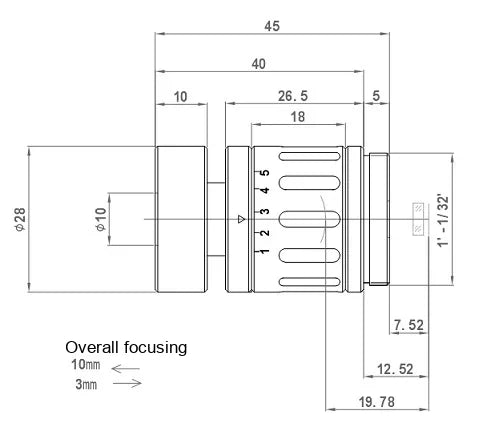

| Size (from drawing) | dia. 28 x 45 mm |
| Shipping weight (estimated) | 0.45 kg |
