Machine vision lenses
12 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 Megapixel, F1.4 Manual Iris (LS-SMV1214-5MC)
Model LS-SMV1214-5MC
- Focal length12 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4 Manual Iris
- Resolution5.0 Megapixel
$109.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
12 mm, 2/3", 5 MP, C-mount Machine Vision Lens. 12 mm F1.4 5 megapixel 2/3" machine vision (FA) lens with -0.8% distortion and manual iris, C mount. The 2/3" format also covers 1/1.8" and 1/2" cameras. At a glance: focal length 12 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.4 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV1214-5MC |
|---|---|
| Format | 2/3" |
| Angle of view (2/3") | 46.6 x 39 x 30.3 deg |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.15 m |
| Filter thread | M30.5 x P0.5 |
| Distortion | -0.8% |
| Back focal length | 13 mm |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

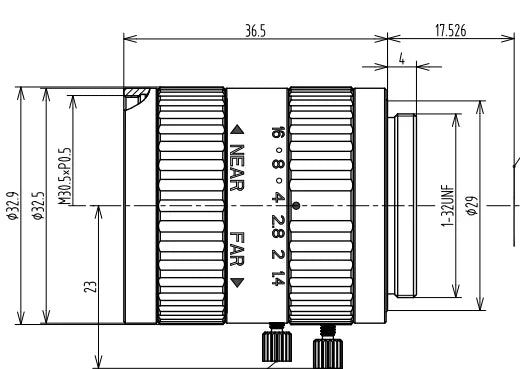

Mechanical
| Size | dia. 32.9 x 36.5 mm |
|---|---|
| Mount | C |
| Weight | 150 g |
| Optical total length | 54 mm |
| Shipping weight (estimated) | 0.31 kg |
