5 mm, 2/3", 6 MP, C-mount Machine Vision Lens (LS-SMV0528-6M)
Model LS-SMV0528-6M
- Focal length5 mm
- MountC-mount
- Sensor2/3"
- Working distance0.1 m ~ inf.
- ApertureF2.8~16
- Resolution6 MP
$99.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
5 mm, 2/3", 6 MP, C-mount Machine Vision Lens. 5 mm 2/3" machine vision lens for 6-8 MP cameras (3.45 um pixels), F2.8, distortion <3%, cost-effective C-mount lens for positioning and inspection. At a glance: working distance 0.1 m ~ inf.; focal length 5 mm; format 2/3"; resolution 6 MP; aperture F2.8~16.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV0528-6M |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", DxHxV) | 97 x 84.3 x 68 deg |
| Angle of view (1/2", DxHxV) | 80 x 66 x 52 deg |
| Angle of view (1/3", DxHxV) | 62 x 52 x 41 deg |
Optics
| Focal length | 5 mm |
|---|---|
| Aperture | F2.8~16 |
| Working distance | 0.1 m ~ inf. |
| Flange focal length | 17.526 mm |
| Focus | manual |
| Iris | manual |
| Filter thread | M72 x P0.75 |
| Distortion | <=3% |
Sensor and imaging
| Resolution | 6 MP |
|---|
Light
| Wavelength | 400~900 nm |
|---|
Mechanical
| Mount | C |
|---|---|

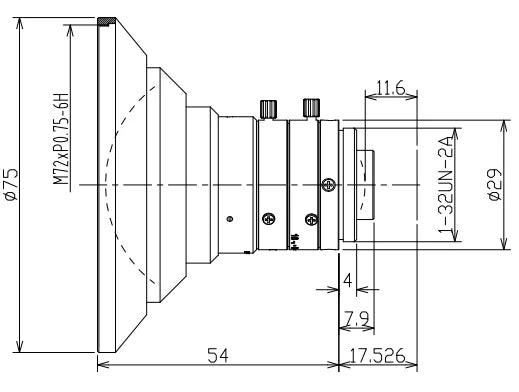

| Size | dia. 75 x 54 mm |
| Shipping weight (estimated) | 0.31 kg |
