Machine vision lenses
25 mm, 2/3", 8 MP, C-mount Machine Vision Lens (LS-SMV2514-8M)
Model LS-SMV2514-8M
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4 Manual Iris
- Resolution8.0 Megapixel
$129.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.56 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, 2/3", 8 MP, C-mount Machine Vision Lens. 8.0 megapixel 25 mm machine vision lens with a 2/3" format covering 2/3", 1/1.8" and 1/2" cameras. F1.4 aperture and 0.5% low distortion. At a glance: focal length 25 mm; format 2/3"; resolution 8.0 Megapixel; aperture F1.4 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV2514-8M |
|---|---|
| Format | 2/3" |
| Angle of view (2/3") | 19.6 x 14.8 deg |
| Angle of view (1/2") | 14.4 x 10.8 deg |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.1 m |
| Distortion | 0.5% |
Sensor and imaging
| Resolution | 8.0 Megapixel |
|---|
Mechanical

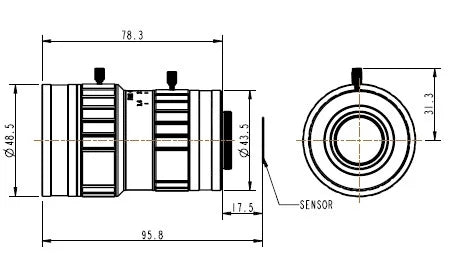

| Size | dia. 49 x 78.3 |
|---|---|
| Mount | C |
| Weight | 325 g |
| Shipping weight (estimated) | 0.56 kg |
Photo shows a representative model of this series; see the specifications for this model.
