35 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 MP (LS-SMV3514-5M)
Model LS-SMV3514-5M
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4 manual iris
- Resolution5.0 MP
$139.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
35 mm, 2/3", 5 MP, C-mount Machine Vision Lens. 35 mm 2/3" 5 MP C-mount F1.4 machine vision lens with <1% distortion. At a glance: focal length 35 mm; format 2/3"; resolution 5.0 MP; aperture F1.4 manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV3514-5M |
|---|---|
| Format | 2/3" |
| Angle of view (2/3") | 18 x 14.4 x 11 deg |
| Angle of view (2/3", DxHxV) | 18 x 14.4 x 11 deg |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F1.4 manual iris |
| Back focal length | 17.6 mm |
| M.O.D. | 0.5 m |
| Distortion | <1% |
Sensor and imaging
| Resolution | 5.0 MP |
|---|
Mechanical

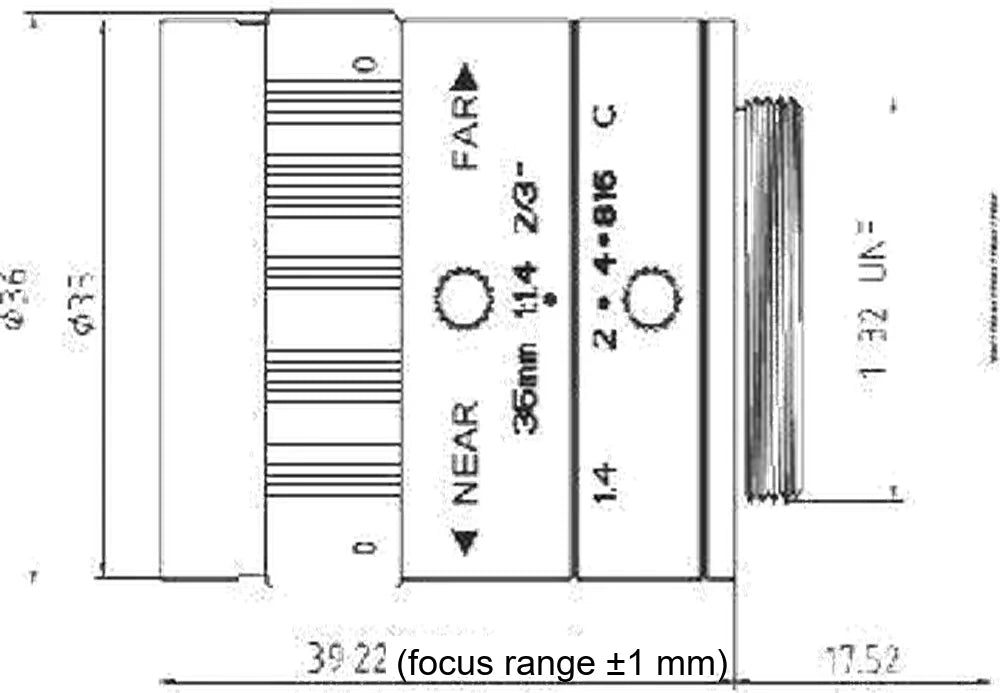

| Size | dia. 36 x 39.22 mm |
|---|---|
| Mount | C |
| Weight | 105 g |
| Optical total length | 55 mm |
| Shipping weight (estimated) | 0.25 kg |
