Machine vision lenses
75 mm, 2/3", 2 MP, C-mount Machine Vision Lens (LS-SMV7528-2M)
Model LS-SMV7528-2M
- Focal length75mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8 Manual iris
- Resolution2.0 Megapixel
$189.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.32 kg shipping weight
Volume pricing, Net 30 or a formal quote?
75 mm, 2/3", 2 MP, C-mount Machine Vision Lens. 75 mm 2/3" 2 MP machine vision (FA) lens with <0.02% distortion, C mount, for industrial recognition and AI sorting cameras. At a glance: focal length 75mm; format 2/3"; resolution 2.0 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV7528-2M |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", DxHxV) | 7.5 x 5.7 x 4.9 deg |
| Angle of view (1/1.8", DxHxV) | 5.9 x 4.7 x 3.6 deg |
| Angle of view (1/2.5", DxHxV) | 4.8 x 4 x 3 deg |
| Notes | All image circle over 100lp/mm |
Optics
| Focal length | 75mm |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | 0.7m |
| Distortion | <0.02% |

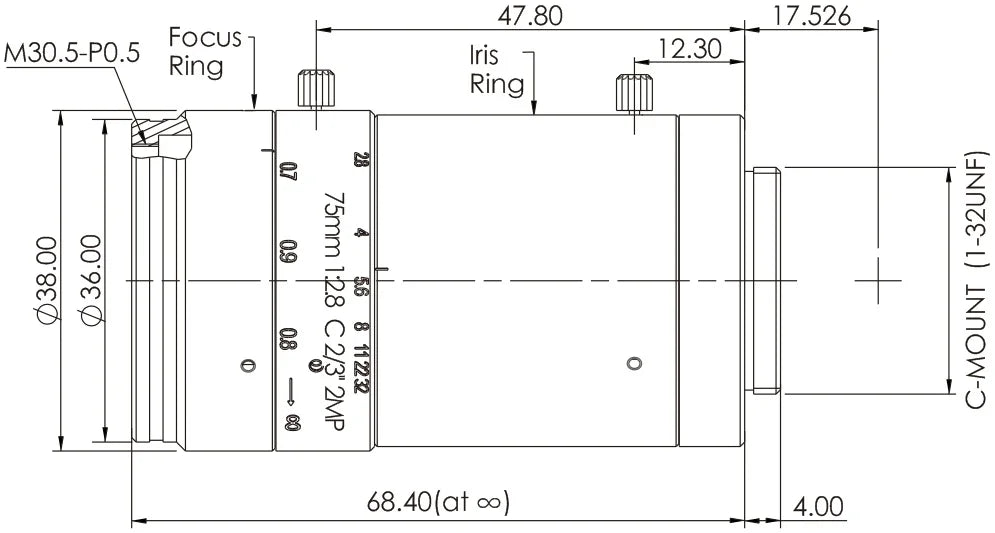

| Filter thread (from drawing) | M30.5 x 0.5 |
Sensor and imaging
| Resolution | 2.0 Megapixel |
|---|
Mechanical
| Optical total length | 85.9mm |
|---|---|
| Size | dia. 38 x 68.4mm |
| Mount | C |
| Weight | 160g |
| Shipping weight (estimated) | 0.32 kg |
