Machine vision lenses
50 mm, 2/3", 10 MP, C-mount Machine Vision Lens, 10 Megapixel, F2.8 Manual iris (LS-SMV5028CL-10M)
Model LS-SMV5028CL-10M
- Focal length50 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8 Manual iris
- Resolution10 Megapixel
$249.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.26 kg shipping weight
Volume pricing, Net 30 or a formal quote?
50 mm, 2/3", 10 MP, C-mount Machine Vision Lens. Compact (<35 mm diameter) 50 mm F2.8 manual-iris machine vision lens for 2/3" sensors, rated 10 megapixel (4K, 1080P), covering 2/3", 1/1.8" and 1/2" cameras. For automation, inspection, 3D, SMT and AOI. At a glance: focal length 50 mm; format 2/3"; resolution 10 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV5028CL-10M |
|---|---|
| Format | 2/3" |
| Angle of view (2/3") | 12.6 x 10 x 7.5 deg |
| B.F.L. | 14.9mm |
Optics
| Focal length | 50 mm |
|---|---|
| Max image circle | dia. 11 mm |
| Aperture | F2.8 Manual iris |
| M.O.D. | 0.2 m |
| Distortion | ±1% |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|

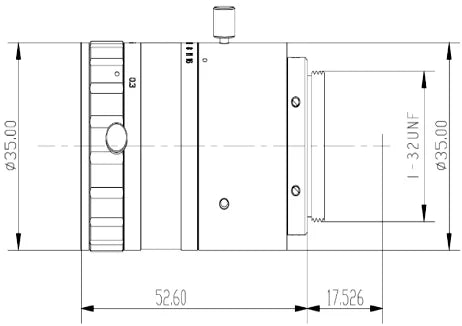

Mechanical
| Size | dia. 35 x 52.6 mm |
|---|---|
| Filter size | M30.5 x P0.5 |
| Mount | C |
| Weight | 115 g |
| Shipping weight (estimated) | 0.26 kg |
