Machine vision lenses

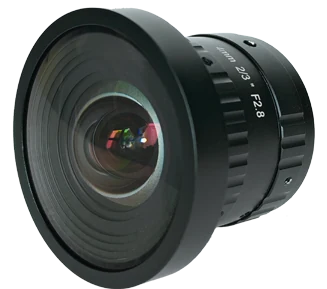

4 mm, 2/3", 6 MP, C-mount Machine Vision Lens (LS-SMV0428-6M)
Model LS-SMV0428-6M
- Focal length4 mm
- Magnification0.0351x @100 mm WD
- MountC-mount
- Sensor2/3"
- ApertureF2.8 manual iris
- Resolution6.0 MP
$99.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.28 kg shipping weight
Volume pricing, Net 30 or a formal quote?
4 mm, 2/3", 6 MP, C-mount Machine Vision Lens. 4 mm 2/3" machine vision lens for 6-8 MP cameras (3.45 um pixels), F2.8, TV distortion <3%, compact C-mount. At a glance: magnification 0.0351x @100 mm WD; focal length 4 mm; format 2/3" (dia. 11 mm); resolution 6.0 MP; aperture F2.8 manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV0428-6M |
|---|---|
| Format | 2/3" (dia. 11 mm) |
| T.T.L. | 55.3 mm |
| B.F.L. | 7.4 mm |
Optics
| Focal length | 4 mm |
|---|---|
| Aperture | F2.8 manual iris |
| Field of view (2/3") | 317 x 253 x 190 mm | 106 x 97 x 80 deg |
| Field of view (1/2") | 228 x 182 x 137 mm | 91 x 78 x 62 deg |
| M.O.D. | 60 mm |
| TV distortion | <3% |
| Magnification | 0.0351x @100 mm WD |
Sensor and imaging
| Resolution | 6.0 MP |
|---|
Environment and compliance
| Operating temperature | -10 to +50 C |
|---|

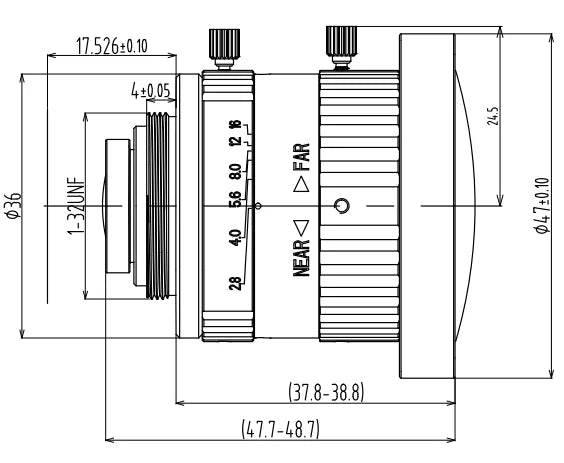

Mechanical
| Size | dia. 47 x 47.7 mm |
|---|---|
| Mount | C |
| Weight | 130 g |
| Shipping weight (estimated) | 0.28 kg |
