Machine vision lenses
75 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-S1MV7518-5MC)
Model LS-S1MV7518-5MC
- Focal length75 mm
- Magnification-0.055x ~ -0.115x
- MountC-mount
- Sensor1"
- ApertureF1.8 Manual iris
- Resolution5.0 Megapixel
$269.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.41 kg shipping weight
Volume pricing, Net 30 or a formal quote?
75 mm, 1", 5 MP, C-mount Machine Vision Lens. 75 mm F1.8 5 megapixel 1" machine vision (FA) lens with 0.1% distortion and manual iris, C mount; the 1" format also covers 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification -0.055x ~ -0.115x; focal length 75 mm; format 1"; resolution 5.0 Megapixel; aperture F1.8 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S1MV7518-5MC |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 12 x 10 x 7.5 deg |
| Angle of view (2/3", DxHxV) | 8.4 x 6.785 deg |
Optics
| Magnification | -0.055x ~ -0.115x |
|---|---|
| Focal length | 75 mm |
| Aperture | F1.8 Manual iris |
| M.O.D. | 0.8 m |
| Distortion | 0.1% |
| Back focal length | 16 mm |
| Filter thread | M55 x 0.75 |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

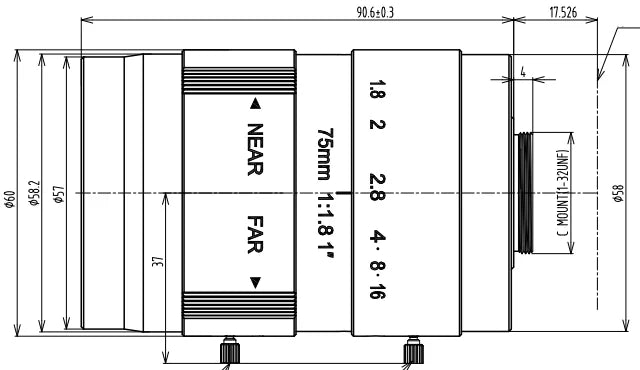

Mechanical
| Size | dia. 60 x 94.6 mm |
|---|---|
| Mount | C |
| Weight | 220 g |
| Optical total length | 108.1 mm |
| Shipping weight (estimated) | 0.41 kg |
