Machine vision lenses
100 mm, 1", 8 MP, C-mount Machine Vision Lens (LS-S1MV10035-8M)
Model LS-S1MV10035-8M
- Focal length100 mm
- MountC-mount
- Sensor1"
- ApertureF3.5 Manual Iris
- Resolution8.0 Megapixel
$299.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.32 kg shipping weight
Volume pricing, Net 30 or a formal quote?
100 mm, 1", 8 MP, C-mount Machine Vision Lens. High resolution: 8 megapixel cover all 4K & 1080P. Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Non-distortion: <0.025% low distortion use machine vision ITS. At a glance: focal length 100 mm; format 1"; resolution 8.0 Megapixel; aperture F3.5 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S1MV10035-8M |
|---|---|
| Format | 1" |
| Angle of view (1") | 7.2 x 5.5 deg |
| Angle of view (2/3") | 5.0 x 3.8 deg |
| Angle of view (1/1.8") | 4.1 x 3.1 deg |
Optics
| Focal length | 100 mm |
|---|---|
| Aperture | F3.5 Manual Iris |
| M.O.D. | 2 m |
| Distortion | < 0.025% |
| Filter thread | M40.5 x 0.5 |
Sensor and imaging
| Resolution | 8.0 Megapixel |
|---|
Mechanical

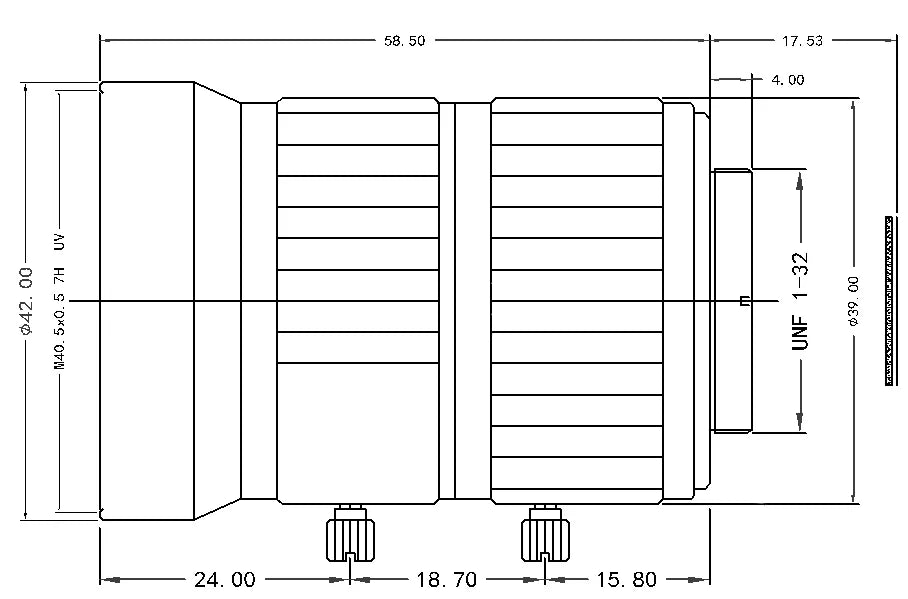

| Size | dia. 42 x 58.5 mm |
|---|---|
| Mount | C |
| Weight | 160 g |
| Shipping weight (estimated) | 0.32 kg |
