Machine vision lenses
25 mm, 1", 10 MP, C-mount Machine Vision Lens, 10 Megapixel, F1.8 Manual iris (LS-S1MV2518-10M)
Model LS-S1MV2518-10M
- Focal length25 mm
- MountC-mount
- Sensor1"
- ApertureF1.8 Manual iris
- Resolution10 Megapixel
- Field of view92.3 x 73.3 x 55 mm
$289.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.22 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, 1", 10 MP, C-mount Machine Vision Lens. High resolution: 10 megapixel cover all 4K & 1080P. Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: -1.53% low distortion use machine vision ITS. At a glance: focal length 25 mm; format 1"; resolution 10 Megapixel; aperture F1.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S1MV2518-10M |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 36 x 29 x 22 deg |
| Angle of view (1/2", DxHxV) | 18.3 x 14.6 x 11 deg |
| Angle of view (1/2", DxHxV, second row as printed) | 13.7 x 11 x 8.2 deg |
| Notes | Can be used for 10MP camera |
Optics
| Focal length | 25 mm |
|---|---|
| Back focal length | 12.68 mm |
| Aperture | F1.8 Manual iris |
| Field of view (1", DxHxV, distance not stated) | 92.3 x 73.3 x 55 mm |
| Field of view (1/2", DxHxV, distance not stated) | 45.4 x 36.3 x 27.2 mm |
| Field of view (1/2", DxHxV, second row, distance not stated) | 34 x 27.2 x 20.4 mm |
| M.O.D. | 0.15 m |
| Distortion | -1.53%@1"; -0.38%@1/2";-0.22%@1/3" |
| Filter thread | M30.5 x 0.5 mm |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|
Mechanical

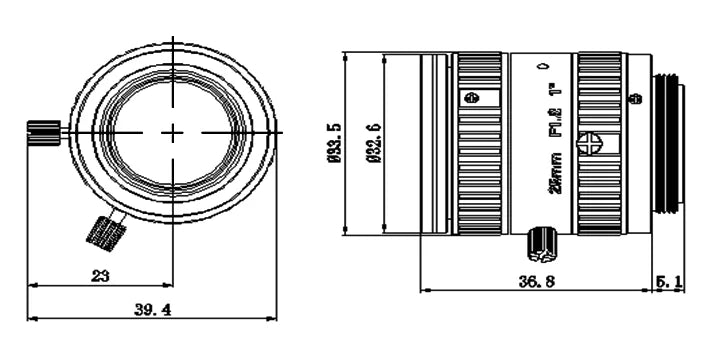

| Size | dia. 33.5 x 36.8 mm |
|---|---|
| Optical total length | 48.94 mm |
| Mount | C |
| Weight | 87 g |
| Shipping weight (estimated) | 0.22 kg |
