Machine vision lenses
25 mm, 1", 5 MP, C-mount Machine Vision Lens, 0.0325x ~ 0.27x (LS-S1MV2514-5MC)
Model LS-S1MV2514-5MC
- Focal length25 mm
- Magnification0.0325x ~ 0.27x
- MountC-mount
- Sensor1"
- ApertureF1.4 Manual iris
- Resolution5.0 Megapixel
$199.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.27 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, 1", 5 MP, C-mount Machine Vision Lens. 25 mm F1.4 5 megapixel 1" machine vision (FA) lens with 0.1% distortion and manual iris, C mount; the 1" format also covers 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification 0.0325x ~ 0.27x; focal length 25 mm; format 1"; resolution 5.0 Megapixel; aperture F1.4 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S1MV2514-5MC |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 35 x 29 x 22 deg |
| Angle of view (2/3", DxHxV) | 25 x 20 x 16 deg |
| Angle of view (1/2", DxHxV) | 19 x 15 x 12 deg |
Optics
| Magnification | 0.0325x ~ 0.27x |
|---|---|
| Focal length | 25 mm |
| Aperture | F1.4 Manual iris |
| M.O.D. | 0.1 m |
| Distortion | 0.1% |
| Back focal length | 12.97 mm |
| Filter thread | M40.5 x 0.5 |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

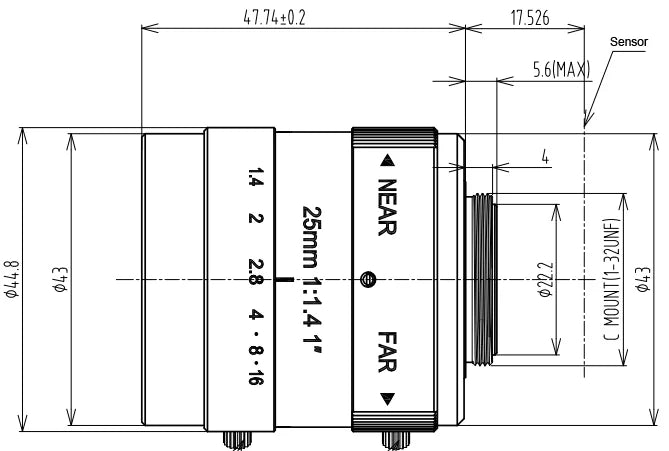

Mechanical
| Size | dia. 44.8 x 53.3 mm |
|---|---|
| Mount | C |
| Weight | 120 g |
| Optical total length | 65.2 mm |
| Shipping weight (estimated) | 0.27 kg |
