Machine vision lenses
20 mm, 1", 8 MP, C-mount Machine Vision Lens (LS-S1MV2016-8M)
Model LS-S1MV2016-8M
- Focal length20 mm
- MountC-mount
- Sensor1"
- ApertureF1.6 ~ C Manual iris
- Resolution8.0 MP
$199.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
20 mm, 1", 8 MP, C-mount Machine Vision Lens. 20 mm, 1" 8 MP C-mount machine vision / FA lens with -0.93% distortion and manual iris (F1.6). Covers 1", 3/4", 2/3", 1/1.8" and 1/2" cameras for automation, ITS/LPR and inspection. At a glance: focal length 20 mm; format 1"; resolution 8.0 MP; aperture F1.6 ~ C Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S1MV2016-8M |
|---|---|
| Format | 1" |
| Angle of view (1") | 35.4 x 26.8 deg |
Optics
| Focal length | 20 mm |
|---|---|
| Aperture | F1.6 ~ C Manual iris |
| M.O.D. | 0.1 m |
| Distortion | -0.93% |
| Filter thread | M46 x P0.75 |
Sensor and imaging
| Resolution | 8.0 MP |
|---|
Mechanical

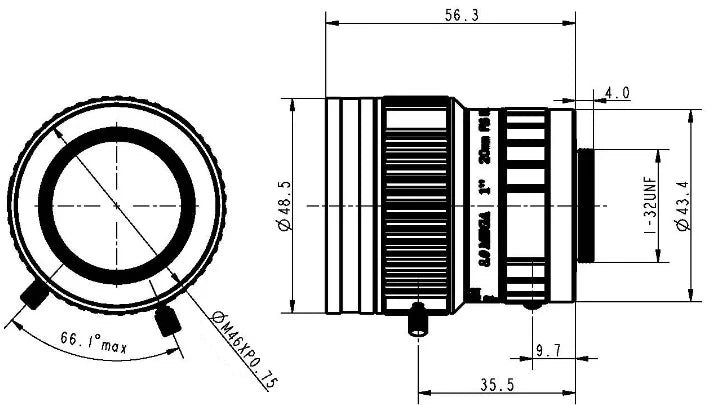

| Size | dia. 48.5 x 56.3 mm |
|---|---|
| Mount | C |
| Weight | 110 g |
| Shipping weight (estimated) | 0.25 kg |
