Machine vision lenses
12 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.0136x ~ -0.0106x (LS-S1MV1214-5MC)
Model LS-S1MV1214-5MC
- Focal length12 mm
- Magnification-0.0136x ~ -0.0106x
- MountC-mount
- Sensor1"
- ApertureF1.4 Manual iris
- Resolution5.0 Megapixel
$189.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.26 kg shipping weight
Volume pricing, Net 30 or a formal quote?
12 mm, 1", 5 MP, C-mount Machine Vision Lens. 12 mm F1.4 5 megapixel 1" machine vision (FA) lens with 1.8% distortion and manual iris, C mount; the 1" format also covers 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification -0.0136x ~ -0.0106x; focal length 12 mm; format 1"; resolution 5.0 Megapixel; aperture F1.4 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S1MV1214-5MC |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 66 x 54.5 x 32 deg |
| Angle of view (2/3", DxHxV) | 47.5 x 38.5829 deg |
| Angle of view (1/2", DxHxV) | 35.7 x 28.8 x 21.7 deg |
Optics
| Magnification | -0.0136x ~ -0.0106x |
|---|---|
| Focal length | 12 mm |
| Aperture | F1.4 Manual iris |
| M.O.D. | 0.1 m |
| Distortion | 1.8% |
| Back focal length | 15.7 mm |
| Filter thread | M46 x 0.75 |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

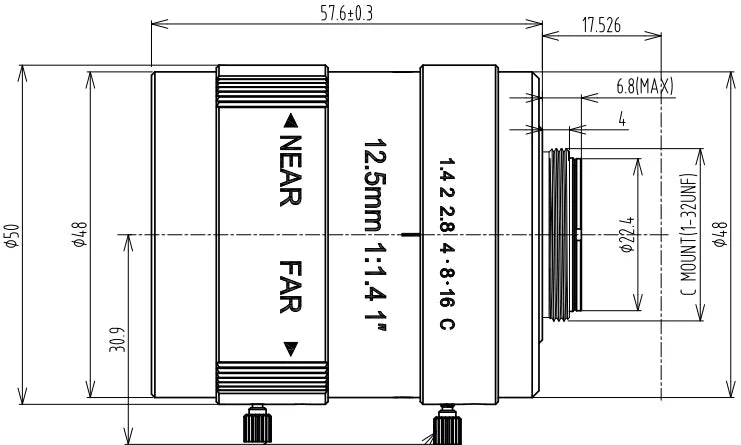

Mechanical
| Size | dia. 50 x 64.4 mm |
|---|---|
| Mount | C |
| Weight | 115 g |
| Optical total length | 75.1 mm |
| Shipping weight (estimated) | 0.26 kg |
