Camera stands

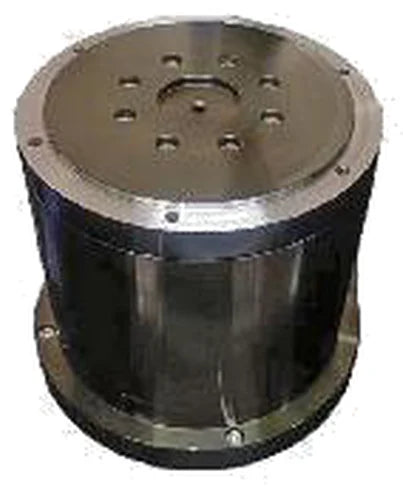

Glass / aluminum rotary inspection table parts (LS-MNT-0152, DD motor) (LS-MNT-0149)
Model LS-MNT-0149
- TypeDD motor
- Material45# steel, stainless steel top
- Speed200 rpm
- Rated torque10 Nm
$699.00
Ships in 2-3 weeks
15.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Glass / aluminum rotary inspection table parts (LS-MNT-0152, DD motor). Motorized glass / aluminum rotary table for sorting machines with direct-drive motor, aluminum disc, glass disc and air-blow parts. At a glance: size dia. 148 x 140 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0149 |
|---|---|
| Type | DD motor |
| Speed | 200 rpm |
| Rated torque | 10 Nm |
| Max. torque | 30 Nm |
| Repeat positioning accuracy | +/-2 arcsec |
| Max torque | 30 Nm |
Mechanical
| Material | 45# steel, stainless steel top |
|---|---|
| Size | dia. 148 x 140 mm |
| Weight | 11 kg |
| Shipping weight (estimated) | 15.50 kg |
