Manual XYZ + rotation stage, 80 / 90 mm (LS-MNT-0231)
Model LS-MNT-0231
- MaterialAluminum alloy, anodized
- Load39.2 N (4 kgf)
- TypeRotary stages
- DriveDifferential head
$299.00
Ships in 2-3 weeks
3.36 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Manual XYZ + rotation stage, 80 / 90 mm. Multi-axis combined precision stages with XYZ and rotation adjustment by differential heads. At a glance: load 39.2 N (4 kgf); size 90 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0231 |
|---|---|
| Drive | Differential head |
| Min. scale | 0.01 mm |
Mechanical
| Travel | XY +/-12.5 deg; Z 10; rotation 360 deg coarse, +/-5 deg fine |
|---|---|
| Load | 39.2 N (4 kgf) |
| Material | Aluminum alloy, anodized |

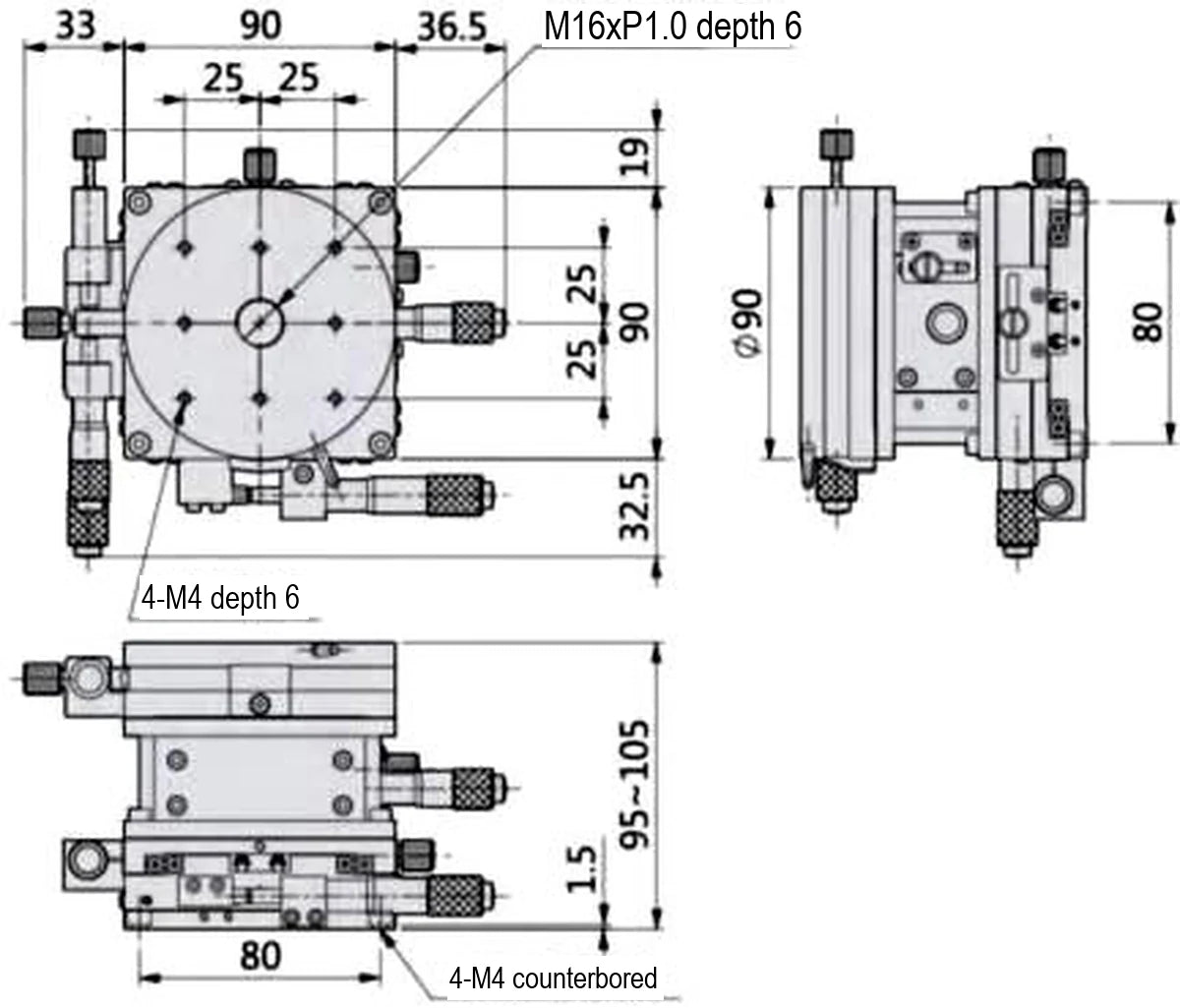

| Size | 90 mm |
| Plate size | dia. 90 mm |
| Weight | 2.33 kg |
| Shipping weight (estimated) | 3.36 kg |
