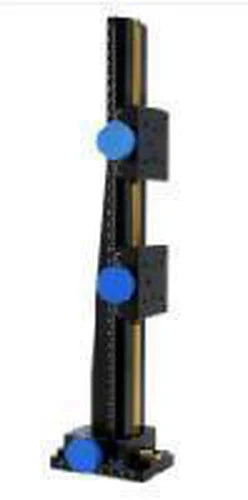

CCD camera bracket with gear-rack YZ adjustment, travel 330 (LS-MNT-0256)
Model LS-MNT-0256
- TypeCCD camera stand, gear-rack drive
- MaterialAluminum alloy, anodized
- Travel330
- DriveGear rack, manual
$289.00
Ships in 2-3 weeks
2.58 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
CCD camera bracket with gear-rack YZ adjustment. Gear-rack driven CCD camera brackets (Z columns) on 60 x 90, 60 x 150 or 40 x 100 mm bases, 150 to 1000 mm high. At a glance: travel 330; height 350 mm; plate size 60 x 90 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0256 |
|---|---|
| Drive | Gear rack, manual |
| Min. scale | 0.1 mm |
| Movement | YZ axes |
| Movement parallelism | <=0.3/30 |
| Type | CCD camera stand, gear-rack drive |
Mechanical

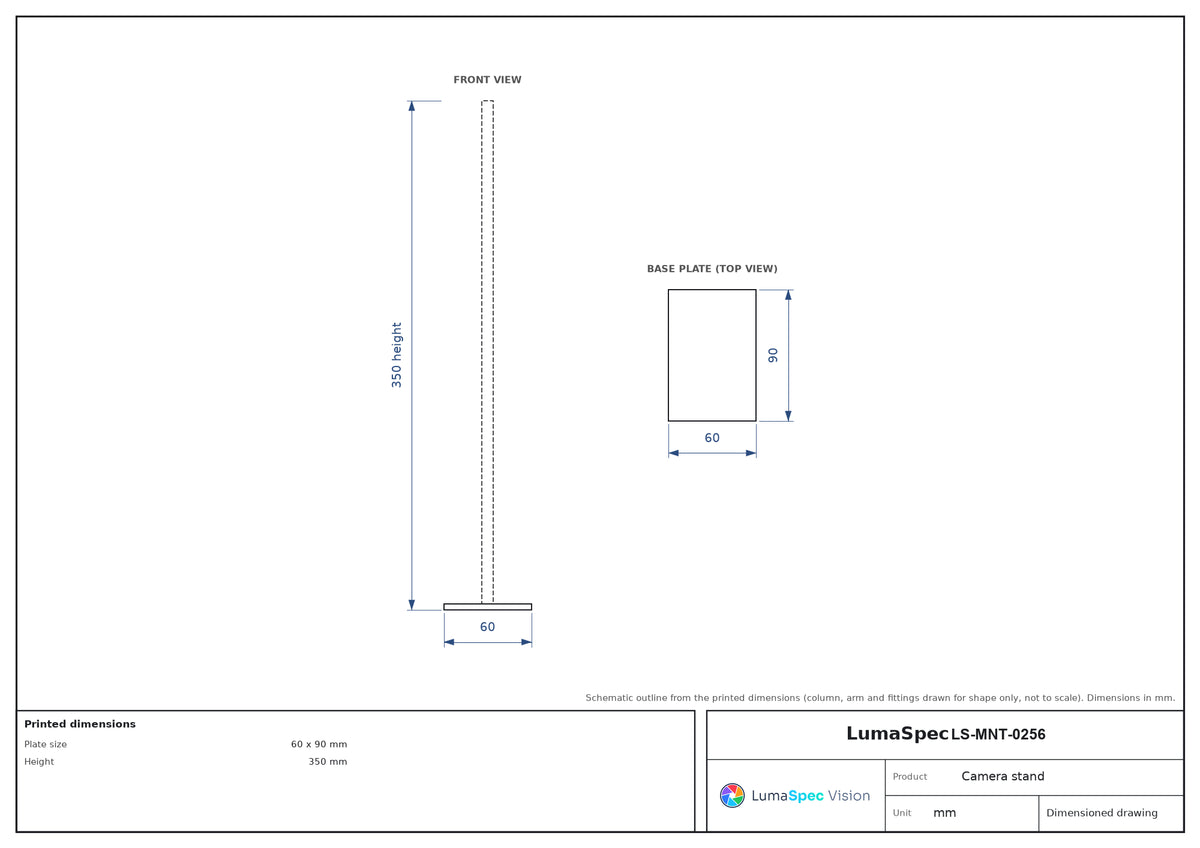

| Plate size | 60 x 90 mm |
|---|---|
| Material | Aluminum alloy, anodized |
| Height | 350 mm |
| Travel | 330 |
| Weight | 1.77 kg |
| Slide plate | 60 x 60 mm, 2x |
| Bottom base size | 60 x 90 mm |
| Shipping weight (estimated) | 2.58 kg |
