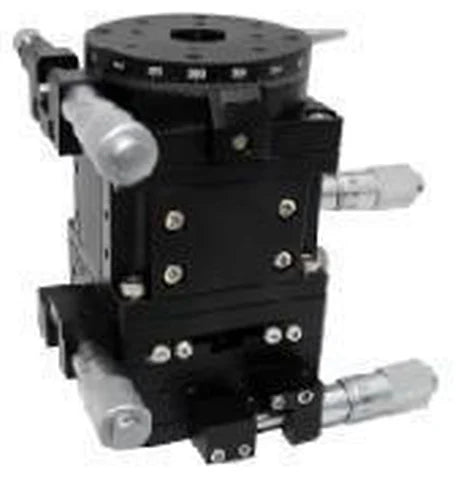

Manual XYZ + rotation stage, 40 / 60 mm (LS-MNT-0229)
Model LS-MNT-0229
- MaterialAluminum alloy, anodized
- Load29.4 N (3 kgf)
- TypeRotary stages
- DriveDifferential head
$289.00
Ships in 2-3 weeks
2.48 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Manual XYZ + rotation stage, 40 / 60 mm. Multi-axis combined precision stages with XYZ and rotation adjustment by differential heads. At a glance: load 29.4 N (3 kgf); size 60 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0229 |
|---|---|
| Drive | Differential head |
| Min. scale | 0.01 mm |
| Axis | X/Y/Z |
| Type | Multi-axis precision fine-adjustment plate |
| Movement | X/Y/Z axis |

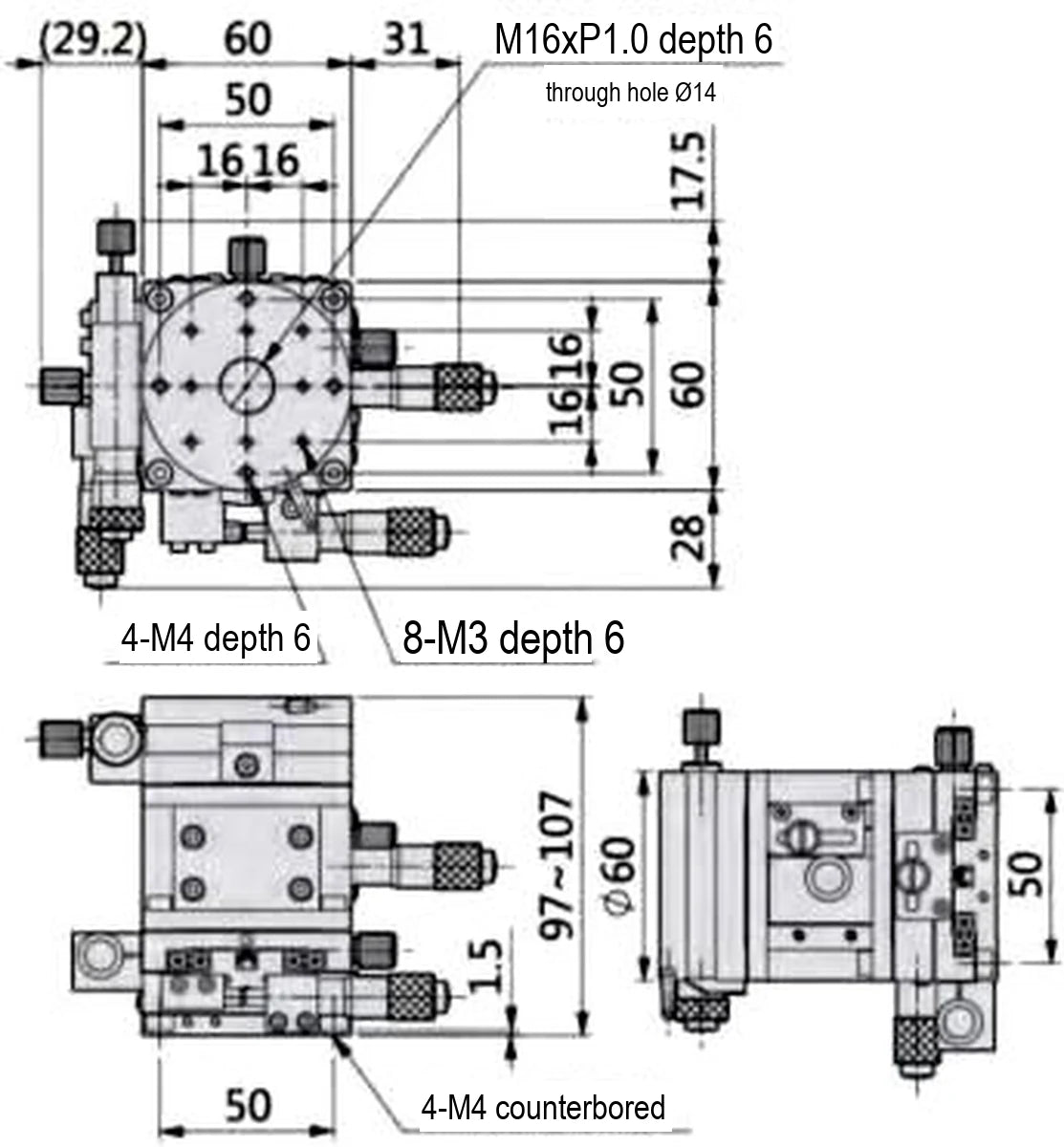

Mechanical
| Travel | XY +/-6.5 deg; Z 10; rotation 360 deg coarse, +/-5 deg fine |
|---|---|
| Material | Aluminum alloy, anodized |
| Size | 60 mm |
| Plate size | dia. 60 mm |
| Load | 29.4 N (3 kgf) |
| Weight | 1.7 kg |
| Plate | 60 x 60 mm, round table dia. 60 mm |
| Table diameter | 60 mm |
| Shipping weight (estimated) | 2.48 kg |
