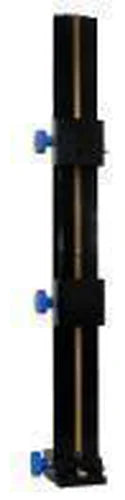

CCD camera bracket with gear-rack YZ adjustment, travel 530 (LS-MNT-0260)
Model LS-MNT-0260
- TypeCCD camera stand, gear-rack drive
- MaterialAluminum alloy, anodized
- Travel530
- DriveGear rack, manual
$299.00
Ships in 2-3 weeks
3.28 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
CCD camera bracket with gear-rack YZ adjustment. Gear-rack driven CCD camera brackets (Z columns) on 60 x 90, 60 x 150 or 40 x 100 mm bases, 150 to 1000 mm high. At a glance: travel 530; height 500 mm; plate size 60 x 90 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0260 |
|---|---|
| Drive | Gear rack, manual |
| Min. scale | 0.1 mm |
| Movement | YZ axes |
| Movement parallelism | <=0.3/60 |
| Type | CCD camera stand, gear-rack drive |
Mechanical

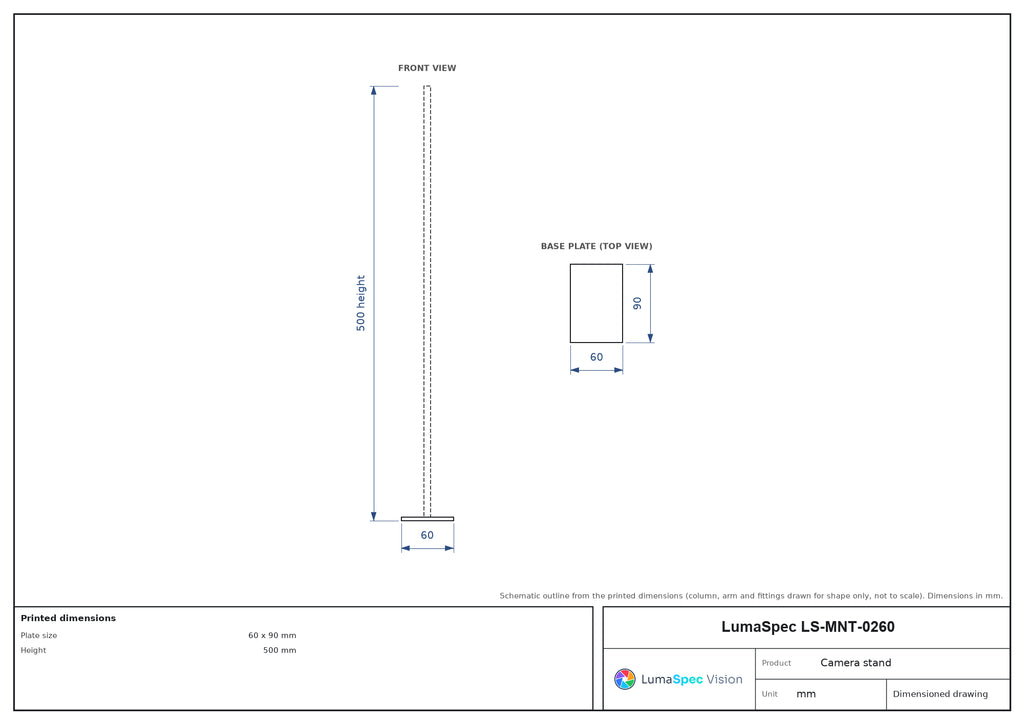

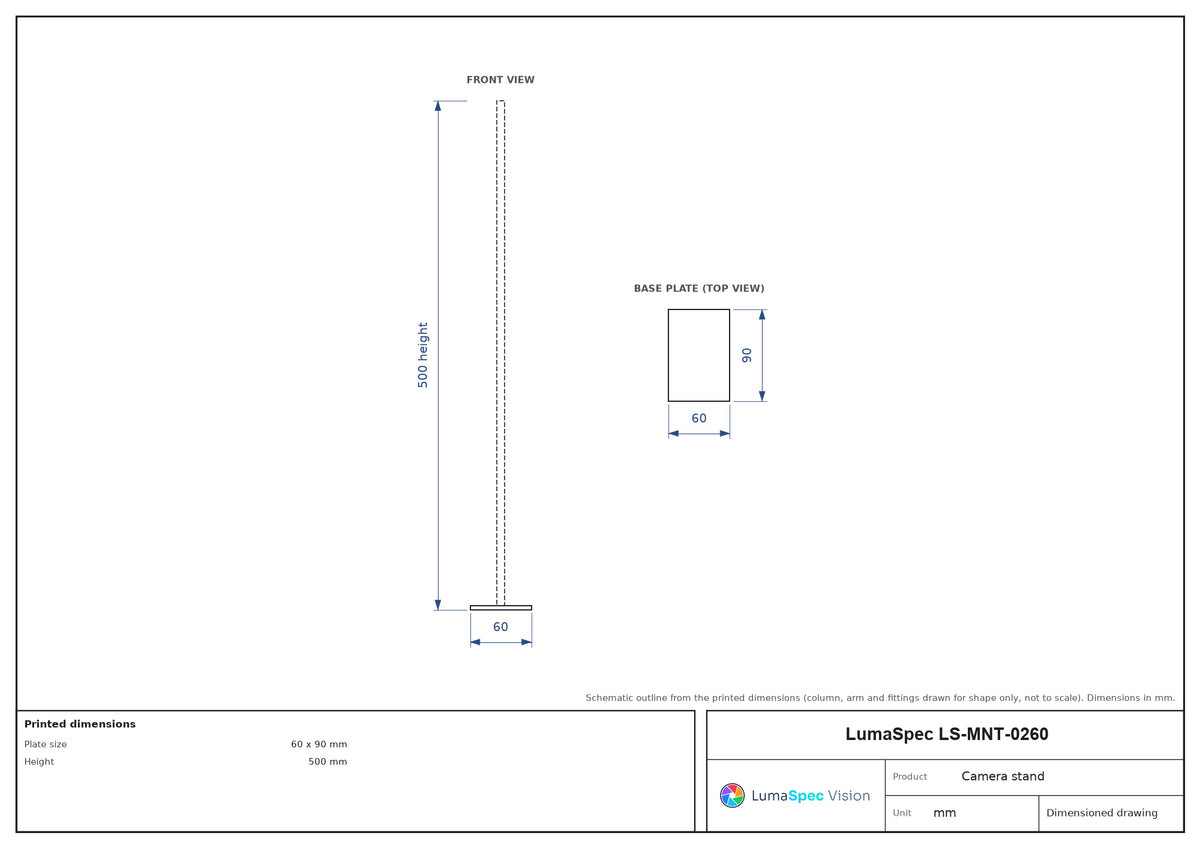

| Plate size | 60 x 90 mm |
|---|---|
| Material | Aluminum alloy, anodized |
| Height | 500 mm |
| Travel | 530 |
| Weight | 2.27 kg |
| Bottom base size | 60 x 90 mm |
| Shipping weight (estimated) | 3.28 kg |
