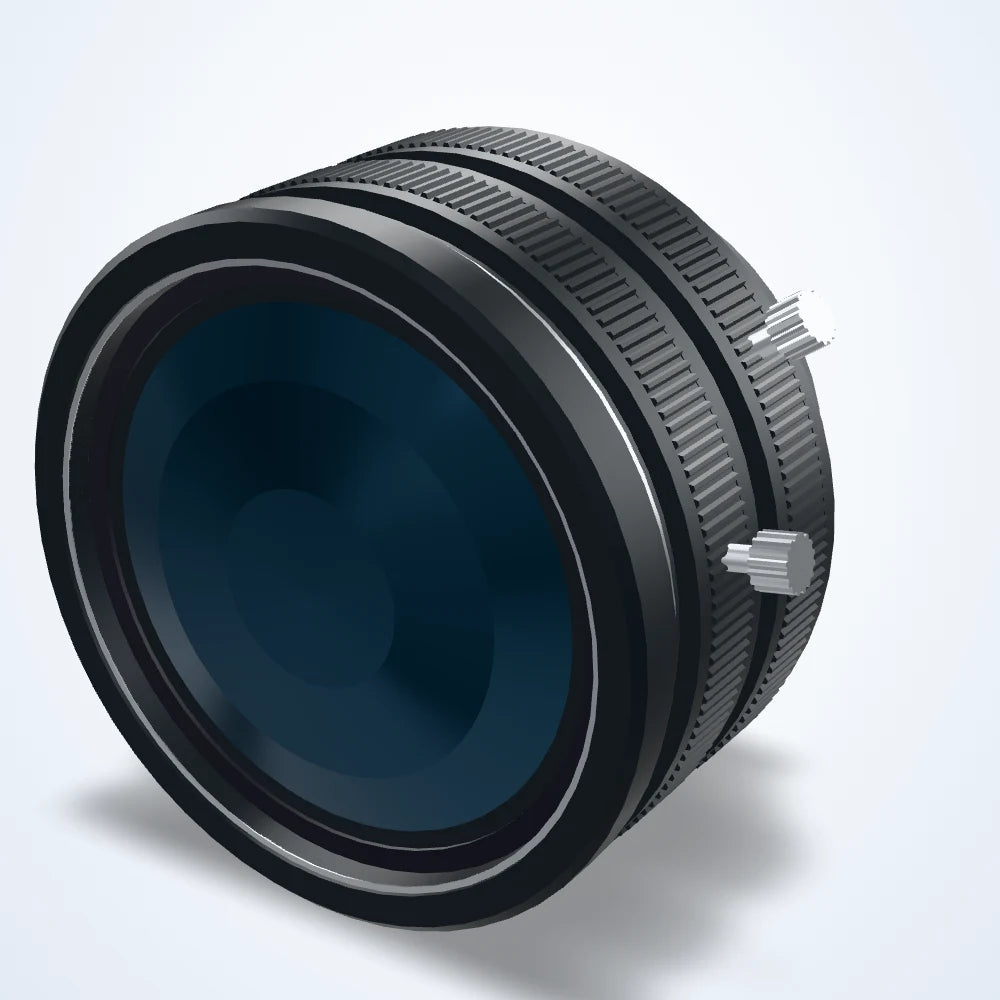

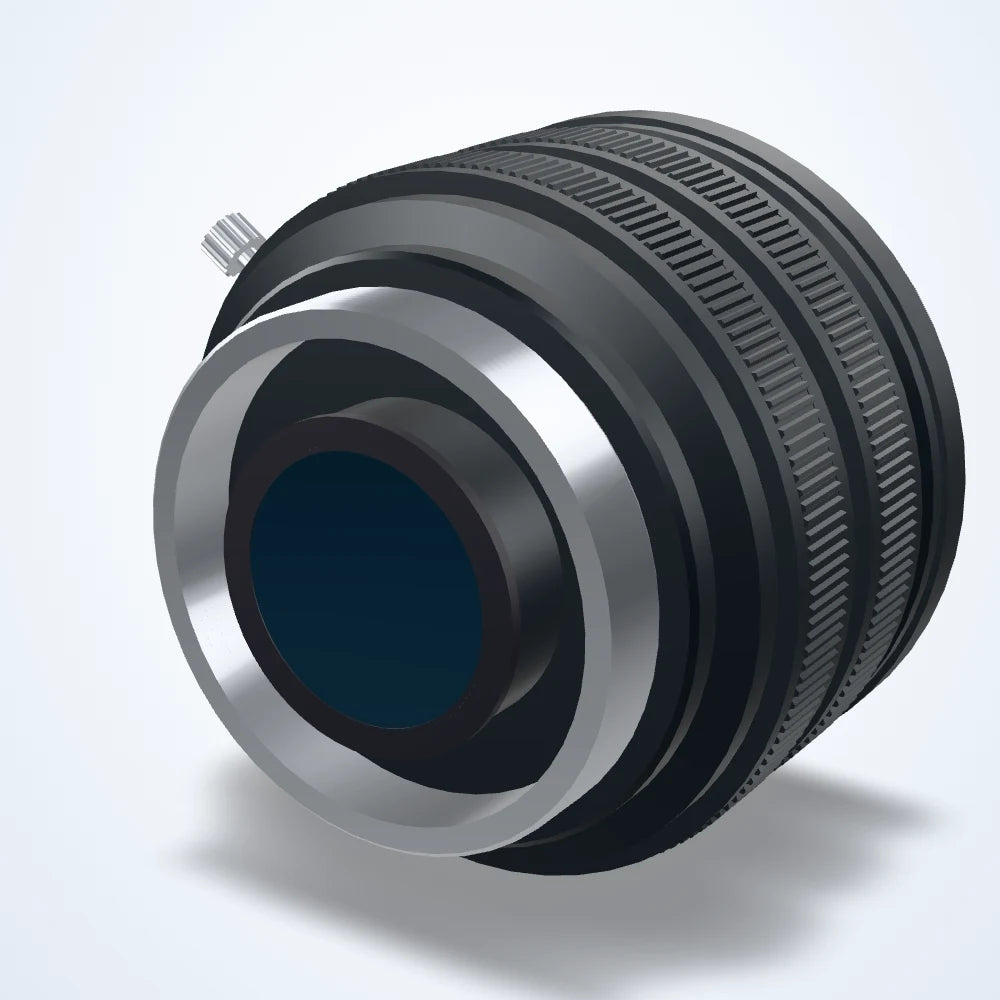

Rendered illustration: the actual product may differ in appearance.
Line scan lenses
5.5K line scan lens, 50 mm, 0.094x, F4.0, M42, BFL 5.9 mm (LS-LSL-0088)
Model LS-LSL-0088
- Focal length50 mm
- Magnification0.094x
- MountM42
- SensorAPS-C
- Working distance600-700 mm
- ApertureF4.0
$110.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5.5K line scan lens, 50 mm for line-scan cameras on webs and conveyors. Focal length 50 mm; magnification 0.094x; working distance 600 mm; aperture F4.0; M42 mount; image circle 30 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0088 |
|---|---|
| Min. object distance | 574 mm |
Optics
| Focal length | 50 mm |
|---|---|
| Magnification | 0.094x |
| Aperture | F4.0 |
| Distortion | -0.61% |
| Working distance | 600-700 mm |
Sensor and imaging
| Resolution | 5.5K5μ |
|---|---|
| Sensor format | Ø30 |
Mechanical
| Flange back length | 5.9 mm |
|---|---|
| Mount | M42-mount |
| Shipping weight | 1.00 kg |
