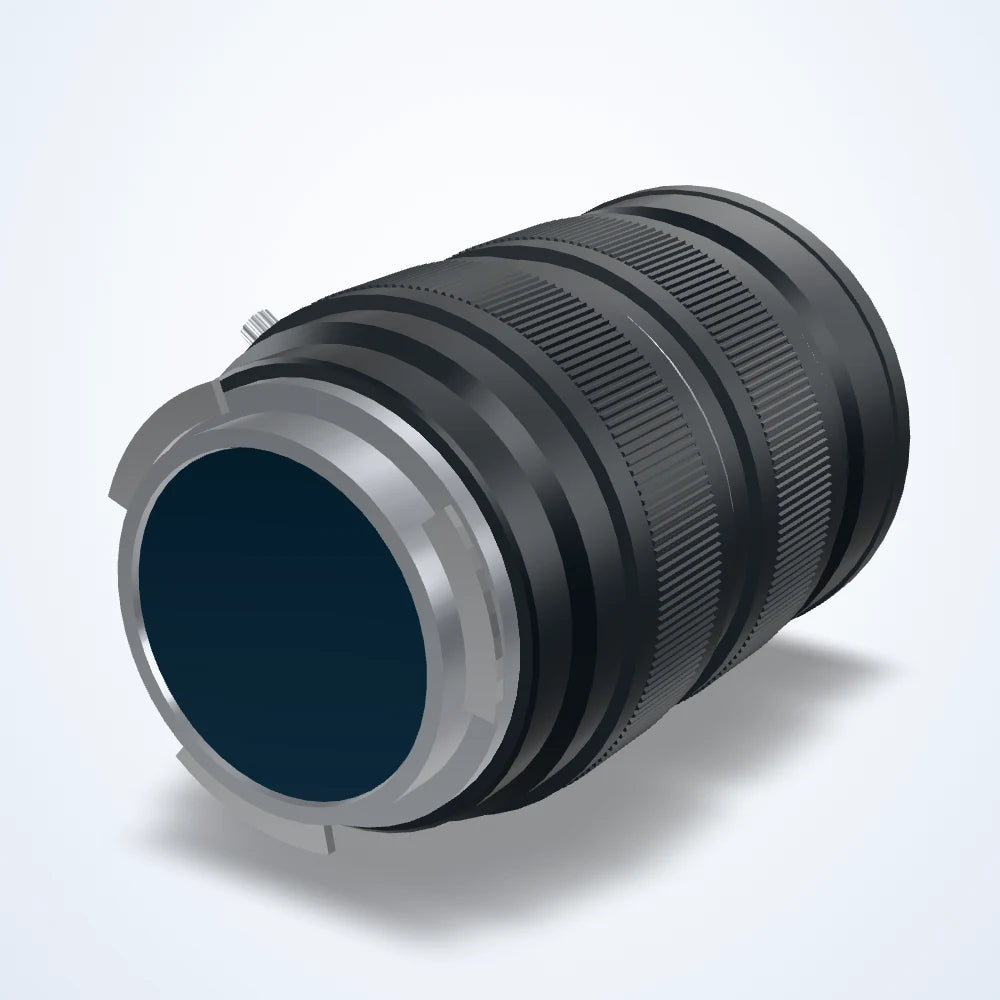

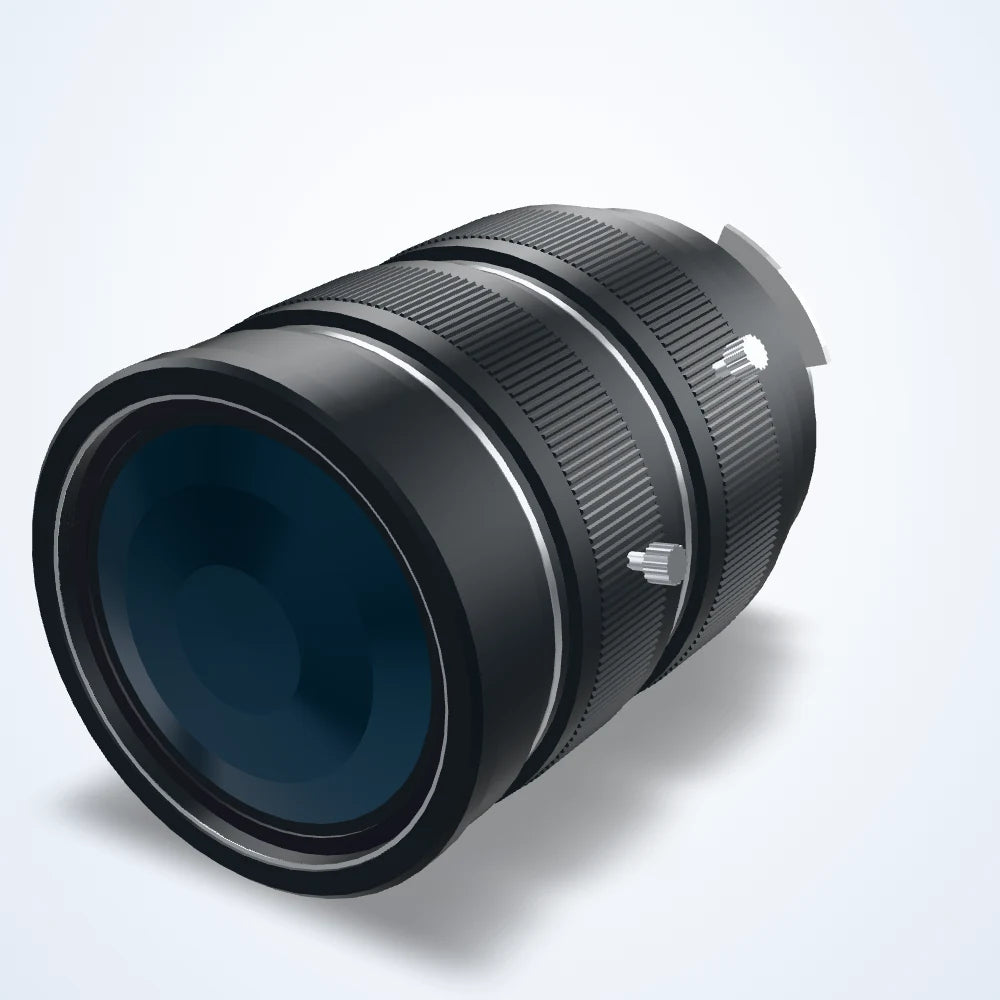

Line scan lens (series view)
  • Line scan lens (series view)
  • Line scan lens (series view)
  • 4K line scan lens, 35 mm, F2.5, F-mount

Rendered illustration: the actual product may differ in appearance.

Line scan lenses

4K line scan lens, 35 mm, F2.5, F-mount (LS-LSL-0075)

Model LS-LSL-0075

  • Focal length35 mm
  • MountF-mount
  • SensorFull frame
  • ApertureF2.5-F22
  • Resolution5 MP
$252.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4K line scan lens, 35 mm, F2.5, F-mount (LS-LSL-0075)LS-LSL-0075

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4K line scan lens, 35 mm for line-scan cameras on webs and conveyors. Focal length 35 mm; resolves 5 MP; aperture F2.5; F-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0075
Min. object distance0.3 m
Angle of viewD:52.3° H:/° V:/°

Optics

Focal length35 mm
ApertureF2.5-F22
Back focal length34.35 mm
Distortion<-3%
FocusManual
Filter threadM52 × 0.75

Sensor and imaging

Resolution5 MP
Sensor format43 mm

Light

Wavelength range400-950 nm

Environment and compliance

Operating temperature-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

MountF-mount

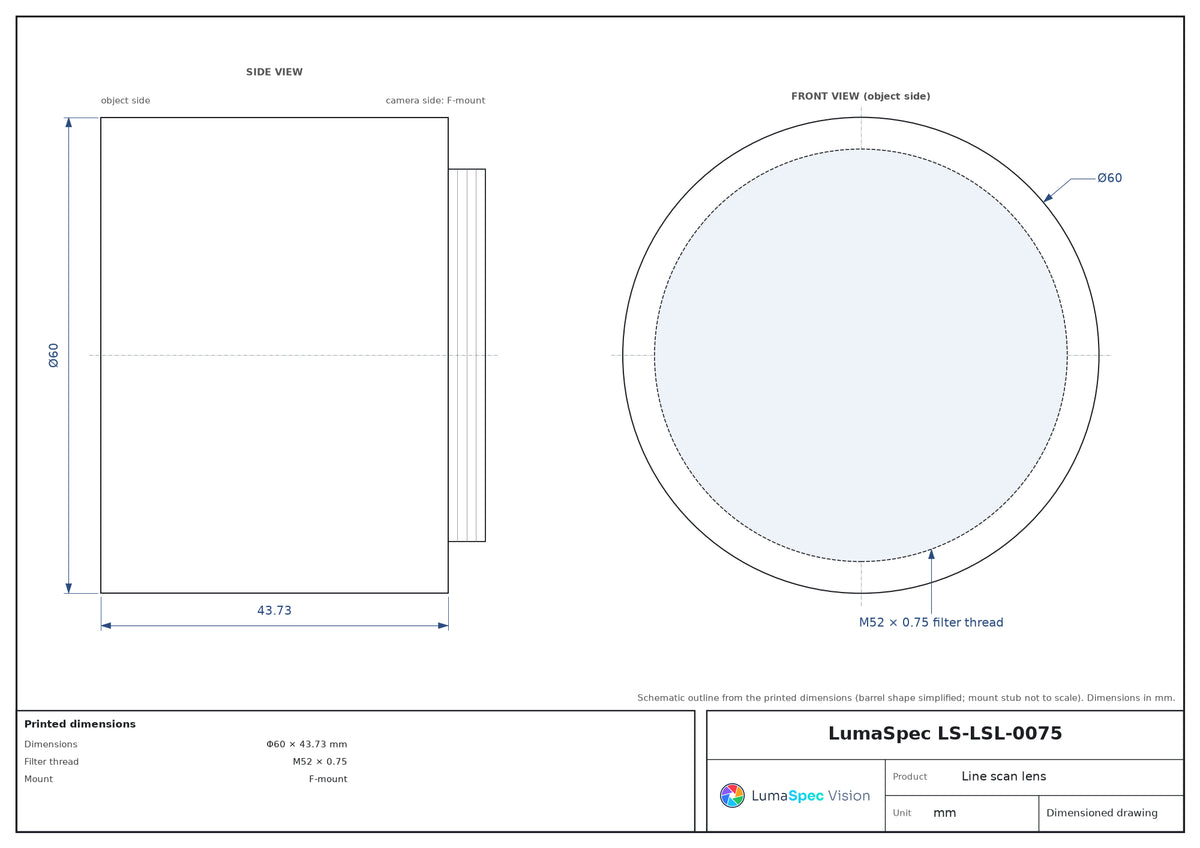

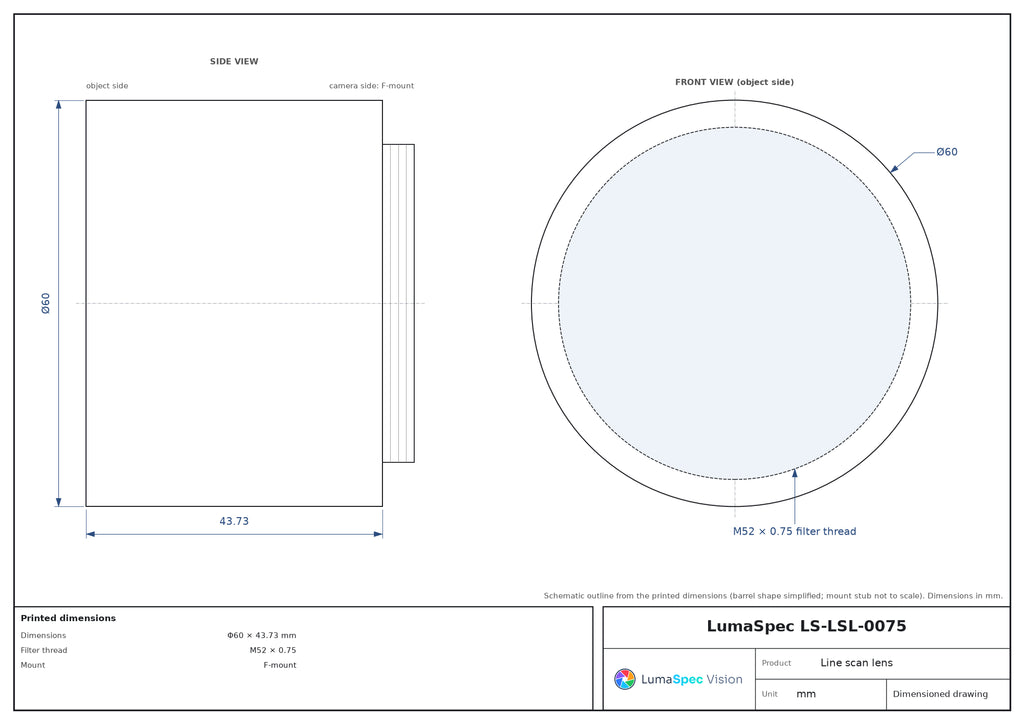

DimensionsΦ60 × 43.73 mm
Weight199.5 g

Other models in the 4K line scan lenses (LS-LSL-S01) series

See all 65 models
ModelSize / key dataPriceAvailabilityLink
LS-LSL-0091 50 mm, M42 $110.00 Ships in 3-4 weeks View
LS-LSL-0090 50 mm, M42 $110.00 Ships in 3-4 weeks View
LS-LSL-0092 54.3 mm $110.00 Ships in 3-4 weeks View
LS-LSL-0093 54.3 mm, M42 $110.00 Ships in 3-4 weeks View
LS-LSL-0094 54.3 mm, M42 $110.00 Ships in 3-4 weeks View
LS-LSL-0139 50 mm $200.00 Ships in 3-4 weeks View
LS-LSL-0077 50 mm, F-mount $200.00 Ships in 3-4 weeks View
LS-LSL-0078 50 mm, M42 $200.00 Ships in 3-4 weeks View
LS-LSL-0071 24 mm, F-mount $252.00 Ships in 3-4 weeks View
LS-LSL-0072 24 mm, M42 $252.00 Ships in 3-4 weeks View
LS-LSL-0073 28 mm, F-mount $252.00 Ships in 3-4 weeks View
LS-LSL-0074 28 mm, M42 $252.00 Ships in 3-4 weeks View
LS-LSL-0076 35 mm, M42 $252.00 Ships in 3-4 weeks View
LS-LSL-0081 20 mm, M42 $585.00 Ships in 3-4 weeks View
LS-LSL-0082 29 mm $585.00 Ships in 3-4 weeks View
LS-LSL-0083 35 mm $585.00 Ships in 3-4 weeks View
LS-LSL-0086 40 mm $585.00 Ships in 3-4 weeks View
LS-LSL-0095 60 mm $585.00 Ships in 3-4 weeks View
LS-LSL-0096 80 mm, M42 $585.00 Ships in 3-4 weeks View
LS-LSL-0098 80 mm $585.00 Ships in 3-4 weeks View
LS-LSL-0085 40 mm, M72 $640.00 Ships in 3-4 weeks View
LS-LSL-0097 80 mm $770.00 Ships in 3-4 weeks View
LS-LSL-0100 95 mm $815.00 Ships in 3-4 weeks View
LS-LSL-0103 116 mm $890.00 Ships in 3-4 weeks View
