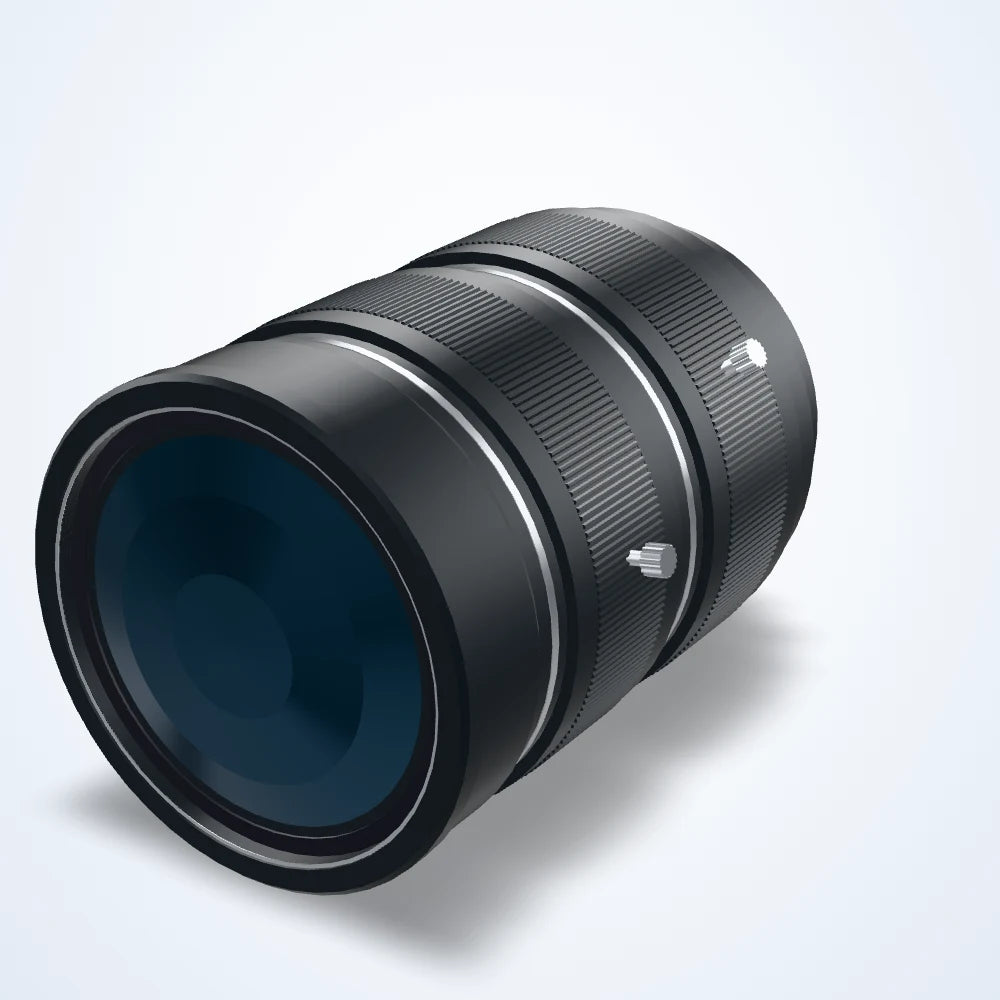

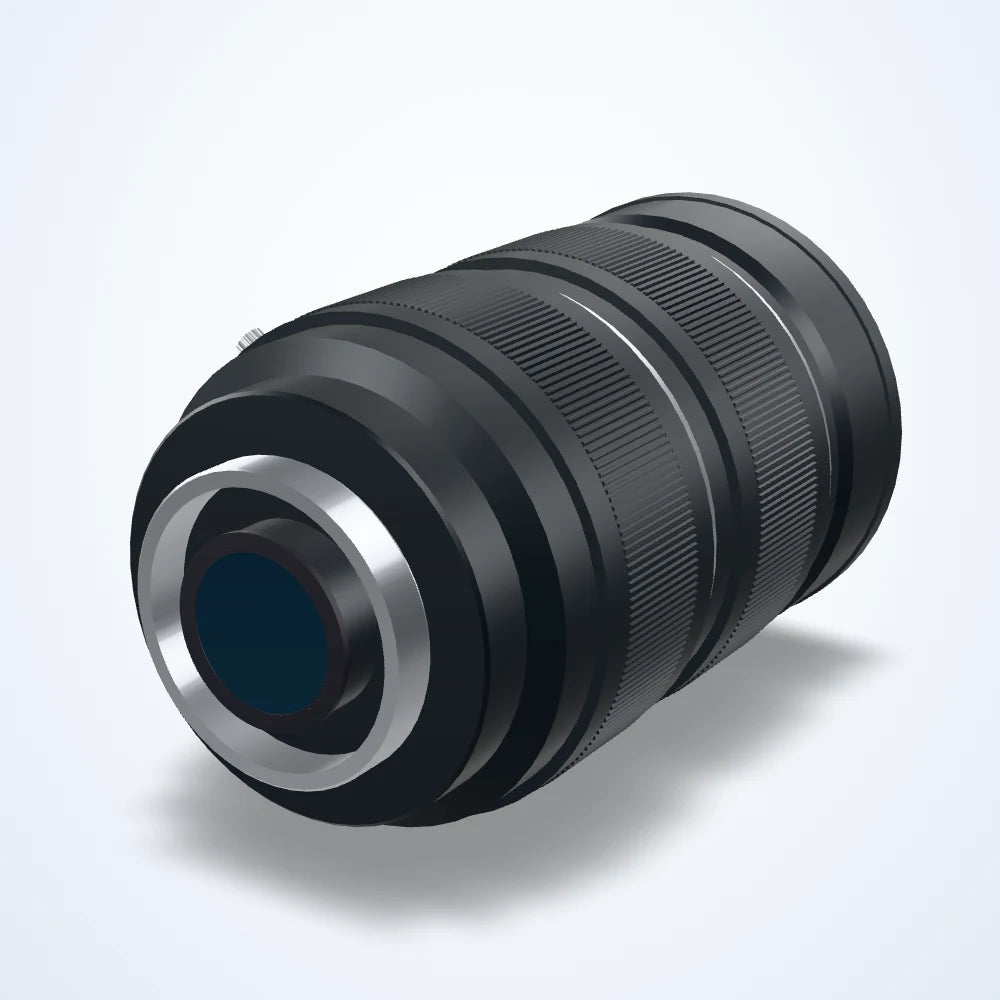

Rendered illustration: the actual product may differ in appearance.

Line scan lenses

4K line scan lens, 29 mm, 0.1x, F4.0 (LS-LSL-0082)

Model LS-LSL-0082

  • Focal length29 mm
  • Magnification0.1x
  • MountV-mount
  • SensorAPS-C
  • Working distance299.7 mm
  • ApertureF4.0
$585.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4K line scan lens, 29 mm, 0.1x, F4.0 (LS-LSL-0082)LS-LSL-0082

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4K line scan lens, 29 mm for line-scan cameras on webs and conveyors. Focal length 29 mm; magnification 0.1x; working distance 299.7 mm; aperture F4.0.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0082
Conjugate distance619.1 mm

Optics

Focal length29 mm
Magnification0.1x
Working distance299.7 mm
ApertureF4.0
Distortion0.1%
FocusManual

Sensor and imaging

Resolution4k7μ
Sensor format30 mm

Light

Wavelength range400-950 nm

Environment and compliance

Operating temperature-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

Flange back length26 mm
MountV-mount
Shipping weight1.00 kg
