  • 4K line scan lens, 50 mm, F1.8, M42

Rendered illustration: the actual product may differ in appearance.

Line scan lenses

4K line scan lens, 50 mm, F1.8, M42 (LS-LSL-0078)

Model LS-LSL-0078

  • Focal length50 mm
  • MountM42
  • SensorFull frame
  • ApertureF1.8-F22
  • Resolution5 MP
$200.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4K line scan lens, 50 mm, F1.8, M42 (LS-LSL-0078)LS-LSL-0078

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4K line scan lens, 50 mm for line-scan cameras on webs and conveyors. Focal length 50 mm; resolves 5 MP; aperture F1.8; M42 mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0078
Min. object distance0.4 m
Angle of viewD:45° H:/° V:/°

Optics

Focal length50 mm
ApertureF1.8-F22
Back focal length36.33 mm
Distortion<1%
FocusManual
Filter threadM52 × 0.75

Sensor and imaging

Resolution5 MP
Sensor format43 mm

Light

Wavelength range400-950 nm

Environment and compliance

Operating temperature-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

MountM42× 1(T)

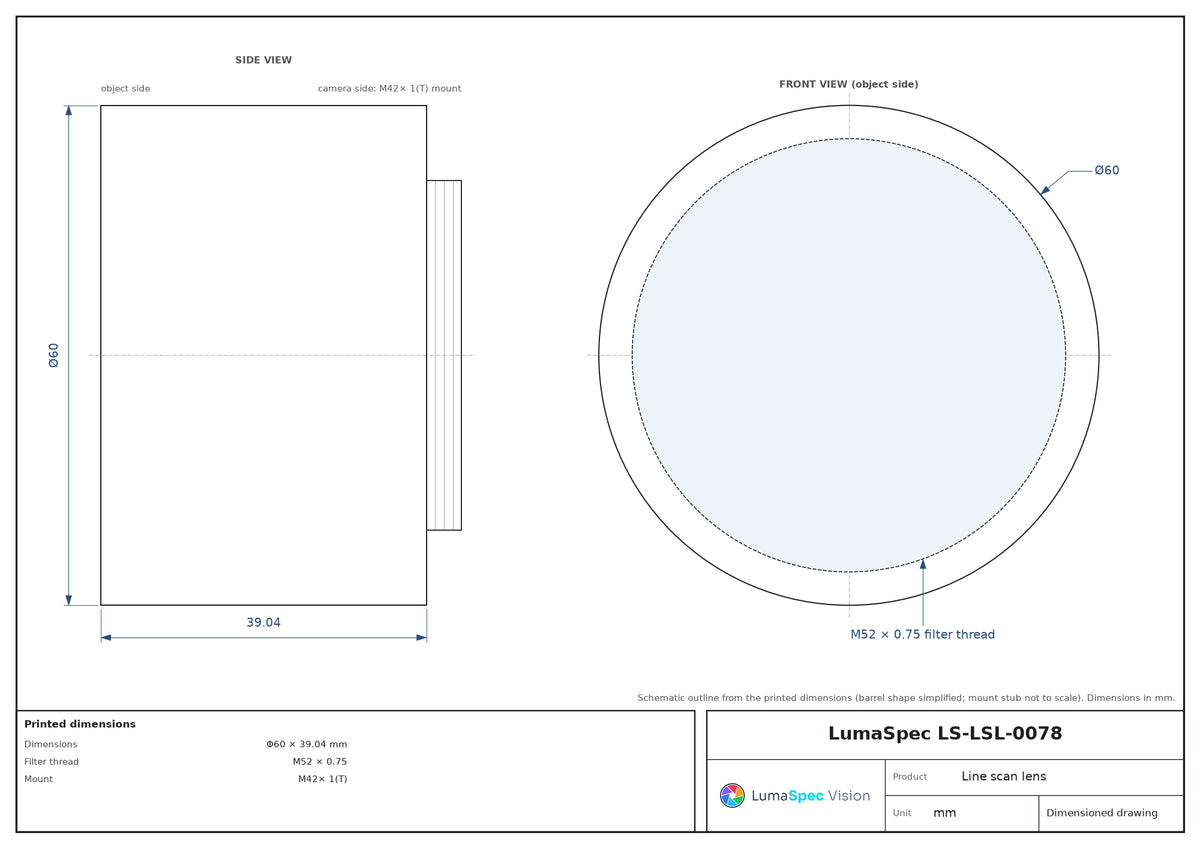

DimensionsΦ60 × 39.04 mm
Weight199.5 g
