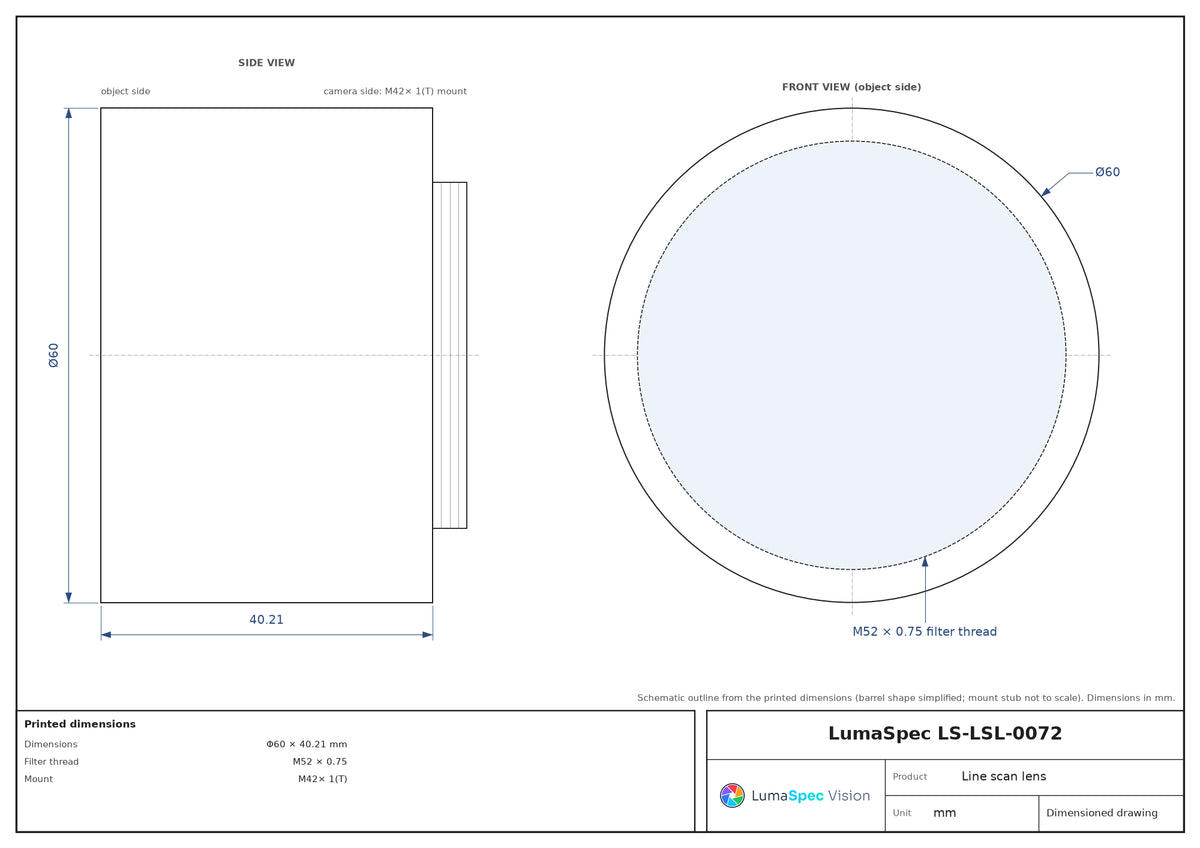

Rendered illustration: the actual product may differ in appearance.
Line scan lenses
4K line scan lens, 24 mm, F2.8, M42 (LS-LSL-0072)
Model LS-LSL-0072
- Focal length24 mm
- MountM42
- SensorFull frame
- ApertureF2.8-F22
- Resolution5 MP
$252.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4K line scan lens, 24 mm for line-scan cameras on webs and conveyors. Focal length 24 mm; resolves 5 MP; aperture F2.8; M42 mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0072 |
|---|---|
| Min. object distance | 0.15 m |
| Angle of view | D:84° H:/° V:/° |
Optics
| Focal length | 24 mm |
|---|---|
| Aperture | F2.8-F22 |
| Back focal length | 36 mm |
| Distortion | <-4% |
| Focus | Manual |
| Filter thread | M52 × 0.75 |
Sensor and imaging
| Resolution | 5 MP |
|---|---|
| Sensor format | 43 mm |
Light
| Wavelength range | 400-950 nm |
|---|
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|
Mechanical
| Mount | M42× 1(T) |
|---|---|
| Dimensions | Φ60 × 40.21 mm |
| Weight | 200 g |
