Object-Side Telecentric Lens, 0.8x, 200 mm WD, 1" (LS-KY-08-200)
  • Object-Side Telecentric Lens, 0.8x, 200 mm WD, 1" (LS-KY-08-200)

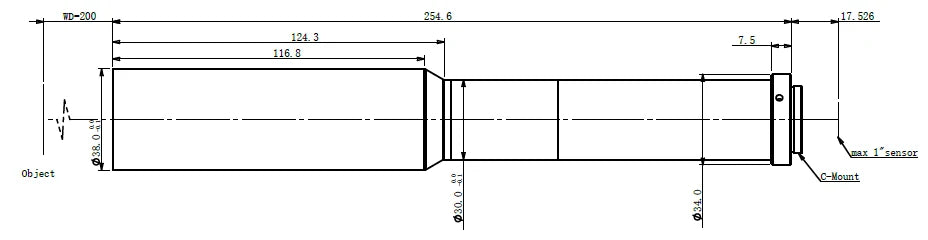

  • LS-KY-08-200 dimensions (mm)

Telecentric lenses

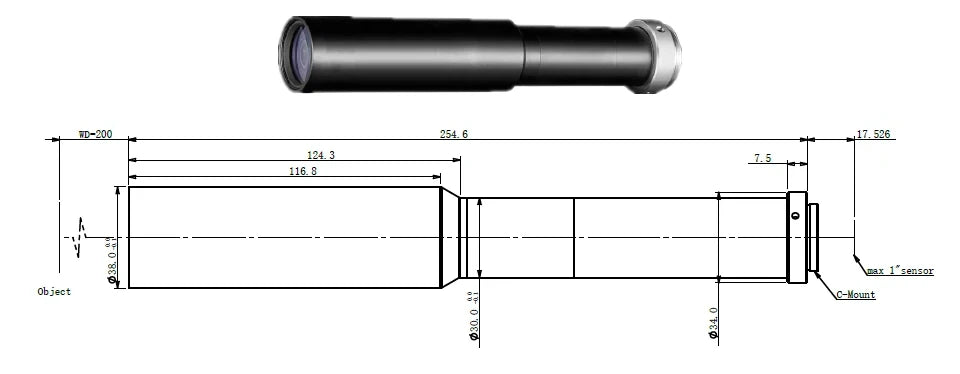

Object-Side Telecentric Lens, 0.8x, 200 mm WD, 1" (LS-KY-08-200)

Model LS-KY-08-200

  • Magnification0.8
  • MountC-mount
  • Sensor1"
  • Working distance200 mm
  • ApertureF14
$789.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Object-Side Telecentric Lens, 0.8x, 200 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KY-08-200

Optics

Magnification0.8
Working distance200 mm
Image size1"
F-numberF14
Depth of field1.6 mm
Distortion≤ 0.15%
Object-side resolution11.8 μm
Object-side telecentricity≤ 0.1°
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension254.6 mm × Φ38 mm
Shipping weight (estimated)0.66 kg
