Telecentric lenses

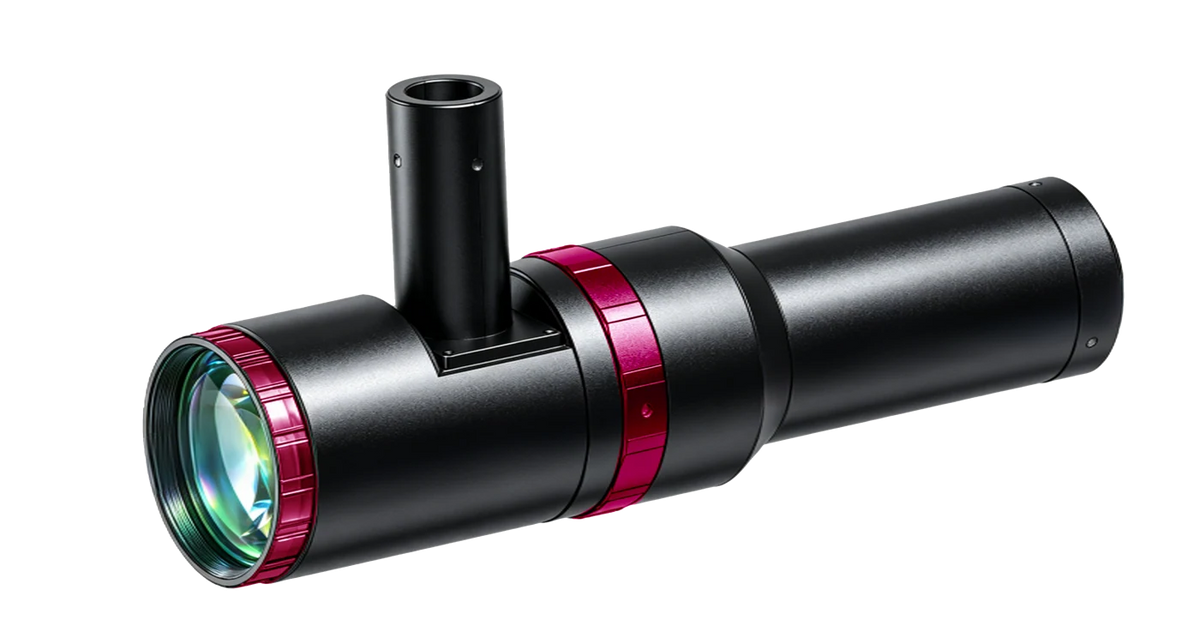

Object-Side Telecentric Lens, 4x, 60 mm WD, 1.2" (LS-KT-4-60C-G)
Model LS-KT-4-60C-G
- Magnification4
- MountC-mount
- Sensor1.2"
- Working distance60 mm
- ApertureF9.9-F32
$739.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 4x, 60 mm WD, 1.2". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.2"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KT-4-60C-G |
|---|
Optics
| Magnification | 4 |
|---|---|
| Working distance | 60 mm |
| Image size | 1.2" |
| F-number | F9.9-F32 |
| Depth of field | 0.05~0.16 mm |
| Distortion | ≤ 0.005% |
| Object-side resolution | 1.7-5.4 μm |
| Object-side telecentricity | ≤ 0.12° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

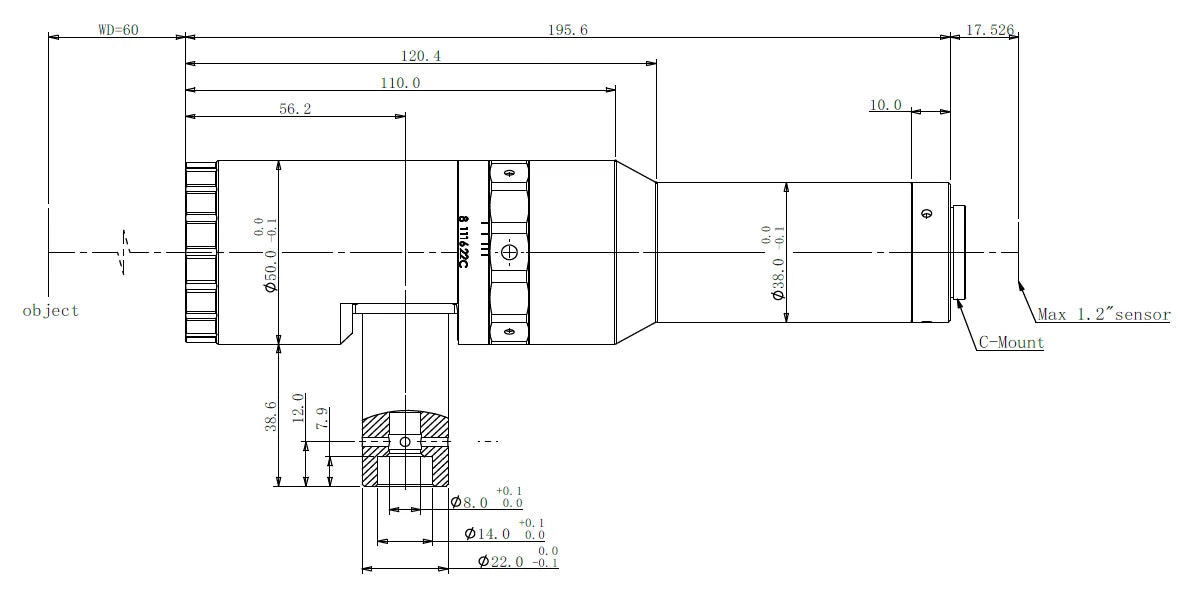

| Dimension | 195.6 mm × Φ50 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
