Telecentric lenses
Quasi-Telecentric Lens, 0.65x, 360 mm WD, 4/3" (LS-KY-065-360)
Model LS-KY-065-360
- Magnification0.65
- MountC-mount
- Sensor4/3"
- Working distance360 mm
- ApertureF36.3
$789.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?

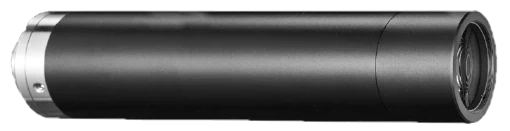

Object-Side Telecentric Lens, 0.65x, 360 mm WD, 4/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 4/3"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KY-065-360 |
|---|
Optics
| Magnification | 0.65 |
|---|---|
| Working distance | 360 mm |
| Image size | 4/3" |
| F-number | F36.3 |
| Depth of field | 6.9 mm |
| Distortion | ≤ 3.7% |
| Object-side resolution | 37.5 μm |
| Object-side telecentricity | Non-telecentric |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

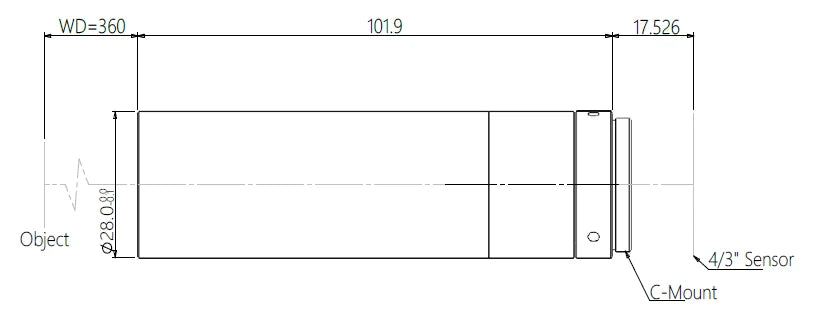

| Dimension | 101.9 mm × Φ28 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
