Telecentric lenses

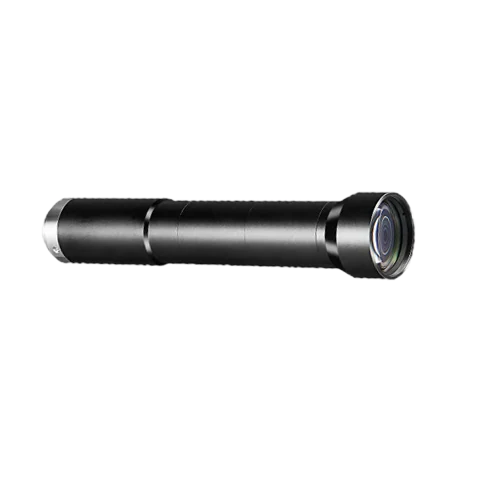

Object-Side Telecentric Lens, 1.3x, 98 mm WD, 1.1" (LS-KT-13-98)
Model LS-KT-13-98
- Magnification1.3
- MountC-mount
- Sensor1.1"
- Working distance98 mm
- ApertureF8.4
$709.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 1.3x, 98 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KT-13-98 |
|---|
Optics
| Magnification | 1.3 |
|---|---|
| Working distance | 98 mm |
| Image size | 1.1" |
| F-number | F8.4 |
| Depth of field | ±0.25 mm @F10.4 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 4.4 μm |
| Object-side telecentricity | ≤ 0.1° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

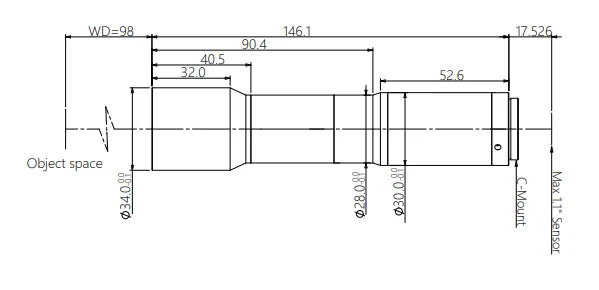

| Dimension | 146.1 mm × Φ34 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
