Cables

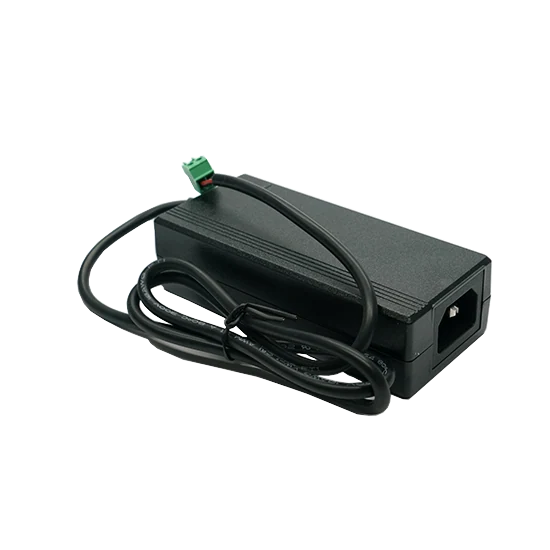

Power Cord, C14 plug to Open (2-pin), 0.8 m (LS-KPL-060F-VI)
Model LS-KPL-060F-VI
- Length0.8 m
- End AC14 plug
- End BOpen (2-pin)
- TypePower cords and supplies
$39.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Power Cord, C14 plug to Open (2-pin), 0.8 m. 12 V power adapter for device power; available in multiple specifications
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KPL-060F-VI |
|---|---|
| Packaging | Individual package |
Interfaces and I/O
| End A connector | C14 plug |
|---|---|
| End B connector | Open (2-pin) |
| Cable mechanical | 18#*2C |
| Cable color | Black |
| Applicable scenario | Static scenes |
Environment and compliance
| MTBF | 100000 hours, with test standard of MIL-HDBK-217F |
|---|---|
| Working temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Certification | UL, cUL, CB, CCC, BSMI, GS, S-MARK, RCM, KC, PSE, VCCI, EAC, NOM, BIS, CE, IC, RoHS |
Electrical
| Input voltage | 90 ~ 264 VAC |
|---|---|
| Input current | 1.7 A |
| Output power | Max. 60 W |
| Output current | 0 A to 5 A |
| Overcurrent protection | 5.8 A to 9 A |
| Overvoltage protection | Max. 19 V |
| Output voltage | 12 VDC |

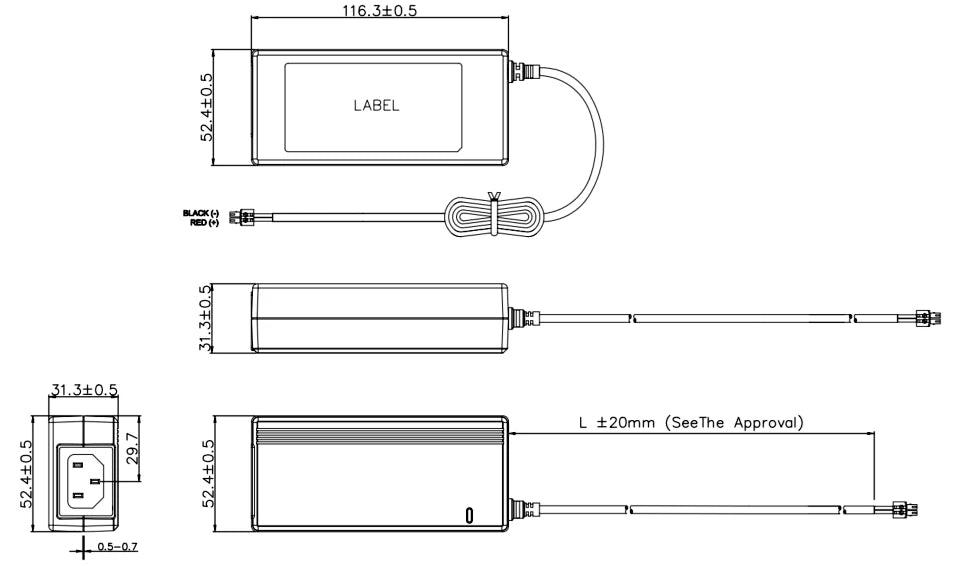

Mechanical
| Length | 0.8 m |
|---|---|
| Shipping weight (estimated) | 0.31 kg |
