Cables

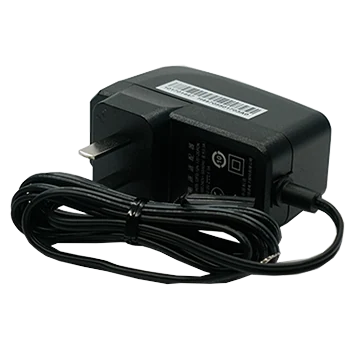

Power Cord, Two-prong AC plug (CCC standard) to DC connector (Φ5.5 mm × Φ2.1 mm × 10 mm), 0.8 m (LS-ADS-12IM-12-4-12012E-H)
Model LS-ADS-12IM-12-4-12012E-H
- Length0.8 m
- End ATwo-prong AC plug (CCC standard)
- TypePower cords and supplies
- Cable mechanical22#
$39.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Power Cord, Two-prong AC plug (CCC standard) to DC connector (Φ5.5 mm × Φ2.1 mm × 10 mm), 0.8 m. 12 V power adapter for device power; available in multiple specifications
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ADS-12IM-12-4-12012E-H |
|---|---|
| Packaging | Individual package |
Interfaces and I/O
| End A connector | Two-prong AC plug (CCC standard) |
|---|---|
| End B connector | DC connector (Φ5.5 mm × Φ2.1 mm × 10 mm) |
| Cable mechanical | 22# |
| Cable color | Black |
| Applicable scenario | Static scenes |
Environment and compliance
| MTBF | 50000 hours, with test standard of Telcordia SR-332 Issue 02 (2006) |
|---|---|
| Working temperature | –10 °C to 40 °C (14 °F to 104 °F) |
| Certification | RoHS, CCC |
Electrical
| Input voltage | 90 ~ 264 VAC |
|---|---|
| Input current | 0.3 A |
| Output power | Max. 12 W |
| Output current | 0 A to 1 A |
| Overcurrent protection | 1.1 A to 2.0 A |
| Overvoltage protection | Max. 15 V |
| Output voltage | 12 VDC |
Mechanical
| Length | 0.8 m |
|---|---|
| Shipping weight (estimated) | 0.31 kg |
