Cables

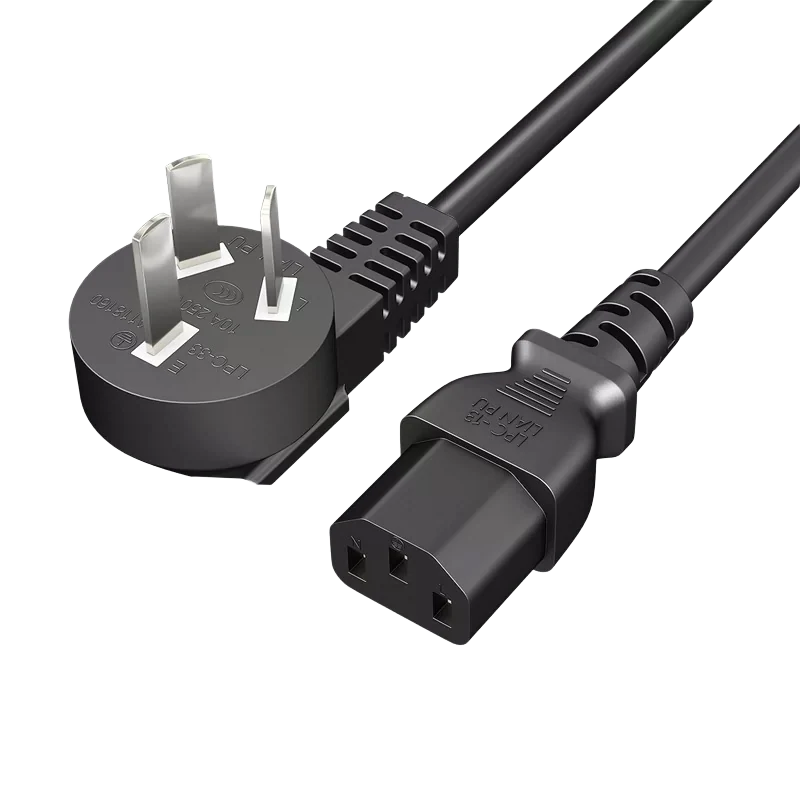

Power Cord, S3p (TWN) to C13 plug, 1.5 m (LS-C13-1.5)
Model LS-C13-1.5
- Length1.5 m
- End AS3p (TWN)
- End BC13 plug
- Diameter7.0 mm
- Max. voltage125 VAC
- JacketPVC
$39.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Power Cord, S3p (TWN) to C13 plug, 1.5 m. AC power cord for use with power adapters and switching power supplies; available in multiple specifications
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-C13-1.5 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | S3p (TWN) |
|---|---|
| End B connector | C13 plug |
| Cable diameter | 7.0 mm |
| Cable mechanical | VCTF 3X0.75mm2 |
| Cable color | Black |
| Connector durability | 3000 mating cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C ~ 70°C |
|---|---|
| Certification | CNS |
Electrical
| Max. voltage | 125 VAC |
|---|---|
| Max. operating current | 7 A |
Mechanical
| Length | 1.5 m |
|---|---|
| Max. ±60° bending cycles | 5000 times |
| Shipping weight (estimated) | 0.31 kg |
