Machine vision lenses

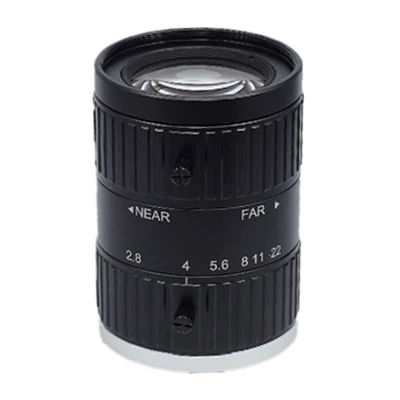

75mm, F2.8, 1", 12MP Lens, C-Mount (LS-KF7528M-12MP)
Model LS-KF7528M-12MP
- Focal length75 mm
- MountC-mount
- Sensor1"
- ApertureF2.8 to F22
$209.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.36 kg shipping weight
Volume pricing, Net 30 or a formal quote?
75mm, F2.8, 1", 12MP Lens, C-Mount. Provides high resolution and consistency of image clarity. Provides low distortion and high peripheral brightness ratio.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KF7528M-12MP |
|---|---|
| Minimum object distance | 0.5 m |
Optics
| Focal length | 75 mm |
|---|---|
| F-number | F2.8 to F22 |
| Image size | Ø16 mm (1") |
| Optical distortion | 0.75% |
| Field of view | D (15.86 mm): 12.2°; H (12.45 mm): 9.8°; V (9.83 mm): 7.3° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M39 × 0.5 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

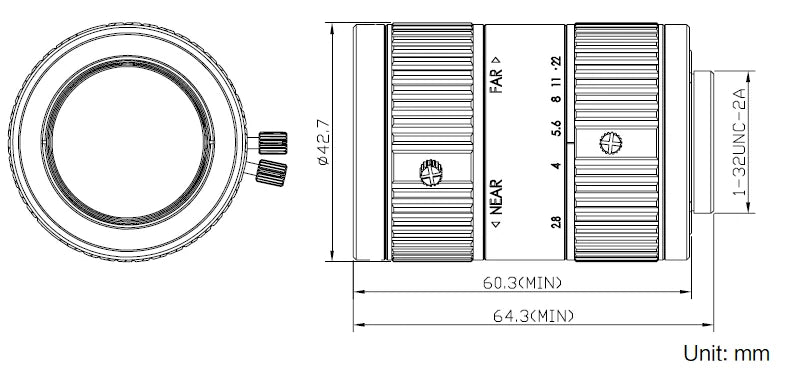

| Dimension | Ø42 mm × 60.3 mm (Ø1.7'' × 2.4'') |
| Weight | 187 g (0.4 lb.) |
| Shipping weight (estimated) | 0.36 kg |
