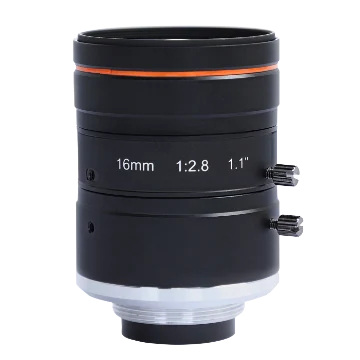

16mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF1628M-12MP)

Machine vision lenses

16mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø38.6 mm × 48.56 mm (LS-KF1628M-12MP)

Model LS-KF1628M-12MP

Focal length16 mm
MountC-mount
Sensor1.1"
ApertureF2.8 to F16

$209.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.3 kg shipping weight

Volume pricing, Net 30 or a formal quote?

16mm, F2.8, 1.1", 12MP Lens, C-Mount. High resolution, high definition of the whole image Low distortion, high illumination relative

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-KF1628M-12MP
Minimum object distance	0.1 m
Close-up with extension tube	5 mm tube: WD 25 mm, magnification -0.396; 2 mm tube: WD 50 mm, magnification -0.246; 1 mm tube: WD 75 mm, magnification -0.178

Optics

Field of view	D (17.52mm): 54.8°; H (14.14mm): 44.9°; V (10.35mm): 33.9°
Focal length	16 mm
F-number	F2.8 to F16
Image size	Ø17.6 mm
Optical distortion	–1.30%
Iris control	Manual
Focus control	Manual
Filter thread	M35.5 × 0.5
Magnification at working distance (mm)	100: -0.139; 150: -0.097; 200: -0.074; 250: -0.060; 300: -0.051; 350: -0.044; 400: -0.038; 450: -0.034; 500: -0.031; 550: -0.028; 600: -0.026; 650: -0.024; 700: -0.022; 750: -0.021; 800: -0.020; 850: -0.018; 900: -0.017; 1000: -0.016
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)	100: 104.30 x 75.52; 150: 149.36 x 108.43; 200: 194.17 x 141.18; 250: 238.86 x 173.85; 300: 283.51 x 206.49; 350: 328.12 x 239.10; 400: 372.71 x 271.70; 450: 417.29 x 304.29; 500: 461.86 x 336.88; 550: 506.42 x 369.46; 600: 550.98 x 402.03; 650: 595.54 x 434.61; 700: 640.09 x 467.18; 750: 684.64 x 499.75; 800: 729.19 x 532.32; 850: 773.73 x 564.88; 900: 818.28 x 597.45; 1000: 907.37 x 662.58
Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm)	100: 91.37 x 71.63; 150: 131.02 x 102.88; 200: 170.45 x 133.96; 250: 209.79 x 164.99; 300: 249.09 x 195.97; 350: 288.36 x 226.94; 400: 327.61 x 257.89; 450: 366.85 x 288.83; 500: 406.08 x 319.77; 550: 445.31 x 350.71; 600: 484.53 x 381.64; 650: 523.75 x 412.56; 700: 562.96 x 443.49; 750: 602.18 x 474.41; 800: 641.39 x 505.33; 850: 680.60 x 536.25; 900: 719.81 x 567.17; 1000: 798.22 x 629.01
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)	100: 61.38 x 51.21; 150: 88.21 x 73.64; 200: 114.91 x 95.95; 250: 141.55 x 118.23; 300: 168.17 x 140.48; 350: 194.76 x 162.71; 400: 221.35 x 184.94; 450: 247.93 x 207.16; 500: 274.50 x 229.37; 550: 301.07 x 251.58; 600: 327.64 x 273.79; 650: 354.20 x 296.00; 700: 380.77 x 318.21; 750: 407.33 x 340.41; 800: 433.89 x 362.62; 850: 460.45 x 384.82; 900: 487.01 x 407.03; 1000: 540.12 x 451.43

Environment and compliance

Temperature	–10°C to 50°C (14°F to 122°F)
Certification	RoHS 2.0

Mechanical

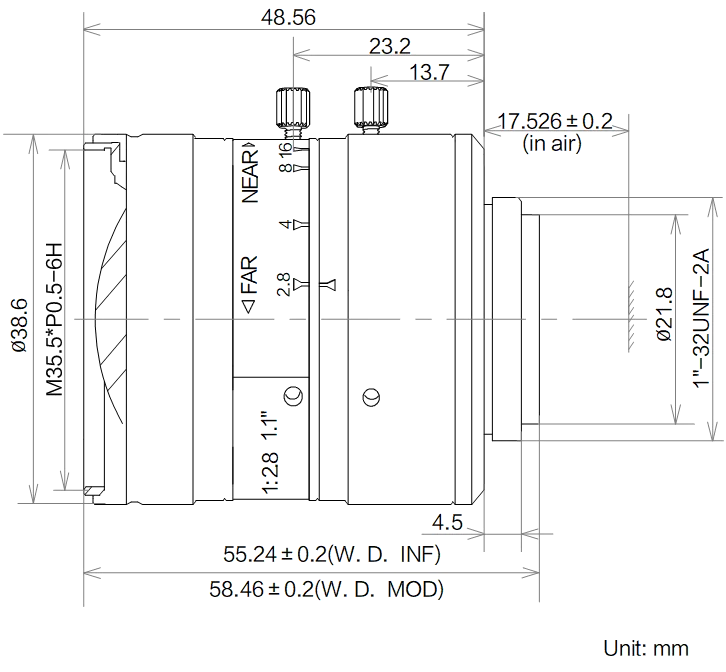

Dimension	Ø38.6 mm × 48.56 mm (Ø1.5" × 1.9")
Weight	146 g (0.3 lb.)
Mount	C-mount
Flange back length	17.526 mm
Shipping weight (estimated)	0.30 kg
