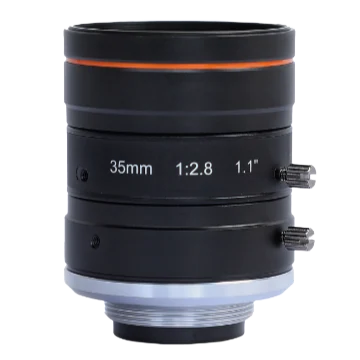

35mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF3528M-12MP)
  • 35mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF3528M-12MP)

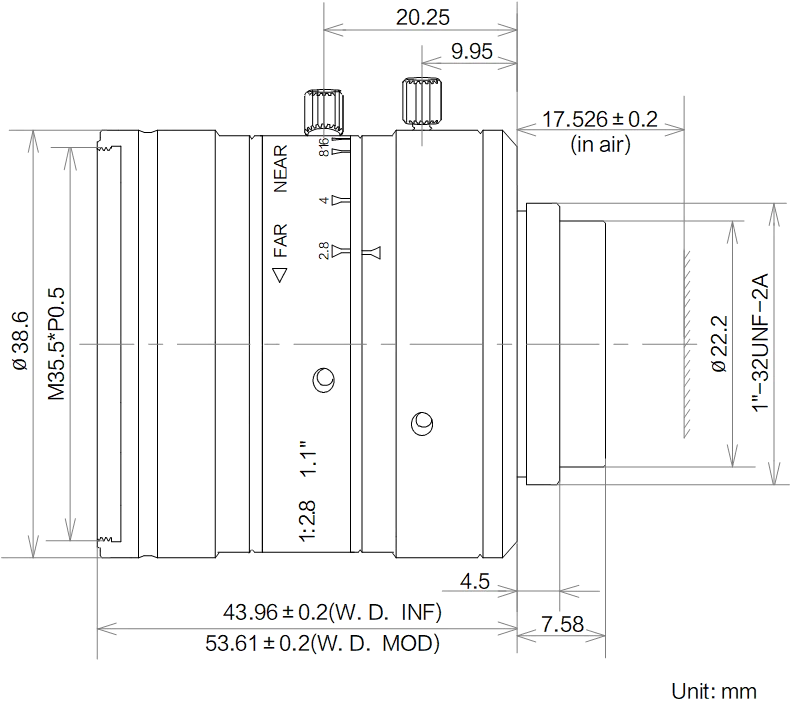

  • LS-KF3528M-12MP dimensions (mm)

Machine vision lenses

35mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø38.6 mm × 53.61 mm (LS-KF3528M-12MP)

Model LS-KF3528M-12MP

  • Focal length35 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8 to F16
$209.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.27 kg shipping weight

Volume pricing, Net 30 or a formal quote?

35mm, F2.8, 1.1", 12MP Lens, C-Mount. High resolution, high definition of the whole image Low distortion, high illumination relative

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KF3528M-12MP
Minimum object distance0.2 m
Close-up with extension tube38 mm tube: WD 25 mm, magnification -1.217; 18 mm tube: WD 50 mm, magnification -0.654; 10 mm tube: WD 75 mm, magnification -0.451; 6 mm tube: WD 100 mm, magnification -0.343; 2 mm tube: WD 150 mm, magnification -0.232

Optics

Field of viewD (17.52mm): 26.7°; H (14.14mm): 21.4°; V (10.35mm): 15.9°
Focal length35 mm
F-numberF2.8 to F16
Image sizeØ17.6 mm
Optical distortion–0.21%
Iris controlManual
Focus controlManual
Filter threadM35.5 × 0.5
Magnification at working distance (mm)200: -0.175; 250: -0.139; 300: -0.116; 350: -0.099; 400: -0.086; 450: -0.077; 500: -0.069; 550: -0.062; 600: -0.057; 650: -0.053; 700: -0.049; 750: -0.046; 800: -0.043; 850: -0.040; 900: -0.038; 950: -0.036; 1000: -0.034
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)200: 80.67 x 59.05; 250: 101.51 x 74.30; 300: 122.36 x 89.57; 350: 143.21 x 104.83; 400: 164.06 x 120.09; 450: 184.91 x 135.35; 500: 205.76 x 150.61; 550: 226.62 x 165.88; 600: 247.47 x 181.14; 650: 268.32 x 196.40; 700: 289.17 x 211.66; 750: 310.02 x 226.93; 800: 330.88 x 242.19; 850: 351.73 x 257.45; 900: 372.58 x 272.71; 950: 393.43 x 287.98; 1000: 414.28 x 303.24
Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm)200: 71.03 x 56.08; 250: 89.38 x 70.57; 300: 107.74 x 85.06; 350: 126.10 x 99.56; 400: 144.45 x 114.05; 450: 162.81 x 128.55; 500: 181.17 x 143.04; 550: 199.53 x 157.54; 600: 217.89 x 172.03; 650: 236.25 x 186.53; 700: 254.61 x 201.02; 750: 272.97 x 215.52; 800: 291.33 x 230.01; 850: 309.69 x 244.51; 900: 328.05 x 259.01; 950: 346.41 x 273.50; 1000: 364.77 x 288.00
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)200: 48.21 x 40.33; 250: 60.66 x 50.76; 300: 73.12 x 61.18; 350: 85.58 x 71.61; 400: 98.04 x 82.03; 450: 110.50 x 92.46; 500: 122.96 x 102.89; 550: 135.43 x 113.31; 600: 147.89 x 123.74; 650: 160.35 x 134.16; 700: 172.81 x 144.59; 750: 185.27 x 155.02; 800: 197.73 x 165.44; 850: 210.19 x 175.87; 900: 222.65 x 186.29; 950: 235.11 x 196.72; 1000: 247.58 x 207.15

Environment and compliance

Temperature–10°C to 50°C (14°F to 122°F)
CertificationRoHS 2.0

Mechanical

DimensionØ38.6 mm × 53.61 mm (Ø1.5" × 2.1")
Weight119 g (0.3 lb.)
MountC-mount
Flange back length17.526 mm
Shipping weight (estimated)0.27 kg
