Machine vision lenses

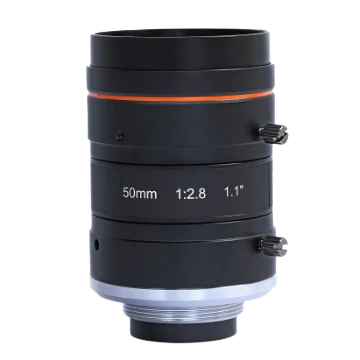

50mm, F2.8, 1.1", 12MP Lens, C-Mount, size Φ38.6×56.8 mm (LS-KF5028M-12MP)
Model LS-KF5028M-12MP
- Focal length50 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.8~F16
$209.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.29 kg shipping weight
Volume pricing, Net 30 or a formal quote?
50mm, F2.8, 1.1", 12MP Lens, C-Mount. High resolution with highly uniform sharpness across the image Ultra-low distortion and high relative illumination
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KF5028M-12MP |
|---|---|
| Minimum object distance | 0.3 m |
Optics
| Focal length | 50 mm |
|---|---|
| F-number | F2.8~F16 |
| Image size | Φ17.6 mm(1.1'') |
| Optical distortion | -0.05% |
| Field of view | D(17.52mm):18.9°; H(14.14mm):15.1°; V(10.35mm):11.2° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5*0.5 |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |

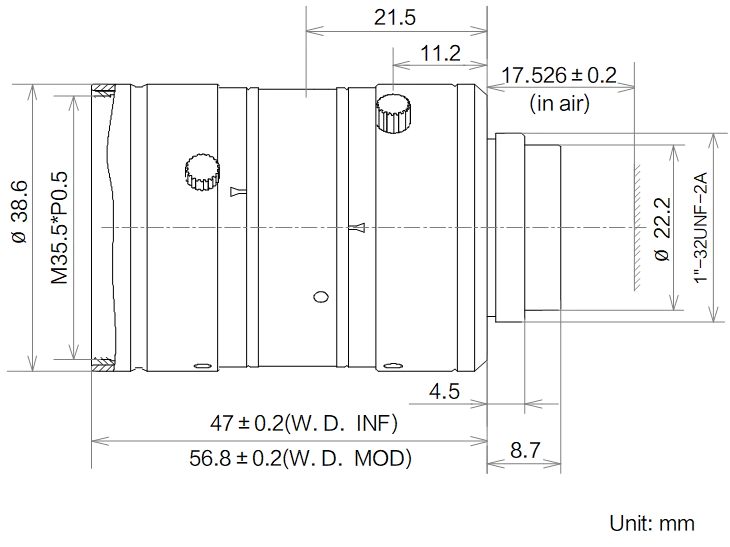

Mechanical
| Flange back length | 17.526 mm |
|---|---|
| Dimension | Φ38.6×56.8 mm |
| Weight | 134 g |
| Shipping weight (estimated) | 0.29 kg |
Other models in the KF series lenses series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-KF0818M-12MP | 8 mm · C-mount | $209.00 | 5 in stock | View |
| LS-KF1228M-12MP | 12 mm · C-mount | $209.00 | 3 in stock | View |
| LS-KF1628M-12MP | 16 mm · C-mount | $209.00 | 3 in stock | View |
| LS-KF3528M-12MP | 35 mm · C-mount | $209.00 | 3 in stock | View |
| LS-KF7528M-12MP | 75 mm · C-mount | $209.00 | 5 in stock | View |
| LS-KF2528M-12MP | 25 mm · C-mount | $209.00 | 4 in stock | View |
| LS-XAC-25250F | 25 mm · C-mount | $209.00 | 5 in stock | View |
| LS-XAC-7512F | 75 mm · C-mount | $209.00 | 3 in stock | View |
