Telecentric lenses

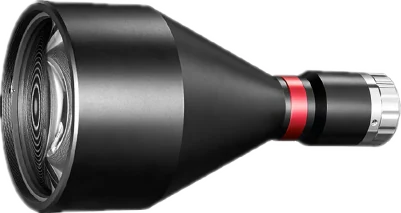

Bi-Telecentric Lens, 0.184x, 208 mm WD, 1" (LS-KBT-0184-208)
Model LS-KBT-0184-208
- Magnification0.184
- MountC-mount
- Sensor1"
- Working distance208 mm
- ApertureF6.5
$2,099.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-Telecentric Lens, 0.184x, 208 mm WD, 1". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KBT-0184-208 |
|---|
Optics
| Magnification | 0.184 |
|---|---|
| Working distance | 208 mm |
| F-number | F6.5 |
| Depth of field | ±18.9 @F16 |
| Distortion | < 0.1% |
| Object-side resolution | 20.1 μm |
| Object-side telecentricity | < 0.1% |
| Image size | 1" |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

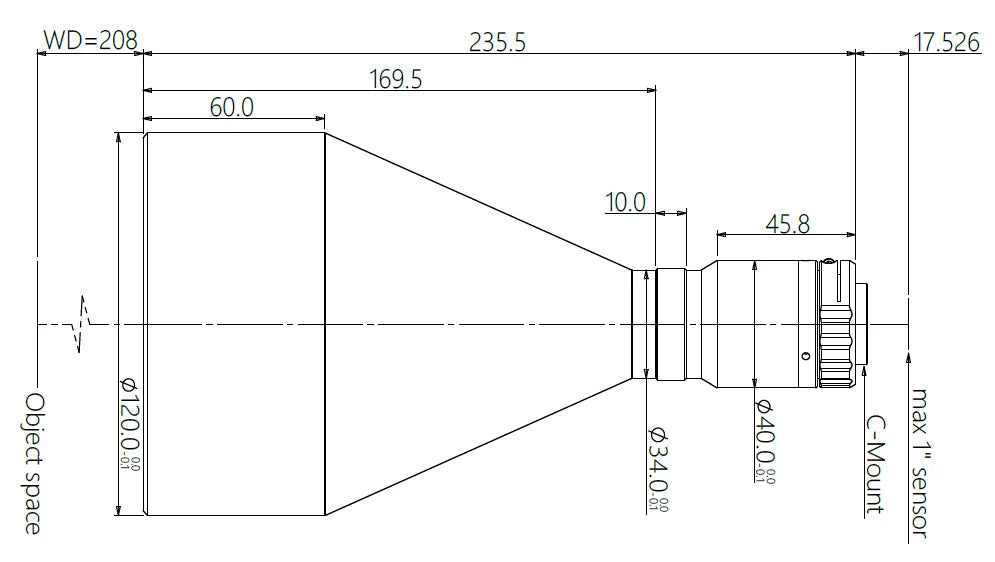

| Dimension | 235.5 mm × Φ120 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
