Telecentric lenses

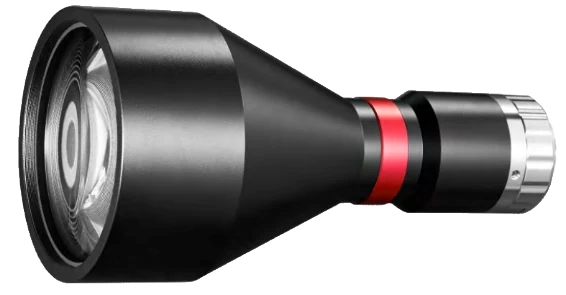

Bi-Telecentric Lens, 0.256x, 178 mm WD, 1.1" (LS-KBT-0256-178)
Model LS-KBT-0256-178
- Magnification0.256
- MountC-mount
- Sensor1.1"
- Working distance178 mm
- ApertureF6.2
$1,649.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-Telecentric Lens, 0.256x, 178 mm WD, 1.1". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KBT-0256-178 |
|---|
Optics
| Magnification | 0.256 |
|---|---|
| Working distance | 178 mm |
| F-number | F6.2 |
| Depth of field | ±6.7 @F11 |
| Distortion | < 0.1% |
| Object-side resolution | 13.5 μm |
| Object-side telecentricity | < 0.1% |
| Image size | 1.1" |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

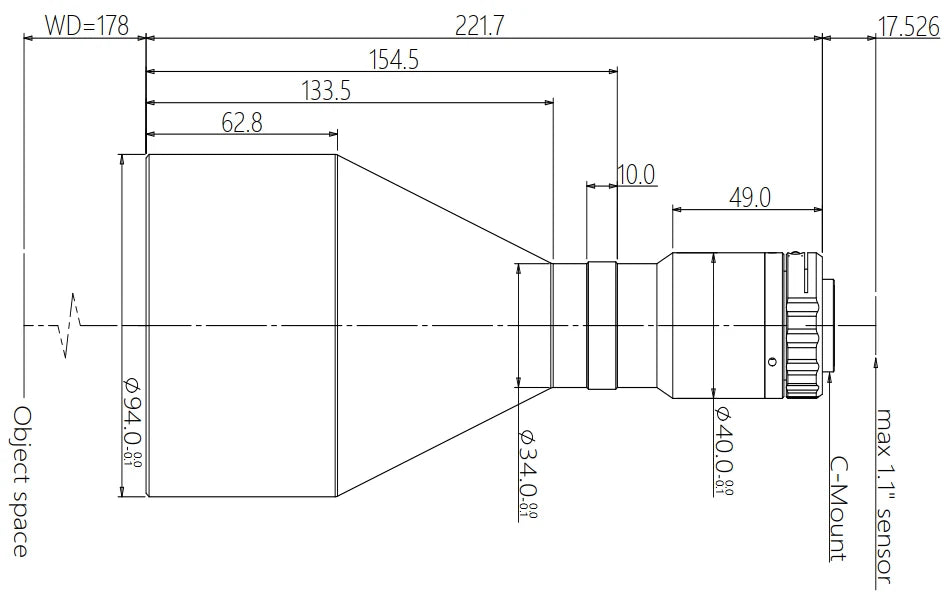

| Dimension | 221.7 mm × Φ94 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
