Telecentric lenses

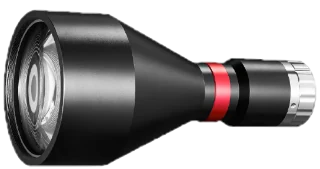

Bi-Telecentric Lens, 0.259x, 158 mm WD, 1" (LS-KBT-0259-158)
Model LS-KBT-0259-158
- Magnification0.259
- MountC-mount
- Sensor1"
- Working distance158 mm
- ApertureF6.5
$1,759.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-Telecentric Lens, 0.259x, 158 mm WD, 1". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KBT-0259-158 |
|---|
Optics
| Magnification | 0.259 |
|---|---|
| Working distance | 158 mm |
| F-number | F6.5 |
| Depth of field | ±9.5 @F16 |
| Distortion | < 0.1% |
| Object-side resolution | 15 μm |
| Object-side telecentricity | < 0.1% |
| Image size | 1" |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

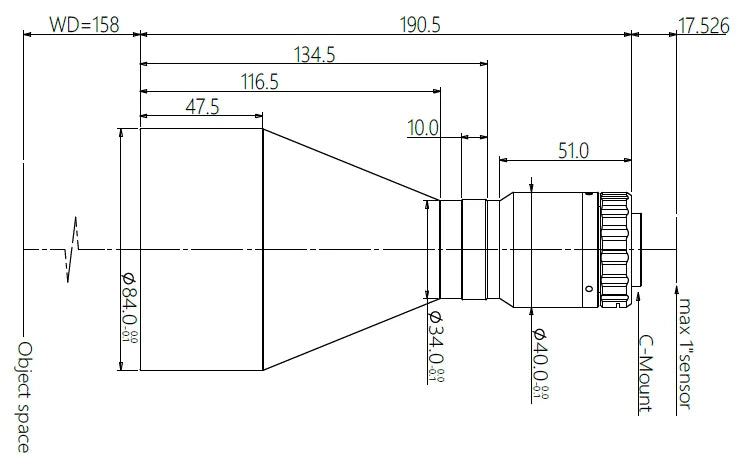

| Dimension | 190.5 mm × Φ84 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
